1. Introduction
In pressure vessel, mold and heavy chemical fastening projects, stud bolts are widely adopted for flange connection. Yet many overseas engineering teams encounter a recurring failure: after assembly passes inspection, the connection loosens gradually after equipment operation. The core cause is improper thread engagement depth on two ends. If the stud screwed into the base is too shallow, thread stripping and pull-out will occur under pressure fluctuation and vibration, leading to seal leakage and costly site rework.
In field failure statistics, a large proportion of pressure vessel flange leakage and mold locking failure are caused simply by wrong engagement depth instead of bolt material defects. Many buyers only check the total length of stud bolts, ignoring the difference between base engagement end and nut fastening end. This article explains the load principle of double-ended threads, sorts out risks of incorrect engagement depth, and gives standard assembly rules for pressure vessels and mold equipment.

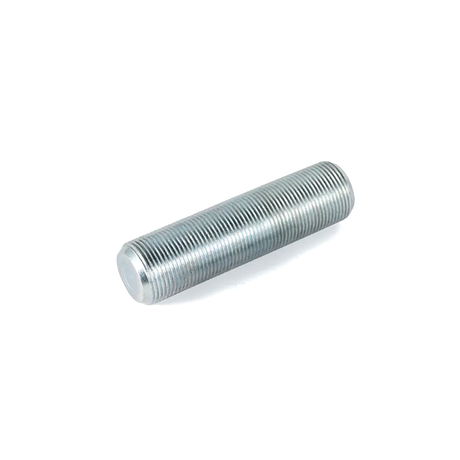

We are NINGBO TOPBOLT METALWORKS CO., LTD., and we supply B7 stud bolts and B16 high temperature stud bolts for overseas heavy industry projects.
2. Load Principle of Stud Bolt Threads
2.1 How Stud Bolts Bear Load
Unlike hex bolts with head, stud bolts have external threads on both ends. One end is screwed into the tapped hole of equipment base, the other end extends out of flange for nut tightening. All loads are transferred by thread engagement length. Insufficient engaged threads will concentrate stress on limited thread teeth and trigger shear stripping.
2.2 Engagement Depth Reference by Base Material
表格
Base Material | Recommended Engagement Depth(Multiple of Nominal Diameter d) | Application Notes |
Carbon Steel | 1.0~1.2d | General pipelines, normal temperature molds; take upper limit for vibration |
Cast Iron | 1.25~1.5d | Cast iron pump & housing; cast thread strength low, shallow engagement forbidden |
Aluminum Alloy | 1.5~2.0d | Aluminum mould; aluminum threads strip easily, enough depth required |
Stainless Steel | 1.0d | Stainless pressure vessel; prevent thread galling with anti-seize compound |
2.3 Two Typical Depth Errors
Base end engagement too shallow: Thread teeth of base will shear under cyclic load, stud bolt pulled out slowly.
Nut side thread length unreasonable: Too short exposed thread leads to insufficient nut engagement; too long exposed thread concentrates stress and causes bolt fracture.
3. Common Wrong Operation: Improper Depth Matching Risks
3.1 Typical On-site Mistakes
Most purchasers only confirm total stud length when ordering, without separating base engagement section and nut side thread length. Fabrication follows full thread rod, which can only be found after on-site assembly. Some workers try to screw the stud all the way to hole bottom blindly.
3.2 Consequences of Wrong Engagement
Thread stripping and stud pullout, pressure vessel flange seal leakage.
Insufficient mold clamping force, flash and production shutdown.
Damaged internal tapped hole of base, expensive rework for hole repair.
Potential safety hazard in high pressure and cyclic thermal working conditions.
4. Standard Assembly Operation Guidelines
4.1 Operation Comparison Table
表格
Method | Operation Steps | Applicable Scenario |
Drawing Parameter Verification | Confirm base engagement length and nut side thread length separately, not only overall length | All pressure vessel & mold projects |
Thread Hole Pre-inspection | Remove iron chips and rust; inspect thread damage before screwing stud | New equipment and overhaul maintenance |
Controlled Screwing | Screw in engagement end vertically, do not hammer or force to hole bottom | Blind tapped hole assembly |
Post-assembly Dimension Check | Measure exposed thread length, verify nut effective engagement turns | ASME overseas heavy industry project |
4.2 Drawing Parameter Verification
Review technical drawings before ordering and machining. Clearly define the thread length for base engagement and fastening end. Total length alone cannot guarantee valid assembly.
4.3 Thread Hole Pre-inspection
Clean debris and corrosion inside tapped hole. Check thread integrity. Apply anti-seize lubricant for stainless thread pair.
4.4 Controlled Screwing
Keep stud perpendicular to base surface during installation. Do not strike with hammer to avoid internal thread damage. Do not force to screw to hole bottom.
4.5 Post-assembly Dimension Check
Recheck exposed thread after assembly. Confirm nut has complete engaged threads. Pressure vessel project requires preload control and test records.
5. Prevention Rules to Avoid Engagement Depth Failure
5.1 Pre-order Selection Standards
Classify two thread segments on drawing, specify the engagement depth based on base material.
For aluminum and cast iron base, increase engagement depth due to low thread strength.
For ASME pressure vessel project, follow ASME B16.5 thread engagement requirements.
Keep threads clean, burr and grit will accelerate thread stripping under load.
5.2 Heavy-duty Working Condition Rules
For pressure vessel and mold equipment with cyclic vibration and pressure fluctuation, choose B7 or B16 high temperature stud bolts. Keep assembly inspection records for overseas customer acceptance. Do not reuse studs whose thread teeth have deformation.
6. FAQ
Q1: Must the stud bolt be screwed all the way to the bottom of blind hole? A1: No. Residue at hole bottom will cause uneven thread stress. Tighten according to standard engagement depth instead of touching hole bottom.
Q2: Why aluminum alloy base requires longer engagement depth than carbon steel? A2: Aluminum internal thread has lower shear strength. Longer engagement can disperse stress and avoid thread stripping.
Q3: Does ASME pressure vessel project have mandatory requirement for stud engagement depth? A3: ASME B16.5 specifies requirements for flange stud thread engagement. Check with project specification instead of simple empirical experience.
Q4: What stud bolt should be selected for high pressure vessel? A4: B7 stud bolt is widely used for general high pressure vessel. B16 high temperature stud bolt is recommended for high temperature and creep working condition. We at NINGBO TOPBOLT METALWORKS CO., LTD. provide full set stud bolt and heavy hex nut solutions.
