What Causes A Flat Washer To Bend, Dish, Or Crack?

A flat washer should stay flat while spreading clamping force. Yet some washers bend, dish, or crack after tightening. Those failure shapes do not always share the same cause. Each one can point to a different problem inside the joint. Excessive bearing stress, poor support, wrong hardness, or low thickness can deform a washer. Misalignment, vibration, and material defects can also contribute. This damage may reduce bearing area and retained bolt preload. It can also harm the clamped surface or signal an unsuitable washer. In this article, you will learn how to distinguish each failure pattern, identify likely causes, inspect the joint, and prevent the problem from returning.

Why a Flat Washer Bends, Dishes, or Cracks

Most washer failures begin when local stress becomes too high. The washer may not have enough strength or support. The joint geometry may also concentrate force into a small area.

Bending and Dishing Usually Mean Excessive or Uneven Bearing Stress

A flat washer carries compressive force beneath the nut or bolt head. Ideally, this force spreads across a stable bearing surface. The washer remains flat because the material beneath it provides continuous support. Problems begin when this support becomes uneven.

A washer may bend when one side carries more force. It may also bend when part of its outside diameter extends over an unsupported area. This creates a small plate-like bending condition.

Dishing is more localized. The washer develops a shallow cup around its center. The center may move downward toward the bolt hole. The outer edge may remain almost unchanged.

Several conditions can create this pattern:

• Excessive bolt preload: The bearing pressure becomes greater than the washer can resist.

• Low washer hardness: The material yields beneath the nut or bolt head.

• Insufficient thickness: A thin washer flexes more easily under load.

• Poor surface support: Part of the washer spans a gap or damaged hole.

• Small bearing contact: Force becomes concentrated into a narrow contact zone.

Torque alone does not explain every deformed washer. Two joints can use the same torque setting. Yet their washers may experience very different stress levels. Lubrication changes the relationship between torque and preload. Thread condition can also change it. Washer dimensions and hardness then determine how that preload reaches the joint.

Cracking Usually Indicates a More Severe Stress Condition

Cracking is different from ordinary plastic deformation. A bent washer has changed shape but remains continuous. A cracked washer has experienced actual material separation. Cracks often begin near areas of concentrated stress. The inner diameter is one common location. Edges created during punching can also become initiation points.

Possible causes include:

• very high localized pressure;

• sharp or damaged washer edges;

• excessive hardness and low ductility;

• unsuitable heat treatment;

• repeated bending during service;

• corrosion pits that reduce local section strength;

• pre-existing manufacturing defects.

A soft washer may dish before it cracks. A very brittle washer may behave differently. It can develop a fracture before showing much visible deformation. This distinction helps during failure analysis. A smooth dish suggests yielding. A sharp crack with little surrounding deformation deserves closer material inspection.

How Washer Hardness and Thickness Affect Deformation

Washer size alone does not determine its load capacity. Hardness and thickness are equally important. A large washer can still deform when it is too soft. A hard washer can also fail when it is too thin for the unsupported span.

A Washer That Is Too Soft Can Yield Under High Clamp Load

Bolt preload creates compressive pressure beneath the bearing face. A suitable washer must resist that pressure without excessive permanent indentation. When washer hardness is too low, the metal can yield. The area beneath the nut may sink. The washer may become slightly conical.

This matters because washer deformation can contribute to joint settlement. The bolt may lose some retained preload after assembly. The risk becomes more important when high-strength fasteners are used. These bolts can create substantial clamp loads. A general-purpose soft washer may not suit the same joint.

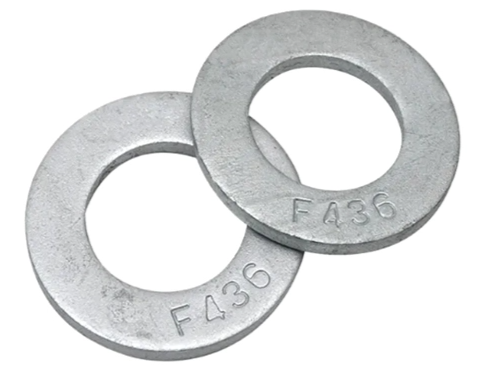

ASTM F436/F436M addresses hardened steel washers for mechanical and structural fastening applications. The specification includes chemical, mechanical, dimensional, and hardness requirements. This is why an ASTM F436/F436M flat washer serves a different role from many general-purpose washers. It is intended for applications where washer mechanical properties must match demanding fastening conditions.

However, hardness should not be viewed alone. Excessive hardness can reduce ductility under some material conditions. The correct specification balances hardness, strength, and dimensional requirements. At Topbolt, we supply flat washer options including 100 HV, 200 HV, and 300 HV levels. Our current range also includes ASTM F436/F436M, SAE USS, and DIN flat washers.

Thickness Controls Resistance to Bending

Thickness strongly affects washer stiffness. A thin washer bends more easily across an unsupported area. Imagine a washer sitting over an oversized hole. Its inner section is not fully supported. Tightening pushes the washer toward that opening. A thicker washer generally resists this bending better. However, thickness must still match the joint design and governing standard. Outer diameter also matters. A wider washer can spread pressure across more surface area. Yet a large outer diameter does not automatically prevent dishing.

The key factors work together:

• washer thickness;

• washer hardness;

• outside diameter;

• inside diameter;

• nut bearing diameter;

• bolt head bearing diameter;

• hole size beneath the washer.

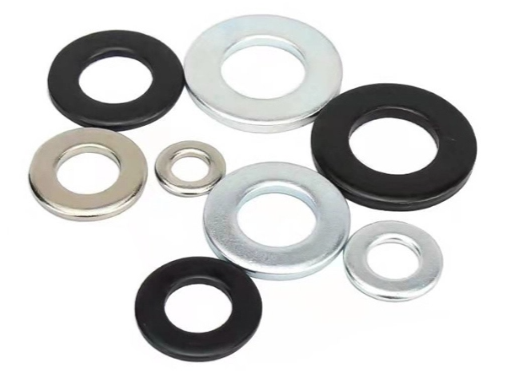

This is important when considering a DIN125A/DIN9021 flat washer. DIN 9021 designs use a larger outside diameter than many standard flat washer forms. That larger footprint can improve coverage. However, extra diameter does not correct every problem. A washer can still dish when its thickness, material, or support condition is unsuitable.

How Poor Support and Hole Geometry Cause a Washer to Dish

Many washer failures begin beneath the washer rather than inside it. The joint may have an oversized hole. It may contain a slot or damaged edge. The surface may also be uneven. These conditions reduce the area supporting the washer.

Oversized and Slotted Holes Leave Part of the Washer Unsupported

A washer performs best when its lower face rests on a stable surface. If part of the washer spans an opening, its behavior changes. The washer starts acting like a small circular plate. Clamp force pushes downward near the bolt. The surrounding joint supports the washer farther outward. The unsupported area between them can flex.

This commonly happens around:

• oversized bolt holes;

• slotted holes;

• elongated holes;

• worn holes;

• damaged plate edges;

• holes placed close to an edge.

An oversized hole deserves special attention. It may provide enough clearance for assembly. However, it can also reduce support close to the washer ID.

ASTM F436/F436M has included extra-thick washer provisions for certain structural applications involving oversized holes. This illustrates why washer geometry and hole condition must be evaluated together. A larger outside diameter can improve coverage. This explains why large-diameter washers are useful in some joints. Yet diameter alone is not enough. The washer still needs suitable thickness and hardness.

A simple cross-section helps explain the difference:

Uneven Contact Creates One-Sided Bending

The washer may also sit on an uneven surface. A burr can lift one side. Weld spatter can create a high point. Thick paint may prevent full contact. Curved or angled surfaces create similar problems.

When tightening begins, the washer contacts the surface at only a few locations. Pressure becomes concentrated there. The washer then tries to conform to the surface. One side may bend downward. Another area may remain almost flat.

Common installation conditions include:

• a washer partly resting on an edge;

• a washer contacting a fillet or radius;

• a bolt entering the hole at an angle;

• a nut sitting slightly tilted;

• debris trapped beneath the washer;

• uneven coating thickness.

This type of failure is often easy to misdiagnose. The washer may appear weak. In reality, the supporting surface caused the deformation. Installing a harder washer may hide the symptom temporarily. It does not correct the underlying geometry.

How Over-Tightening, Misalignment, and Service Loads Damage Washers

Some washer damage appears immediately during installation. Other failures develop slowly during service. Knowing when the deformation appeared helps narrow the cause.

Excessive or Uneven Tightening Can Permanently Deform the Washer

Increasing tightening torque generally increases bolt preload under controlled conditions. That greater preload also raises bearing pressure. Eventually, the washer may reach its yield limit. This does not mean every deformed washer was simply “over-torqued.” Torque is only an indirect method of creating bolt tension.

Several variables affect the final preload:

• thread lubrication;

• surface coating;

• thread condition;

• bolt grade;

• nut condition;

• tightening method;

• friction beneath the nut.

Impact tools can make control more difficult. Operators may continue tightening after adequate preload has already been reached. Multi-bolt connections create another issue. Fasteners may not share load evenly during assembly. One bolt can become highly loaded while nearby fasteners remain loose. Its washer may experience higher local stress.

Visible deformation directly after installation usually points toward one or more of these areas:

1. incorrect washer selection;

2. excessive clamp load;

3. uneven bearing contact;

4. inadequate surface support.

A technician should review the complete assembly before changing the washer specification.

Service Movement Can Turn Deformation Into Cracking

A washer may survive installation but fail later. Vibration, impact, and transverse movement can repeatedly change the load. Thermal expansion can do the same.A washer already bent during assembly becomes more vulnerable. Repeated movement concentrates stress near the damaged region.

The inner diameter often receives particular attention. It sits near the bolt shank and primary bearing zone.Small cyclic movements can produce repeated bending. Over enough cycles, a crack may start.

This creates three useful failure timelines:

• Immediate bending: Often linked to installation or poor support.

• Progressive dishing: Often linked to settlement or continuing bearing pressure.

• Later cracking: May indicate repeated movement or cyclic stress.

Do not assume every service crack began during manufacturing. The surrounding joint often provides useful evidence. Look for polished contact marks. Check for fretting around the hole. Inspect whether neighboring washers show similar damage. These signs can indicate movement after assembly.

How Material and Manufacturing Problems Can Cause Cracking

Joint geometry should be checked first. However, some failures do originate from washer material or production conditions. Repeated failures from the same batch deserve closer investigation.

Excessive Hardness or Edge Defects Can Reduce Failure Margin

A washer needs enough hardness to resist bearing pressure. It also needs suitable toughness for the application. If the material condition becomes too brittle, stress may produce cracking rather than controlled deformation. Heat treatment can influence this behavior. Poor control may create inconsistent hardness across production lots.

Stamped washer edges also matter. The inner diameter is normally produced through punching or similar forming operations. Poor edge quality can create burrs, tears, or local irregularities. These features become stress raisers. Under high clamp load, a crack may begin at one of these locations. Cyclic loading can then extend it farther. Corrosion can create another local weakness. Surface pits reduce effective material thickness. They also create sharp stress concentrations.

However, normal surface corrosion should not automatically be blamed. Inspect the crack origin before drawing conclusions.

The most useful questions include:

• Did the crack start at the inner edge?

• Is there a visible burr?

• Is the washer unusually hard or brittle?

• Do several washers show the same crack pattern?

• Did all failed washers come from one batch?

• Is corrosion concentrated near the crack?

These observations help separate a washer-quality problem from a joint-design problem.

Failure Location Provides Important Diagnostic Clues

The shape and location of damage often reveal the loading condition. A uniform shallow dish suggests broad bearing pressure. A one-sided bend suggests uneven support. A crack near the inside diameter may point toward concentrated local stress. It may also involve poor edge quality. An outside-edge crack deserves a different review. The washer may have been bending across an unsupported region.

Repeated identical cracks across several washers are especially important. They may justify hardness testing or dimensional inspection. A single failed washer in one unusual joint suggests another path. Start by checking that specific installation.

The following table provides a practical first review:

This table is a starting point, not a final diagnosis. Several causes may exist in the same joint.

How to Diagnose and Prevent Repeat Washer Failure

Replacing a damaged washer is easy. Preventing the same failure requires finding the cause. Start by preserving the failed part. Do not flatten or grind it before inspection.

Inspect the Complete Joint Before Replacing the Washer

A practical inspection can follow this sequence:

1. Identify the failure shape. Record bending, dishing, cracking, or mixed damage.

2. Locate the damaged area. Compare it against the bolt head, nut, and hole.

3. Measure the washer. Confirm inside diameter, outside diameter, and thickness.

4. Verify hardness requirements. Check the specified washer grade or applicable standard.

5. Measure the hole. Look for oversize, slotting, wear, or elongation.

6. Inspect the bearing surface. Find burrs, paint buildup, weld spatter, or curvature.

7. Review the fastener. Confirm bolt grade, nut type, and bearing dimensions.

8. Review tightening records. Check torque settings and assembly procedures.

9. Inspect service evidence. Look for fretting, movement, corrosion, and looseness.

This sequence prevents one common mistake. Buyers sometimes specify a thicker washer immediately after a failure. That solution may work in some cases. It may also leave the real problem untouched.

Correct the Cause Instead of Installing the Same Washer Again

The corrective action should match the actual failure mechanism. If the washer is too soft, use the required hardness. If the hole is oversized, improve the washer support or use the specified structural arrangement. If the surface is uneven, correct the bearing surface. If preload is excessive, review the tightening procedure. If the washer repeatedly cracks, inspect its hardness and edge condition. Batch testing may also be justified. Different washer standards serve different application needs.

An SAE USS flat washer may suit many mechanical or construction assemblies. DIN 125A provides another common dimensional form. DIN 9021 offers greater outside diameter for increased surface coverage. ASTM F436/F436M covers hardened steel washers used in demanding mechanical and structural fastening applications. ASTM identifies hardness and dimensional requirements as part of the specification.

These products should not be treated as interchangeable only because they fit the same bolt diameter. At Topbolt, we offer SAE USS, DIN 125A/DIN 9021, and ASTM F436/F436M washer options alongside customized sizes, materials, and finishes. This allows us to match washer geometry more closely to the actual joint requirement.

A final purchasing checklist can reduce repeat failures:

• Is the washer standard correct for the fastener?

• Can its hardness support the expected preload?

• Is its thickness adequate for the hole geometry?

• Does the outside diameter provide enough coverage?

• Is the supporting surface flat and clean?

• Does the tightening process control preload reliably?

• Will the joint experience vibration or cyclic movement?

Procurement teams should confirm these points before approving a substitute washer. A dimensional match alone does not guarantee equal performance.

Conclusion

A bent or dished washer usually shows excessive bearing load or poor support. Cracking often points to stress concentration, material problems, or repeated service loading. Washer appearance alone cannot confirm the root cause. Check hardness, thickness, diameter, hole geometry, surface support, and bolt preload together. Inspect the complete joint before choosing a thicker or harder washer. The correct flat washer should match the entire bolted connection. Ningbo Topbolt Metalworks Co., Ltd. provides flat washers in different standards, hardness levels, sizes, and finishes. These options help customers improve load distribution, joint reliability, and application fit.

FAQ

Q: Why does a flat washer bend after tightening?

A: A flat washer can bend when bolt preload creates excessive or uneven bearing stress. Low hardness, insufficient thickness, poor surface support, or an oversized hole can increase deformation risk.

Q: What causes a flat washer to become dished or cupped?

A: A flat washer may become dished when concentrated clamp force pushes it into an unsupported area. Oversized holes, soft material, or inadequate thickness are common causes.

Q: Why can a flat washer crack instead of simply bending?

A: A flat washer may crack when high local stress combines with brittle material, edge defects, repeated loading, or poor support. Cracking deserves closer inspection than simple plastic deformation.

Q: Can using the wrong washer hardness cause deformation?

A: Yes. A washer that is too soft can yield under high-strength fasteners. Hardened options, such as an ASTM F436/F436M flat washer, better resist demanding bearing loads.

Q: Should a bent or cracked washer simply be replaced?

A: Replacement alone may not solve the problem. Inspect hole geometry, bolt preload, surface flatness, washer hardness, and service movement before fitting another SAE USS or similar washer.
