1. Introduction
DIN6914 wide across flats high-strength bolts and matched DIN6915 heavy hex nuts form the standard HV preloaded connection system for European steel construction. Widely accepted mass production versions are DIN 6914:1989 and DIN 6915:1999, compliant with DIN 18800 steel structure design codes, applied in factory frames, bridges, wind turbine supports and heavy machinery load-bearing joints.

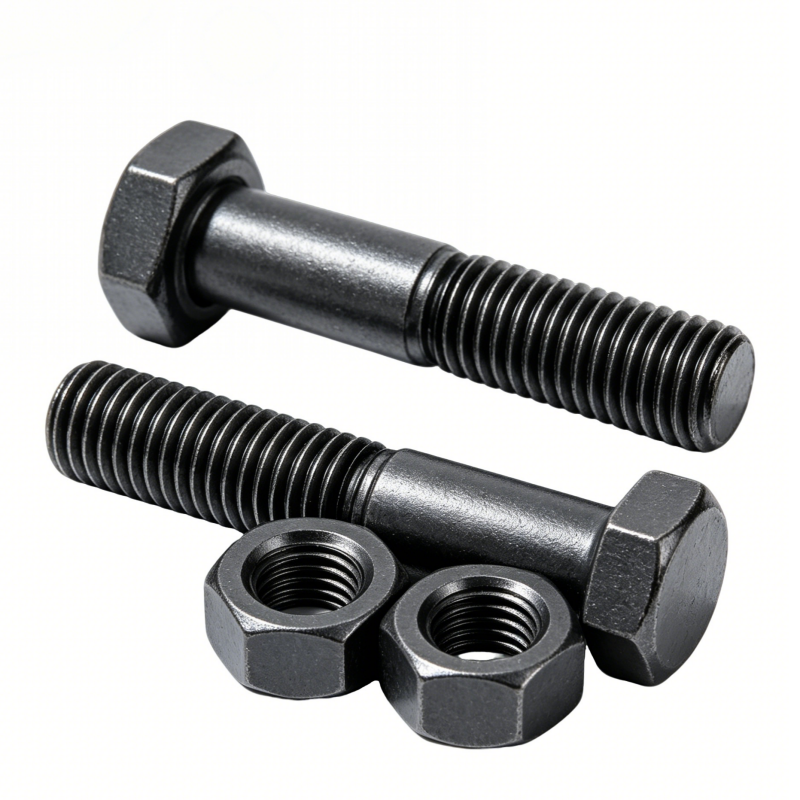

DIN6914 HV Structural Bolt features enlarged hexagon flats to bear higher tightening torque with less slipping, partial short thread design to improve anti-slip performance of steel joints. It can only be matched with DIN6915 Heavy Hex Structural Nut; mixing with standard DIN931/DIN934 fasteners will cause insufficient preload, thread collapse and structural slip during third-party inspection. This professional sourcing guide is compiled by the TOPBOLT technical team, with 15 years of experience supplying DIN HV fasteners to European infrastructure and wind power projects, covering dimension charts, grade matching, washer rules, torque installation, failure analysis and export inspection standards.
2. Standard & Structural Features of DIN6914 & DIN6915
2.1 Valid Mass-Production Standards & Size Range
1. DIN6914 Structural Bolt (stable edition DIN 6914:1989): Thread sizes M12-M27, length 30mm~165mm, partial thread construction;

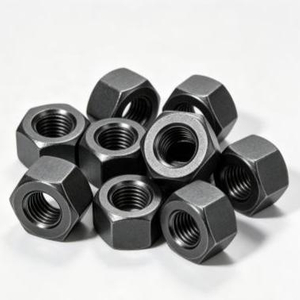

2. DIN6915 Matching Heavy Nut (stable edition DIN 6915:1999): Matches M12-M27 DIN6914 bolts with wider flats and thicker nut body;
3. Full HV assembly set: DIN6914 bolt + DIN6915 nut + DIN6916 structural washer, aligned with EN 14399-4 European structural fastener specification.
2.2 Key Dimension Comparison vs Ordinary DIN931/DIN934
Fastener Set | Width Across Flats s | Nut Thickness m | Thread Length | Application Type |
DIN6914 + DIN6915 HV Set | 2~4mm wider | Thickened for high load | Short partial thread | Preloaded heavy steel structure joints |
DIN931 + DIN934 Standard Set | Regular standard size | Standard thin nut | Long full thread | Light-load general machinery assembly |
Core advantage: Larger contact area under torque wrench avoids slipping during final tightening; thicker nut prevents thread crushing under high preload; short thread ensures full shank contact with steel plates for superior slip resistance.
3. Material & Strength Grade Selection Guide
3.1 Main Carbon Steel High Tensile Series
DIN6914 Bolt: Class 10.9 Quenched & tempered 42CrMo alloy steel, min tensile strength 1040MPa, standard for factory steel frames and wind turbine supports;
DIN6915 Nut: Class 10 Matched tempered carbon steel with balanced hardness to avoid one-sided thread failure under alternating load;
Warning: Do not pair Class 8.8 bolts with Class 10 DIN6915 nuts; hardness mismatch will lead to premature nut thread stripping.
3.2 Matching Surface Finish Options
Black Phosphide Finish (Indoor Factory Standard): Zero coating interference, stable friction torque, ideal for dry indoor load-bearing steel structures;
Hot Dip Galvanized HDG (Outdoor Exposed Steelwork): Bolts and nuts galvanized as full sets, nuts over-tapped to compensate coating thickness for bridge and wind base construction;
Mechanical Zinc / Dacromet (Mild Coastal Corrosion): Hydrogen-embrittlement free, superior salt spray resistance vs electroplating for offshore light steel frames.
Critical Restriction: Class 10.9 DIN6914 bolts must avoid regular electro-galvanizing; hydrogen embrittlement causes delayed fracture under long-term vibration load.
4. Mandatory Matching Washer Standard (DIN6916)
Washers cannot be omitted in HV preloaded connections; DIN6916 thick structural washers replace thin DIN125 flat washers:
1. DIN6916 features increased thickness and bearing area to disperse tightening pressure and prevent indentation on steel plate surface;
2. Standard assembly sequence: Steel substrate → DIN6916 washer → DIN6914 bolt head; opposite steel plate → DIN6916 washer → DIN6915 heavy nut;
3. DIN125 thin washers are not acceptable substitutes; insufficient bearing capacity will cause plate surface depression and reduce joint slip resistance.
5. Standard HV Preload Installation Procedure
1. Full set consistency rule: Each joint must use DIN6914 bolts, DIN6915 nuts and DIN6916 washers from identical heat batch and surface finish; mixed grades or coatings are forbidden;
2. Two-stage torque tightening: First pre-tighten to 70% of rated torque, then final torque to full design value; one-step heavy tightening triggers stress concentration and bolt fracture risk;
3. Thread cleaning requirement: Remove grease and metal chips before assembly; anti-seize compound can be lightly applied on HDG threads to prevent galling;
4. Acceptance inspection: Clear grade marking on bolt head and nut after final tightening, zero gap or offset between connected steel plates qualifies the joint.
6. Main Application Industries
1. Industrial Steel Workshop: Portal frame beam-column joints, overhead crane girder HV preloaded connections;
2. Wind Power Equipment: Turbine base frames, tower support heavy steel structures;
3. Bridge & Transport Infrastructure: Pedestrian overpasses, heavy pipeline support frames;
4. Heavy Mining & Machinery: Mine equipment racks, hydraulic machine load-bearing bases, large machine tool frames.
7. Common Sourcing & Installation Failures & Fixes
1. Replacing DIN6915 with standard DIN934 nuts for DIN6914 bolts Risk: Thin nut body and narrow flats crack under high torque, causing steel joint slip and deformation. Solution: Source complete matched DIN6914+DIN6915 HV sets only, no downgrade substitution allowed.
2. Electroplating treatment for Class 10.9 DIN6914 bolts Risk: Hydrogen embrittlement leads to delayed bolt breakage under long-term vibration, severe safety hazard. Solution: Adopt black oxide, HDG or Dacromet anti-corrosion finishes for high tensile structural fasteners.
3. Using DIN125 thin washers instead of specified DIN6916 structural washers Risk: Concentrated preload pressure creates deep indentations on steel plates and lowers overall joint bearing capacity. Solution: Follow DIN HV connection code with dedicated DIN6916 thick washers for all preloaded joints.
8. Export Certification & Inspection Support
All mass-produced DIN6914 and DIN6915 HV fasteners from TOPBOLT can supply EN 10204 3.1 material test certificates, hardness reports, hydrogen embrittlement and salt spray test records. Third-party SGS & BV sampling inspection is supported, fully complying with DIN 18800 and EN 14399 standards for European steel construction and wind power export clearance.
9. Conclusion
DIN6914 high-strength structural bolts and matched DIN6915 heavy hex nuts form exclusive HV preloaded connection systems for European steel construction, with widened hex flats, thickened nut bodies and short shank thread optimized for heavy, vibrating permanent load conditions. Buyers and construction teams must implement full-set matching rules with dedicated DIN6916 washers, strictly separate from general DIN931/DIN934 fasteners, and standardize grade selection, surface protection and two-stage torque tightening processes to eliminate structural risks including thread cracking, joint slip and hydrogen-induced fracture, ensuring smooth third-party acceptance and long-term structural safety.
10. FAQ
Q1: Can DIN6914 bolts be matched with standard DIN934 hex nuts? A: No. DIN6915 thickened wide heavy nuts are the only compliant match. DIN934 nuts lack sufficient thickness and bearing width, resulting in thread collapse under high preload; substitution is forbidden for HV steel construction.
Q2: Why avoid regular electroplating for Class 10.9 DIN6914 bolts? A: Electroplating introduces hydrogen penetration and embrittlement risk, which causes unpredictable delayed fracture under continuous vibration load. HDG or Dacromet coating is recommended for outdoor projects.
Q3: Is DIN6916 washer mandatory for HV connections? A: Yes. Thick DIN6916 structural washers evenly distribute tightening pressure; thin DIN125 washers indent steel plates and reduce the joint’s slip resistance capacity.
