In the realm of structural engineering, the choice of fasteners is paramount to ensuring the safety and integrity of steel structures. Among the various types of bolts available, A325 bolts and A490 bolts stand out as two of the most commonly used high-strength structural bolts. Understanding the distinctions between these two is essential for engineers, contractors, and construction professionals.
Overview of Structural Bolts
Structural bolts are heavy hex bolts designed to withstand the immense loads and stresses encountered in steel-to-steel connections. These bolts are characterized by their heavy hexagonal heads, shorter thread lengths, and specific material compositions tailored to meet rigorous strength requirements. Both A325 bolts and A490 bolts fall under the ASTM F3125 specification, which encompasses various grades of structural bolts.
Mechanical Properties Comparison
Property
A325 Bolts
A490 Bolts
Tensile Strength
120 ksi (min)
150–173 ksi
Yield Strength
92 ksi (min)
130 ksi (min)
Material Composition
Medium carbon steel
High-strength alloy steel
Core Hardness
Rockwell C24–35
Rockwell C33–38
A325 bolts are made from medium carbon steel, offering a tensile strength of 120 ksi for diameters up to 1 inch. In contrast, A490 structural bolts are crafted from high-strength alloy steel, providing a tensile strength range of 150 to 173 ksi, depending on the specific type. This significant difference in strength makes A490 bolts suitable for applications requiring higher load-bearing capacities.
Coating and Corrosion Resistance
Bolt Type
Galvanization Allowed
Corrosion Resistance
A325
Yes
Moderate
A490
No
High

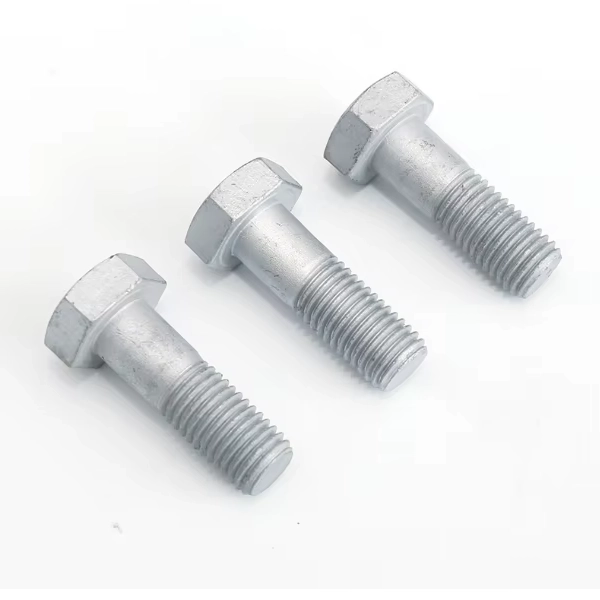

A325 bolts can be hot-dip galvanized, providing enhanced corrosion resistance, especially in outdoor or marine environments. However, A490 bolts cannot be galvanized due to the risk of hydrogen embrittlement during the galvanizing process, which could compromise their strength and integrity. Instead, A490 bolts are often used in environments where their inherent corrosion resistance is sufficient, or additional protective coatings are applied.
Applications and Suitability
A325 bolts are widely used in general structural applications, including bridges, buildings, and other steel structures where moderate strength is adequate. Their ability to be galvanized makes them ideal for environments prone to corrosion.
A490 bolts, with their higher strength, are preferred in applications subjected to heavy loads and stresses, such as high-rise buildings, heavy machinery installations, and critical infrastructure projects. Their use is particularly advantageous when the structural design demands bolts with superior tensile and yield strengths.
Installation and Testing Requirements
Bolt Type
Rotational Capacity Test
Magnetic Particle Test
Reuse Allowed
A325
Yes (for galvanized)
No
Yes
A490
Yes
Yes
No
A325 bolts require a rotational capacity test when galvanized to ensure they can develop the necessary tension during installation. A490 bolts, due to their higher strength, undergo a magnetic particle test to detect any subsurface flaws or cracks. Additionally, A490 bolts are not recommended for reuse, unlike A325 bolts, which can be reused if not previously loaded.
Summary of Key Differences
Feature
A325 Bolts
A490 Bolts
Tensile Strength
120 ksi (min)
150–173 ksi
Material
Medium carbon steel
High-strength alloy steel
Galvanization
Allowed
Not allowed
Corrosion Resistance
Moderate
High
Testing Requirements
Rotational capacity test (galvanized)
Magnetic particle test
Reuse
Allowed (if not previously loaded)
Not recommended
Conclusion
Both A325 bolts and A490 bolts play crucial roles in the construction of durable and safe steel structures. The choice between the two depends on specific project requirements, including load-bearing needs, environmental conditions, and cost considerations. Understanding their differences ensures that engineers and construction professionals select the appropriate fasteners for each application, thereby maintaining the structural integrity and safety of the built environment.
