Oil and gas pipelines operate under some of the most demanding conditions in industrial infrastructure. These systems are constantly exposed to elevated internal pressures, significant temperature fluctuations, and chemically aggressive environments such as hydrogen sulfide, CO₂, and saline moisture. In such contexts, the choice of fastening components like threaded rods becomes a critical determinant of safety and operational longevity.
ASTM A193 B7 threaded rods are specifically engineered to meet these rigorous demands. Manufactured from heat-treated chromium-molybdenum alloy steel, B7 rods exhibit exceptional mechanical properties, making them well-suited for high-temperature, high-pressure (HTHP) applications common in pipeline flange connections, valve joints, and pressure vessels.
Key Benefits:
High Tensile Strength: With a minimum tensile strength of 125 ksi, ASTM A193 B7 threaded rods offer outstanding load-bearing capacity, ensuring the structural integrity of critical pressure joints in pipelines.
Temperature Resistance: These rods maintain performance at service temperatures up to 1000°F (537°C), making them ideal for applications in steam lines, heat exchangers, and thermal processing systems.
B7M Variant for Sour Gas: The B7M grade, characterized by lower hardness and increased ductility, is better suited for hydrogen sulfide-rich (sour) environments, reducing the risk of sulfide stress cracking in gas transmission systems.

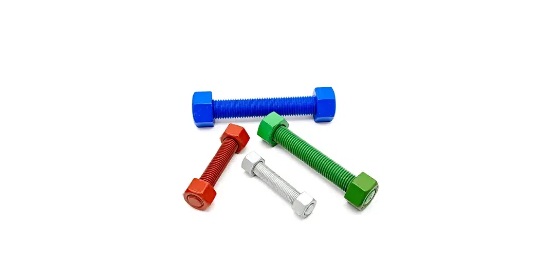

Corrosion Protection Options: B7 threaded rods are frequently coated with zinc, PTFE (polytetrafluoroethylene), or hot-dip galvanized to improve resistance against moisture, marine air, and chemical exposure, thereby extending the lifespan of outdoor and offshore pipeline components.
In summary, ASTM A193 B7/B7M threaded rods provide a reliable and cost-effective solution for the oil and gas sector’s most challenging fastening needs. Their strength, temperature resilience, and adaptability to corrosive conditions make them indispensable in the design and maintenance of modern pipeline systems.
Compatibility of SAE J429 Threaded Rods with High-Pressure Equipment
In high-pressure environments such as gas compressor stations, separation units, and petrochemical reactors, mechanical connections are exposed to significant dynamic forces. Selecting the appropriate threaded rod is critical to prevent premature failure. SAE J429 threaded rods, particularly in Grade 5 and Grade 8, offer the high mechanical strength and durability needed for these demanding applications.
Grade 5 threaded rods, with medium tensile strength, are commonly used in mounting valve manifolds, pump skids, and control panel supports where vibration resistance and reliable torque values are essential. Grade 8 SAE J429 threaded rods—heat-treated and rated up to 150 ksi tensile strength—are ideal for flanged connections in pressure vessels, compressor housings, and gas separators.
Compared with ASTM A193 B7 or DIN975/DIN976 threaded rods, SAE J429 rods in imperial sizing allow seamless integration with North American high-pressure fittings and tools. Additionally, their compatibility with torque-calibrated impact wrenches helps maintain precise preload, improving equipment reliability and safety under cyclic load conditions.
Application Example:
In an offshore oil rig in the North Sea, Grade 8 SAE J429 threaded rods were used to fasten casing heads to prevent blowouts. Their superior tensile properties and low risk of thread stripping under cyclic loads made them perfect for harsh sea conditions with constant vibration and torque variation.
Corrosion Resistance and Use of ASTM A193 B8/B8M Stainless Steel Threaded Rods
Corrosion is a critical concern in oil and gas facilities, particularly in coastal refineries, offshore drilling platforms, and sour gas pipelines. In these harsh environments, the selection of the right threaded rod can significantly impact equipment longevity and structural integrity. ASTM A193 B8/B8M threaded rods, manufactured from austenitic stainless steels—Type 304 for B8 and Type 316 for B8M—are specifically engineered to withstand long-term exposure to corrosive agents.
The molybdenum content in B8M threaded rods enhances resistance to chloride stress corrosion cracking, making them ideal for marine and chemical processing environments. Additionally, their non-magnetic properties are advantageous in applications where magnetic interference must be avoided, such as instrumentation supports and sensor installations. Compared to carbon steel alternatives like ASTM A193 B7 or SAE J429 threaded rods, stainless steel options provide superior performance in acidic or saline atmospheres.
Moreover, DIN975 stainless threaded rods in A2 (304) and A4 (316) grades offer similar benefits in metric sizes, ensuring compatibility with international projects. Their long service life and reduced maintenance requirements make them a cost-effective solution for demanding applications.
Application Example:
A gas dehydration plant in Southeast Asia, plagued by corrosion failures in flange fasteners, switched to ASTM A193 B8M rods in their heat exchangers and control valves. After the switch, the plant recorded a 40% reduction in downtime over the following two years.
Project Cases and Selection Guidelines for Threaded Rods
The correct selection of threaded rods involves evaluating mechanical properties, environmental exposure, and standard compatibility. Below are insights from real-world projects and practical guidance on how to select the right type of threaded rod:
Case 1: High-Temperature Pipeline Network
Standard Used: ASTM A193 B7
Environment: Arid desert, 180°C operating temp
Outcome: Maintained seal integrity during thermal expansion cycles
Case 2: Offshore Valve Station
Standard Used: SAE J429 Grade 8
Environment: Marine, high vibration
Outcome: No thread loosening over two maintenance cycles
Case 3: Acid Gas Compressor Facility
Standard Used: ASTM A193 B8M
Environment: Sour gas with H₂S and CO₂
Outcome: Completely resisted pitting and crevice corrosion
Case 4: Skid-Mounted Mechanical Units
Standard Used: DIN975 carbon steel rods with zinc plating
Environment: Indoor mechanical rooms
Outcome: Cost-effective, easy assembly, widely available
Selection Tips:
Choosing the right threaded rod for your project depends on operating conditions, environmental exposure, and structural demands. For high-temperature and high-pressure (HTHP) applications, such as pipeline flange connections and pressure vessels, the ASTM A193 B7/B7M threaded rod is the preferred option due to its superior tensile strength and thermal resistance. When dealing with dynamic loads or mechanical shock, especially in equipment mounting and rotating machinery, SAE J429 threaded rod, particularly Grade 8, offers outstanding performance with its high preload capacity and fatigue resistance.
In highly corrosive environments—such as coastal installations, chemical plants, or offshore rigs—the ASTM A193 B8M threaded rod, made of Type 316 stainless steel, provides enhanced resistance to chloride and acidic attack. For general-purpose applications like framing, formwork, or HVAC support, DIN975/DIN976 threaded rods are ideal thanks to their full-length threading, metric compatibility, and cost-effectiveness. Selecting the right grade ensures long-term performance, safety, and maintenance efficiency across varied industrial sectors.
Conclusion
The oil and gas industry demands components that deliver under pressure—both literally and figuratively. Threaded rods, when manufactured to strict standards and selected with precision, form a critical part of safe and efficient operations.
By understanding the applications and benefits of ASTM A193 B7/B7M, ASTM A193 B8/B8M, SAE J429, and DIN975/DIN976 threaded rods, professionals in the energy sector can make informed decisions that enhance both performance and longevity.
For dependable threaded rod solutions backed by engineering expertise and global service, Ningbo Topbolt Metalworks Co., Ltd. stands out as a premier partner for the industry.
