How To Pick DIN912 Grade For Vibration Mechanical Assemblies

1. Introduction

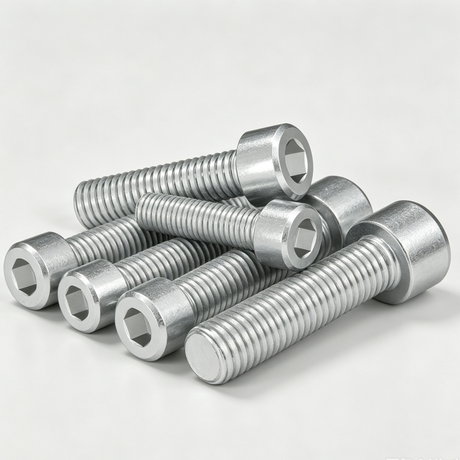

DIN912 socket head cap screws are high-precision fasteners widely used in automated machinery, engineering equipment and automotive electromechanical assemblies. Different from standard hex bolts, their recessed head structure saves installation space and ensures high positioning accuracy for dense and precision connections. Under continuous vibration and alternating load conditions, incorrect DIN912 grade selection often causes screw fracture, thread stripping, joint loosening and equipment displacement.

DIN912 Socket Head Cap Screws are available in 8.8, 10.9, 12.9 high tensile carbon steel grades and A2-70, A4-80 stainless steel corrosion-resistant grades. Each grade features distinct tensile strength, hardness and fatigue resistance and cannot be substituted arbitrarily. Low-grade screws are prone to metal fatigue failure under long-term mechanical vibration.

Compiled by the TOPBOLT technical team with 15 years of high-grade fastener export experience, this article introduces practical DIN912 grade selection rules specifically for vibration machinery, summarizes mechanical performance differences, common failure causes and standardized application solutions, providing reliable sourcing and installation guidance for global mechanical engineering projects.

2. Core Failure Causes of DIN912 Screws Under Vibration Loads

Standard static equipment can adopt ordinary 8.8 grade DIN912 screws, but vibrating machinery bears continuous alternating tension, shear force and resonance impact. Low-grade fasteners usually lead to three typical failures:

1. Insufficient fatigue resistance: Long-term micro vibration accumulates stress and causes rod fatigue fracture;

2. Unmatched hardness: Soft-grade screws loosen gradually under persistent vibration, enlarging thread gaps;

3. Lack of structural toughness: High impact vibration causes brittle cracking and inner hex socket slipping.

Therefore, DIN912 selection for vibrating equipment must be based on strength grade and mechanical performance, not only dimension specifications.

3. DIN912 Grade Mechanical Performance Comparison

The following standard mechanical parameters support accurate grade matching for various vibration working conditions.

4. Practical DIN912 Grade Selection For Vibration Machinery

4.1 Low-frequency Light Vibration Scenarios

Applicable for general automation frames and standard transmission components with stable load and slight vibration. Solution: Adopt Grade 8.8 carbon steel DIN912 screws for cost-effective and reliable daily fastening performance.

4.2 Medium-frequency Regular Vibration Scenarios

Applicable for conveyor machinery, packaging equipment and common motor bases with repeated reciprocating vibration. Solution: Uniformly select Grade 10.9 DIN912 screws to improve anti-fatigue performance and avoid thread loosening caused by long-term vibration.

4.3 High-frequency Heavy-duty Vibration Scenarios

Applicable for precision machine tools, high-speed automation modules and engine assemblies with 24-hour continuous operation and resonance impact. Solution: Only Grade 12.9 DIN912 high-tensile screws are qualified for core heavy-duty positions to eliminate fatigue fracture risks.

4.4 Corrosive Vibration Environments

Applicable for outdoor, humid and chemical machinery with both vibration fatigue and salt spray corrosion risks. Solution: A2-70 for mild corrosive conditions; A4-80 stainless steel DIN912 screws for coastal and heavy corrosive vibrating equipment.

5. Common Selection Mistakes & Fixes

Mistake 1: Universal use by identical dimension Risk: Using 8.8 instead of 12.9 grade on high-vibration core positions causes delayed sudden fracture. Solution: Match grades strictly according to load and vibration intensity; downgrade substitution is forbidden.

Mistake 2: Blindly replacing carbon steel with stainless steel Risk: Ordinary A2 stainless steel lacks sufficient fatigue strength for heavy vibration, inferior to 12.9 carbon steel. Solution: Prioritize 12.9 carbon steel for dry heavy-load vibration scenarios.

Mistake 3: Omit lock washers for vibrating positions Risk: Pure bolt tightening cannot resist continuous vibration, resulting in gradual loosening. Solution: Equip DIN125 flat washers and DIN127 spring lock washers for all high-vibration connection points.

6. Conclusion

The adaptability of DIN912 socket head screws in vibrating mechanical assemblies depends on strength grade and material matching rather than simple dimension specification. Grade 8.8 suits low-frequency light vibration, Grade 10.9 fits medium-frequency general machinery, Grade 12.9 is mandatory for high-frequency precision heavy-duty equipment, and A2-70/A4-80 stainless steel versions target corrosive vibration environments. Standardized grade selection effectively prevents fatigue fracture, thread loosening and mechanical failure, ensuring long-term stable operation of automated and industrial machinery.

7. FAQ

Q1: Can Grade 8.8 DIN912 be used for all vibrating equipment? A: No. Grade 8.8 only supports low-frequency light vibration. High-frequency heavy-duty machinery requires Grade 10.9 or 12.9 for sufficient fatigue resistance to avoid fracture failure.

Q2: Which is better for vibrating machinery, 12.9 carbon steel or A4 stainless steel? A: 12.9 carbon steel provides stronger fatigue resistance for dry heavy-load vibration. A4-80 stainless steel is ideal for humid, salt spray and corrosive vibration scenarios.

Q3: Why does wrong DIN912 grade cause loosening under vibration? A: Low-grade screws have insufficient hardness and fatigue resistance. Long-term vibration creates micro thread slip gaps, gradually expanding and causing joint loosening or falling off.
