Tightening a bolt creates intense pressure beneath the head or nut. That pressure can damage the joint surface if it stays too concentrated. A flat washer provides a wider bearing surface for the clamping force. It spreads the load across more material and reduces harmful pressure peaks. The pressure still does not become perfectly uniform. Washer size, thickness, hardness, and surface contact all affect the result. Poor load distribution can cause indentation, crushing, pull-through, or lost preload. Here, you will learn how force travels through the washer and when that load-spreading effect becomes insufficient.

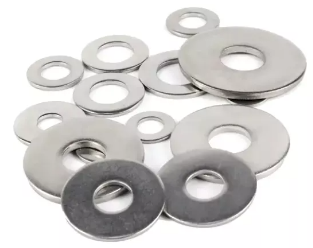

How Does a Flat Washer Spread Bolt Load Across the Joint Surface?
The Load Path From the Bolt Head or Nut Into the Washer
Load distribution starts when the fastener is tightened. Torque applied to the fastener creates bolt tension. That tension produces the clamping force holding the joint together.
Without a suitable washer, the bolt head or nut transfers force directly into the joint surface. Its bearing area may be relatively small. Therefore, pressure becomes concentrated close to the fastener hole.
A flat washer sits between these two surfaces. The fastener presses against the upper washer face. The washer then transfers this compression through its body. Part of the force spreads outward before reaching the joint.
The contact area underneath becomes larger as a result. This creates a wider load-transfer zone around the hole. The washer does not remove the force. It changes where that force enters the connected material.
This distinction matters during joint design. A washer should never be treated as a soft cushion. It is a structural interface between two bearing surfaces.
Why Pressure Becomes Lower but Not Perfectly Uniform
The basic principle is straightforward. The same load creates less average pressure across a larger area. For a simple comparison:
Average bearing pressure = clamping force ÷ effective contact area
Suppose two joints carry similar clamping loads. One uses a small bearing area. The other uses a larger washer. The second joint usually develops lower average surface pressure.
However, actual pressure varies across the washer face. The material does not behave like an ideal mathematical surface. Some areas may carry more force than others.
Several factors affect this pressure pattern:
Washer stiffness: A rigid washer can spread force farther outward.
Joint stiffness: Soft materials deform more easily under compression.
Therefore, “load distribution” does not mean equal pressure everywhere. It means reducing harmful concentration by creating a broader load path.
Why Does a Larger Bearing Area Protect the Connected Material?
Reducing Local Crushing, Indentation, and Surface Damage
Every connected material has limits under compression. If local pressure becomes too high, the surface can deform. The effect may appear as a shallow circular indentation. Severe loading can create permanent crushing around the fastener. Thin or soft materials face an even greater risk.
The washer helps by increasing the contact footprint. More surface participates in supporting the same clamping force. Local stress therefore becomes less concentrated.
This protection matters for many joint materials. Mild steel, aluminum, plastics, timber, coated panels, and thin components can all react differently. Yet the same principle applies.
Surface deformation also affects bolt preload. A bolt may be tightened correctly during assembly. Later, the joint surface can compress beneath the fastener. That small movement reduces bolt stretch. Clamp force may then decrease. A suitable flat washer creates a more stable seating area. It can limit local indentation and improve joint consistency.
Supporting Material Around Clearance, Oversized, and Slotted Holes
Fastener holes also influence load distribution. A hole removes material exactly where the fastener transfers its load. A normal clearance hole leaves a ring of supporting material nearby. An oversized or slotted hole removes more support. Therefore, the remaining material must carry greater local pressure.
A larger washer can bridge more surface around such openings. Its outside diameter places part of the clamping load farther from the hole edge. That creates a wider effective bearing region.
This does not mean every oversized hole needs the largest possible washer. The washer must still suit joint geometry and design requirements. Excessive diameter can create interference or edge problems.
The key question is simple: How much supported material remains beneath the washer? That question is more useful than asking whether a washer merely fits the bolt.
How Do Outside Diameter, Inside Diameter, and Thickness Affect Load Distribution?
Bearing Area Depends on More Than Outside Diameter
Outside diameter strongly affects washer coverage. A wider washer can contact more joint surface. However, outside diameter alone does not define usable bearing area. Every flat washer also has a center hole. That opening removes part of the contact surface.
For a simplified engineering check, the potential annular area can be viewed as:
Effective washer area ≈ outer circular area − inner hole area
This calculation does not predict the exact pressure field. Still, it shows why both OD and ID matter. A large outside diameter paired with an unnecessarily large inside diameter can lose valuable bearing area. Excessive clearance can also allow poor washer positioning.

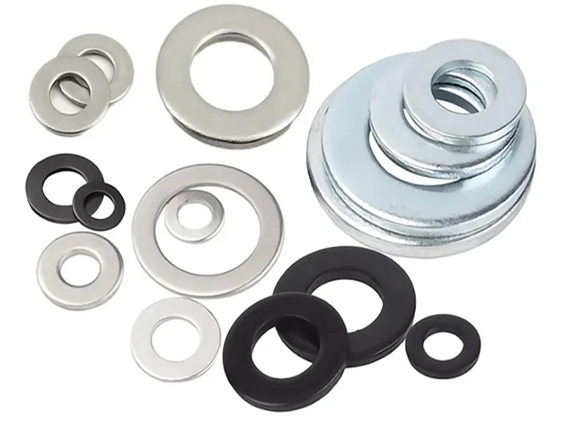

The practical differences become clear across common washer standards. A DIN 9021 washer uses a larger outside diameter than many standard flat washer designs. This gives it more potential surface coverage.
A DIN 125A design has a more conventional outside diameter. It may suit applications where extreme coverage is unnecessary. SAE and USS patterns also use different dimensional proportions.
At Topbolt, we offer DIN 125A/DIN 9021 flat washer products and SAE USS flat washer options for different fastening conditions. The listed range also includes multiple materials, finishes, and dimensions. The correct choice should follow the joint requirement. Standards should not be selected only because their names are familiar.
Thickness Determines Whether the Washer Holds Its Shape
Increasing washer diameter can improve bearing coverage. However, wider does not always mean stronger. A washer must remain sufficiently rigid under load. If it becomes too thin for the application, it may bend. The washer can also begin to dish around the fastener.
Once bending occurs, full-face contact can decrease. Force becomes concentrated closer to certain regions. The intended load-spreading benefit then becomes weaker. Thickness therefore works together with outside diameter. Larger washers may require enough section thickness to transfer force across their wider surface.
Imagine a very wide but paper-thin metal ring. Its theoretical contact area looks excellent. Yet it could flex immediately under strong bolt preload. Now imagine a washer with suitable thickness and hardness. It can maintain a flatter bearing surface. More of its intended contact zone remains useful.
For buyers, this means washer dimensions should be reviewed together.
Washer Feature
Main Effect on Load Distribution
Risk When Unsuitable
Outside diameter
Controls potential bearing coverage
Too small can concentrate pressure
Inside diameter
Defines clearance and usable annular area
Too large reduces useful support
Thickness
Helps maintain washer rigidity
Too thin can bend or dish
Flatness
Supports consistent surface contact
Poor flatness creates pressure peaks
Why Do Washer Hardness and Joint Material Change Load Distribution?
The Washer Must Resist the Fastener's Compressive Load
Geometry provides the potential bearing area. Mechanical properties determine whether that area survives under load. A washer under a highly preloaded fastener experiences strong compression. If the washer is too soft, local deformation can occur beneath the nut or bolt head.
It may indent, cup, or lose flatness. Once its geometry changes, force no longer travels through the intended bearing surface. Local pressure can rise again. This issue becomes more important as fastener strength increases. High-strength bolts can generate significant preload. The washer must support this force without excessive permanent deformation.
That is why hardened washers are used in many demanding connections. Their hardness helps them preserve shape under concentrated bearing forces.
ASTM F436/F436M flat washer products are relevant in this context. Topbolt lists carbon steel ASTM F436/F436M washers alongside other flat washer standards in its washer range. Hardness should still match the actual specification. A harder washer is not automatically better for every joint.
Softer Joint Materials Need More Bearing Support
The washer is only one part of the load path. The joint material underneath it also matters. A thick steel plate can tolerate bearing pressure differently from aluminum sheet. Plastic may deform much sooner. Wood can compress around the hole under sustained loading.
Therefore, the same washer can perform differently across different materials. Consider two joints using identical bolts and clamp loads. One is installed on thick structural steel. The other is installed on a thin, softer panel.
The steel joint may show very little visible indentation. The softer panel may deform around the washer. It may need greater bearing coverage or different joint reinforcement.
Surface coatings also affect contact behavior. Thick paint or soft coatings can compress during tightening. This settlement may reduce retained preload.
Engineers should therefore review the complete load path:
1. Bolt or nut bearing face
2. Washer strength and dimensions
3. Washer-to-joint contact area
4. Joint material strength
5. Material surrounding the hole
Load distribution becomes effective only when these elements work together.
When Does a Flat Washer Fail to Distribute Load Effectively?
Uneven Contact Can Concentrate Load on Part of the Washer
A washer cannot distribute force across a surface it does not contact. Burrs around drilled holes are one common problem. They can lift part of the washer away from the joint. Surface scale can create a similar effect.
Heavy paint buildup may also cause uneven seating. Angled or curved surfaces can prevent full contact from the beginning. When this happens, the effective area becomes smaller than the washer dimensions suggest. Load concentrates around the high-contact regions.
Poor centering creates another problem. This is especially important around oversized or slotted holes. If the washer shifts toward one side, the supported area becomes uneven. Installation quality therefore affects load distribution directly. Washer dimensions alone cannot guarantee good performance.
Undersized, Too-Thin, or Too-Soft Washers Create Different Problems
Several washer problems can produce similar joint symptoms. However, their mechanical causes are different. An undersized washer provides limited bearing coverage. Surface pressure may remain too high. A washer that is too thin may bend under preload. Its outer area may contribute little support. A washer that is too soft may plastically deform. Its shape changes permanently under the fastener. These conditions should not be treated as the same defect. Each requires a different correction.
A simple inspection checklist can help:
Check the surface for washer-shaped indentation.
Look for cupping or permanent washer bending.
Confirm the washer sits fully against the surface.
Inspect burrs around the fastener hole.
Check whether the washer overlaps nearby edges.
Confirm adequate coverage around slots or oversized holes.
Compare washer hardness against the required fastener specification.
Visible deformation often provides useful evidence. However, critical connections may require engineering calculations and specification review.
How Can You Check Whether a Flat Washer Provides Enough Load Distribution?
Start With Clamping Force and Available Bearing Area
A preliminary check can begin with expected bolt clamp force. Then review the available washer bearing area. The simple relationship remains useful:
Average bearing pressure = clamp force ÷ effective bearing area
Suppose a washer provides more effective contact area. The average pressure on the joint surface should decrease. However, this remains a simplified estimate.
Real pressure varies across the surface. Washer bending can change it. Joint material stiffness also changes the pressure pattern. The calculation should therefore be used as a screening method. It helps identify obviously inadequate washer dimensions.
For example, a thin panel may show high estimated bearing pressure. A larger supported area may improve the design. The engineer should then confirm thickness, hardness, edge distance, and joint requirements.
When calculating useful area, do not use the full outside circle. The center hole does not support the joint surface. The actual contact region may also be reduced by slots, nearby edges, surface defects, or clearance holes.
Check the Complete Washer Specification
Purchasing teams often begin by checking bolt diameter. That is necessary, but it is not enough.
The complete review should include:
Bolt or stud diameter
Washer inside diameter
Washer outside diameter
Washer thickness
Material and hardness
Surface finish
Expected bolt preload
Connected material
Hole diameter and shape
Applicable fastening standard
This approach also explains why DIN125A/DIN9021 flat washer, SAE USS flat washer, and ASTM F436/F436M flat washer products should not be treated as interchangeable labels. Their dimensional or mechanical requirements serve different fastening conditions. The joint should determine the washer specification.
At Topbolt, we supply flat washers across several standards, materials, hardness levels, and finishes. Our listed flat washer hardness options include 100HV, 200HV, and 300HV, while product sizes extend across broad metric and inch ranges. For custom projects, dimensional drawings should be reviewed before production. This prevents a common purchasing mistake: receiving washers that fit the bolt but do not support the joint correctly.
Conclusion
A flat washer spreads clamping force across a wider and more stable bearing area. This helps reduce local pressure, surface damage, and preload loss. Its performance depends on bearing area, stiffness, hardness, joint material, and surface contact. A larger washer is not always better because thickness and strength must support its diameter. When indentation risk, limited hole support, or high preload exists, treat the washer as a load-bearing part. Ningbo Topbolt Metalworks Co., Ltd. provides flat washer options with suitable dimensions, materials, and hardness levels for different joint conditions, helping customers improve load distribution and fastening reliability.
FAQ
Q: How does a flat washer distribute load in a bolted connection?
A: A flat washer increases the bearing area beneath the bolt head or nut. This spreads clamping force across more material and reduces local bearing pressure.
Q: Why does the outside diameter of a flat washer affect load distribution?
A: A larger flat washer can provide more bearing area around the fastener hole. This helps reduce indentation, crushing, and pull-through when the joint surface needs greater support.
Q: Why is an ASTM F436/F436M flat washer used in high-load connections?
A: An ASTM F436/F436M flat washer is designed for demanding structural fastening conditions. Its hardened construction helps resist deformation and maintain effective load transfer under high bolt preload.
Q: Can a flat washer help prevent preload loss?
A: A flat washer can reduce local embedment and surface indentation. This creates a more stable bearing surface, helping limit settlement that may otherwise reduce retained bolt preload.
Q: Is a larger washer always better for distributing bolt load?
A: No. Larger diameter can improve coverage, but thickness, hardness, surface contact, and joint material still matter. SAE USS flat washer dimensions should therefore match the actual bearing conditions.
