Oil and gas pipeline systems operate under extreme pressure conditions, especially in long-distance or deep-sea transmission lines. A failure in the connection points, particularly flanges, valve interfaces, and support brackets, can lead to dangerous leakage or system shutdowns. To ensure safety and reliability, the threaded rod—a crucial fastening component—must be appropriately matched to the pipeline’s pressure rating and environmental conditions.
Threaded rods are used to clamp components together, creating sealed connections resistant to both internal pressure and external environmental factors. Selecting the right rod standard ensures structural integrity, prevents fatigue failure, and supports long-term maintenance efficiency.
Key Considerations for Matching:
Pipeline Class (e.g., ANSI 600, 900, 1500): Higher classes require higher-strength rods.
Pressure-Temperature Ratings: Threads must not deform or loosen under stress cycles.
Material Compatibility: Rods must resist thermal expansion, corrosion, and mechanical strain.
For example, ASTM A193 B7 rods are typically used for Class 600–900 systems, while ASTM A193 B16/B16M is preferred for high-temperature, high-pressure (HTHP) pipelines operating at 1000°F and above.
ASTM A193 B16/B16M: Ideal for High-Temperature Transmission Lines
ASTM A193 B16/B16M threaded rod is a top-tier fastener solution when it comes to high-temperature and high-pressure industrial systems. Specifically engineered from chromium-molybdenum-vanadium alloy steel, this threaded rod is tailored for critical transmission lines where both thermal and mechanical stresses are significant. It is particularly suitable for power plants, oil refineries, petrochemical facilities, and thermal processing units operating at elevated service temperatures.
Thanks to its high tensile strength of at least 125 ksi and resistance to thermal creep, B16 threaded rods ensure long-term stability and structural integrity in Class 1500 pipeline systems and above. They are ideal for flanged connections in heat exchangers, pressure vessels, and SAGD (steam-assisted gravity drainage) operations, where process temperatures may exceed 1000°F.
Unlike general threaded rods such as DIN975/DIN976 threaded rod for framing, or SAE J429 threaded rod for medium-strength mechanical structures, ASTM A193 B16/B16M threaded rods are purpose-built for extreme environments. Compared to ASTM A193 B7/B7M threaded rod, the B16 variant delivers superior high-temperature endurance, while ASTM A193 B8/B8M threaded rod remains the preferred option for corrosion-prone applications. This makes B16 the optimal choice for high-temperature transmission systems requiring both strength and reliability.
Case Example:
A North American crude transmission line in Alberta adopted B16 threaded rods for all high-temperature flanged joints. The rods exhibited negligible loosening after two winter-summer cycles and remained dimensionally stable even with daily temperature swings over 200°F.

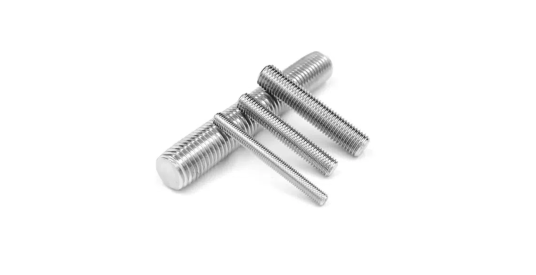

DIN975/DIN976 Threaded Rods: Versatility in Modular and Fast Assembly Systems
In modular and rapidly evolving oil and gas environments, DIN975/DIN976 threaded rods have emerged as indispensable components due to their adaptability and ease of use. Unlike fixed, high-pressure pipeline joints that rely on ASTM A193 B7/B7M/B16/B16M threaded rod or SAE J429 threaded rod for permanent strength, DIN-standard rods are ideal for non-critical support structures like cable trays, pipe racks, and temporary access platforms. Their cut-to-length customization allows field engineers to trim and fit them on-site without waiting for factory-made parts, significantly reducing downtime during assembly.
The universal metric threading of DIN975/DIN976 threaded rods ensures compatibility with a wide array of hardware, including pipe clamps, gusset plates, and modular connectors. These rods are available in materials suited for various conditions—carbon steel for standard indoor environments, A2 stainless steel (304) for general corrosion resistance, and A4 stainless steel (316) for marine or acidic applications. Their frequent use in modular skid systems also highlights their strength in reconfigurable and movable installations. As oil and gas infrastructure becomes more dynamic, DIN975/DIN976 rods offer the versatility and speed required for efficient field assembly and future adaptability.
Application Example:
In an offshore natural gas platform, engineers used DIN976 stainless steel rods to mount valve control panels and piping brackets. Due to space limitations, the ability to trim rods on-site and quickly pair them with locknuts made assembly 35% faster than conventional bolting.
Corrosion Protection and On-Site Assembly in Oil & Gas Pipelines
In the oil and gas industry, threaded rod systems must endure some of the world’s harshest operational environments. From offshore drilling platforms to desert pipelines and Arctic LNG terminals, these components are constantly exposed to salt spray, hydrogen sulfide (H₂S), acidic compounds, and fluctuating humidity and temperatures. To prevent premature failure, corrosion protection becomes a top priority. Choosing ASTM A193 B8/B8M threaded rods, made from corrosion-resistant stainless steels like 304 and 316, is an effective first defense. For environments where stainless steel is not feasible, protective coatings such as PTFE, hot-dip galvanizing, or cadmium plating offer excellent shielding against chemical attack and moisture.
Additionally, the use of sealing compounds, nut caps, and thread covers helps protect exposed threads during transport and installation. These accessories are especially valuable in preventing thread degradation before final assembly. On-site assembly flexibility is another key benefit of threaded rods over pre-cut bolts. Whether deploying ASTM A193 B7/B7M/B16/B16M threaded rod for high-stress joints or SAE J429 threaded rod in compressor systems, field technicians can fine-tune preload to compensate for thermal expansion and flange misalignment—ensuring long-term reliability and sealing integrity.
Best Practices:
Choose longer rods with double nuts for controlled torqueing. Store rods in moisture-controlled containers before installation. Pre-apply anti-seize compounds on threads for easier maintenance cycles.
Practical Deployment: Threaded Rod Layout Strategy in Oilfield Pipeline Networks
In oilfield pipeline networks, the effectiveness of threaded rod deployment hinges not only on material properties but also on meticulous planning and strategic layout. Given the complexity of oil and gas infrastructure—including compressor skids, valve stations, and flanged pipelines—each connection must endure high pressure, vibration, and thermal cycling without failure. To meet these demands, engineers commonly rely on ASTM A193 B7/B7M/B16/B16M threaded rod for high-load areas, such as flange joints and pump bases, while using DIN975/DIN976 threaded rod for lighter-duty supports and accessories.
Key layout strategies include uniform grade allocation—matching rod type with the specific mechanical requirement of the joint. For instance, B16 threaded rods are ideal for thermally active sections, while SAE J429 threaded rod (Grades 5 or 8) is often used in equipment mounts. Equal preload through star-pattern torque application ensures gasket sealing and minimizes flange warping. Additionally, engineers favor extended-length rods with double locknuts for redundancy under thermal expansion and vibration. Strategic rod placement is also critical to facilitate NDT (non-destructive testing), like ultrasonic inspections. Finally, labeling and color-coding rods by standard and size streamlines both installation and maintenance, boosting overall site efficiency and safety.
Field Case:
In a Middle East onshore oil pipeline development, engineers deployed a mix of ASTM A193 B7 rods for main flanges and DIN975 galvanized rods for cable tray support structures. This hybrid approach balanced cost with structural security, enabling streamlined commissioning within deadline and budget.
Conclusion
Threaded rods are more than simple fasteners—they are critical components that uphold safety, reliability, and performance in oil and gas pipeline systems. Whether in high-temperature operations, modular support structures, or corrosive environments, choosing the right threaded rod can prevent failures and optimize long-term maintenance.
From ASTM A193 B16 for heat-intensive pipelines to DIN975 rods for rapid assembly, and from SAE J429 for structural stability to B8 stainless steel for anti-corrosion defense, the selection spectrum is wide—and each type plays a distinct role.
For projects that demand precision, compliance, and resilience, Ningbo Topbolt Metalworks Co., Ltd. stands as a premier global partner, ready to support your pipeline network’s integrity from flange to flange.
