When selecting high strength bolts for construction, bridge building, or heavy industry applications, understanding the distinctions between various bolt grades is essential for ensuring safety, durability, and cost-effectiveness. Two of the most commonly specified grades in North American standards are Grade 5 (Gr5) and Grade 8 (Gr8) bolts. While both are widely used and offer excellent strength, they differ in mechanical properties, applications, and cost.

In this comprehensive guide, we will explore the key differences between Gr5 and Gr8 bolts, compare them with other international standards like AS 1252 grade 8.8 high strength bolt and ASTM A193 grade B7/B7M heavy hex bolt, and help you understand how to select the right bolt for your project. For trusted supply of these bolts, Top Bolt Manufacturing provides quality-certified products designed to meet rigorous industrial demands.

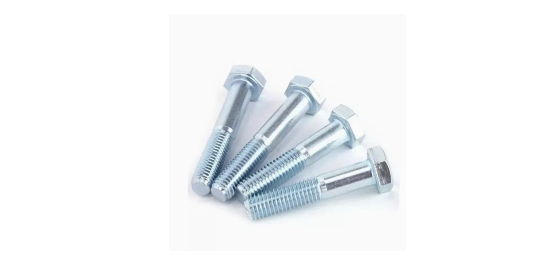

high strength bolt

What Are Gr5 and Gr8 Bolts?

Gr5 and Gr8 are classifications of bolts according to the SAE J429 standard, widely used in the United States and Canada. They differ mainly in their strength and mechanical performance.

Grade 5 Bolts: Made from medium carbon steel that is quenched and tempered, these bolts have a tensile strength of approximately 120,000 psi (pounds per square inch) and a yield strength of about 92,000 psi. They have a moderate level of hardness, making them strong yet somewhat flexible.

Grade 8 Bolts: Made from medium carbon alloy steel that is also quenched and tempered, these bolts have higher tensile and yield strengths, with a tensile strength of about 150,000 psi and a yield strength around 130,000 psi. Grade 8 bolts are harder and stronger but less ductile than Grade 5.



Mechanical Properties Comparison

The mechanical differences between Grade 5 and Grade 8 bolts are significant and determine their suitability for different applications.

Grade 5 bolts provide good strength with a balance of toughness, making them ideal for many general-purpose uses. They can withstand considerable stress and are less likely to snap under impact compared to higher-grade bolts.

Grade 8 bolts offer higher strength and hardness. This makes them better suited for demanding applications where bolts must withstand very high loads, such as heavy machinery, structural joints in bridges, and automotive engine components.

However, the increased hardness in Grade 8 bolts comes at the expense of ductility. They are more brittle than Grade 5 and require careful installation to avoid premature failure.



Application Areas for Grade 5 Bolts

Due to their balance of strength and flexibility, Grade 5 bolts are commonly used in applications where moderate to high strength is sufficient. They are standard in:

Automotive assembly, including suspension and drivetrain components

Agricultural equipment

Structural connections in residential and commercial buildings

Machinery components that experience vibration and shock loads but not extreme stress

Grade 5 bolts are also often specified in less critical load-bearing points where cost-effectiveness is important.



Application Areas for Grade 8 Bolts

Grade 8 bolts are favored when maximum strength is necessary, and safety is paramount. They are widely used in:

Heavy equipment manufacturing, such as cranes and bulldozers

Structural joints in bridges and large buildings that face high stress and dynamic loading

Automotive engine assembly and other high-performance automotive parts

Industrial machinery where high tensile strength fasteners are required

Their higher strength rating means fewer bolts may be needed to carry the same load compared to Grade 5 bolts, but installation precision is critical.



Comparing Gr5 and Gr8 Bolts with International Standards

The North American Gr5 and Gr8 bolt grades correspond roughly to metric standards but with some differences.

AS 1252 Grade 8.8 High Strength Bolts: This Australian/New Zealand standard bolt has a tensile strength of about 800 MPa (116,000 psi), which is close to Grade 5 bolts. It is widely used in building and bridge construction projects and has become a global benchmark for structural bolts.

ASTM A193 Grade B7 and B7M Heavy Hex Bolts: These are alloy steel bolts commonly used in pressure vessels, power plants, and heavy industry. Grade B7 bolts have tensile strength around 125 ksi (860 MPa), similar to Grade 8 bolts. B7M bolts have lower strength but greater ductility for sour gas environments.

Metric Grade 10.9 and 12.9 Bolts: These grades represent higher tensile strengths than Grade 8, used extensively in automotive and aerospace applications where superior mechanical performance is needed.

Understanding these international standards helps engineers specify the correct bolts for multinational projects and ensure material compatibility.



Installation and Performance Considerations

Proper installation of Grade 5 and Grade 8 bolts is crucial to achieving their rated performance.

Due to their increased hardness, Grade 8 bolts require accurate torque application to avoid over-tightening, which can lead to bolt failure. Lubrication of threads and use of calibrated torque tools are recommended to ensure correct preload.

Grade 5 bolts, being less brittle, offer a wider margin of installation error but still require following torque specifications for safety and durability.

In both cases, using washers to distribute load and prevent surface damage, and verifying bolt grade markings during installation, helps maintain joint integrity.



Cost Differences Between Grade 5 and Grade 8 Bolts

Grade 8 bolts are more expensive than Grade 5 due to their higher alloy content, more complex heat treatment, and superior mechanical properties. For projects where extreme strength is not necessary, choosing Grade 5 bolts can be more cost-effective while maintaining safety.

However, in critical infrastructure like bridges or heavy machinery, the additional investment in Grade 8 bolts is justified by their superior performance and longer service life.



Summary: Which Should You Choose?

Selecting between Grade 5 and Grade 8 bolts depends on the application, load requirements, and budget.

For general-purpose use in buildings, automotive suspension, and moderate load machinery, Grade 5 bolts provide reliable strength at a reasonable cost.

For high-stress structural joints, heavy equipment, and critical automotive or industrial applications, Grade 8 bolts deliver the strength needed to ensure safety and durability.

If your project requires compliance with international standards such as AS 1252 or ASTM A193, consult with your supplier to ensure bolt grade compatibility.



Why Choose Top Bolt Manufacturing for High Strength Bolts?

When it comes to sourcing high strength bolts, quality and reliability cannot be compromised. Top Bolt Manufacturing offers a wide range of certified Gr5 and Gr8 bolts, AS 1252 grade 8.8 high strength bolts, and ASTM A193 B7/B7M heavy hex bolts.

They provide products that meet rigorous international standards, with full material traceability and testing reports. Their expert team helps customers select the correct bolt grades for specific applications and industries, including building, bridge construction, and heavy industry.

Top Bolt Manufacturing ensures timely delivery, competitive pricing, and technical support to make your procurement process smooth and reliable.

Visit www.topboltmfg.com today to explore their product catalog and request a quote tailored to your needs.



Conclusion

Understanding the difference between Gr5 and Gr8 bolts is fundamental to selecting the right fastener for your structural, automotive, or heavy industry projects. While Grade 5 bolts offer balanced strength and ductility for a wide range of applications, Grade 8 bolts provide superior strength necessary for the most demanding environments.

Consider your project's load requirements, safety margins, and budget when choosing between these bolt grades. Partnering with an experienced supplier like Top Bolt Manufacturing ensures you receive high-quality fasteners that comply with international standards and deliver long-term performance.
