Bolts are among the most essential fasteners used in woodworking, construction, and infrastructure projects. They provide strength, stability, and long-term reliability when joining different components together. While there are dozens of different types of bolts available on the market, two that are often compared or even confused are the timber bolt and the carriage bolt.
At first glance, both appear to be designed for wood-based applications. They feature a head and a shank, require a nut to secure them, and are used in timber-related projects. However, when you examine them more closely, they serve different purposes, offer distinct structural characteristics, and are governed by different standards.
This article provides a detailed breakdown of timber bolts versus carriage bolts, exploring their unique features, typical applications, mechanical strengths, and design advantages. By the end, you will clearly understand which fastener suits your specific project needs.
Understanding Timber Bolts
What Is a Timber Bolt?

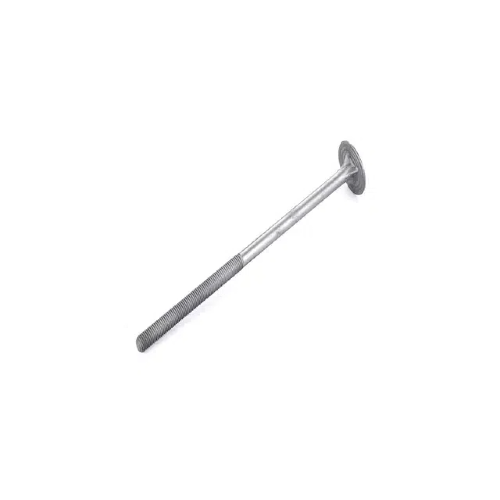

A timber bolt, sometimes referred to as a dome head bolt or mushroom head bolt, is a specialized fastener designed for heavy timber construction. Unlike general-purpose bolts, timber bolts are intended to withstand the stresses associated with structural wood applications such as bridges, piers, docks, and landscaping structures.
These bolts often feature a large, dome-shaped head that distributes pressure more evenly across wooden surfaces. Beneath the head, timber bolts usually have small nubs, fins, or ribs (commonly known as nibs) that dig into the wood. This design prevents the bolt from turning while tightening the nut, eliminating the need for an external wrench on the head side.
Key Features of Timber Bolts
Large Head Size: Provides a greater bearing surface, reducing the risk of bolt pull-through in softwood or aged timber.
Nibs or Fins Beneath the Head: Improve grip and prevent bolt rotation during installation.
Heavy-Duty Applications: Specifically designed for structural timber where high loads and long-term stability are critical.
Corrosion Resistance: Often hot-dip galvanized or made from stainless steel for outdoor and marine environments.
Compliance with Codes: Timber bolts are typically specified in engineered drawings and must meet safety requirements outlined by transportation or construction authorities.
Common Materials and Sizes
Timber bolts are generally produced from carbon steel or alloy steel, with coatings such as hot-dip galvanization to protect against corrosion. In marine or high-moisture environments, stainless steel variants are preferred.
Typical timber bolt sizes include:
Diameter: 1/2" (M12), 5/8" (M16), 3/4" (M20)
Length: 6 inches (150 mm) to over 20 inches (500 mm), depending on structural requirements
Because timber bolts are often specified for code-compliant projects, their dimensions and coatings are regulated under standards such as ASTM A307, ASTM F3125, or regional timber construction codes. Manufacturers often provide certified test reports to confirm strength, coating thickness, and durability for critical applications.
Understanding Carriage Bolts
What Is a Carriage Bolt?
A carriage bolt, also called a coach bolt, is a common fastener widely used in woodworking, furniture construction, fencing, and light structural applications. It features a smooth, rounded dome head and a square neck just beneath the head.
The square neck locks into the wood when tightened, preventing the bolt from spinning while a nut is applied. This design makes installation easier, especially when only one side of the joint is accessible. Carriage bolts are popular not only for their function but also for their clean and polished appearance.
Key Features of Carriage Bolts
Round Dome Head: Provides a smooth, finished look with no sharp edges, enhancing safety and aesthetics.
Square Neck: Prevents rotation and ensures the bolt stays fixed in position during tightening.
Versatility: Used in fences, furniture, wooden decks, playground equipment, and lightweight wooden structures.
Medium Strength: Suitable for light to medium load-bearing applications.
Wide Availability: Produced in bulk and standardized globally, making them one of the most cost-efficient choices for general woodworking projects.
Common Materials and Sizes
Carriage bolts are available in a wide range of materials, including:
Mild steel (zinc-plated for corrosion resistance)
Stainless steel (ideal for outdoor use)
Hot-dip galvanized steel (extra protection for exterior applications)
Typical carriage bolt sizes include:
Diameter: 1/4" (M6), 5/16" (M8), 3/8" (M10), 1/2" (M12)
Length: From 1 inch (25 mm) to over 10 inches (250 mm)
They are typically manufactured under standards like DIN 603, ISO 8677, or ASTM A307, ensuring dimensional consistency, mechanical reliability, and international compatibility.
Key Differences Between Timber Bolts and Carriage Bolts
Although both timber bolts and carriage bolts are designed for wood applications, their structural differences and intended uses set them apart.
Head Design
Timber Bolt: Features a large dome or mushroom-style head that provides a wide bearing surface. Nibs beneath the head increase grip.
Carriage Bolt: Has a smaller, rounded dome head with a square neck that locks into place.
Applications
Timber Bolt: Best for heavy timber structures such as bridges, piers, marine docks, and landscaping walls.
Carriage Bolt: Suited for lighter applications including furniture, playgrounds, garden fences, and decking.
Holding Power
Timber Bolt: Offers superior holding power due to its large head and nibbed design, which resist pull-through under heavy loads.
Carriage Bolt: Provides adequate holding strength for medium-duty projects but is not recommended for high-stress structural applications.
Standards and Codes
Timber Bolt: Governed by construction standards specific to structural timber projects, ensuring compliance with engineering requirements.
Carriage Bolt: Classified as a general-purpose fastener, widely available in retail and industrial supply chains.
Comparison Table: Timber Bolt vs Carriage Bolt
Feature | Timber Bolt | Carriage Bolt |
Head Style | Large dome or mushroom head | Round smooth dome head |
Anti-Rotation | Nibs or fins beneath head | Square neck beneath head |
Typical Use | Heavy timber, bridges, marine structures | Furniture, fences, decks, light woodwork |
Strength | High – designed for heavy load-bearing | Medium – suitable for light to medium use |
Common Finish | Hot-dip galvanized, stainless steel | Zinc-plated, galvanized, stainless steel |
Standards | ASTM A307, ASTM F3125, regional timber codes | DIN 603, ISO 8677, ASTM A307 |
When to Use Timber Bolts vs Carriage Bolts
Choosing between a timber bolt and a carriage bolt depends on project requirements, load capacity, and design intent.
Use Timber Bolts when:
The structure involves large or heavy timber beams
The project requires compliance with building codes for structural safety
Long-term durability in outdoor or marine environments is essential
Use Carriage Bolts when:
Building furniture, fences, decks, or play equipment
The project emphasizes aesthetics and smooth finishes
The load-bearing requirements are light to moderate
In some cases, both bolts may be used on the same project, but selecting the right one ensures safety, longevity, and performance. It is also recommended to confirm specifications with suppliers to ensure proper diameter, coating, and strength grade for the intended environment.
Conclusion
The primary difference between a timber bolt and a carriage bolt lies in their design and intended use. Timber bolts are engineered for heavy-duty timber construction, offering superior holding strength and compliance with building codes. In contrast, carriage bolts are versatile fasteners designed for lighter woodworking and aesthetic applications.
Both play important roles in construction and woodworking. Knowing when to use each type is essential for ensuring structural integrity and safety.
When sourcing reliable fasteners, working with an experienced manufacturer is key. Ningbo Topbolt Metalworks Co., Ltd. provides a comprehensive range of timber bolts, carriage bolts, and other industrial fasteners. With strict quality control, international certifications, and the ability to produce custom specifications, Topbolt ensures that every bolt delivers dependable performance. Whether your project involves heavy timber structures or light woodworking, Topbolt can supply the right fastener for the job.
