Guardrail systems play an essential role in modern road safety, acting as barriers that prevent vehicles from leaving the roadway during accidents or collisions. These systems help reduce the severity of impacts and protect both drivers and pedestrians. For a guardrail system to perform effectively, every component must be manufactured and installed to precise standards. Among these components, guardrail bolts are small but highly significant.
Guardrail bolts serve as the connecting elements that hold beams, posts, and supporting accessories firmly in place. Without reliable bolts of the correct size, even the strongest guardrail beam may fail to deliver its intended level of protection. This raises a common question: What size are guardrail bolts? The answer varies depending on the guardrail type, standard, and environment. In this article, we will examine the common dimensions, materials, standards, and considerations that define guardrail bolts, providing a complete reference for engineers, contractors, and procurement specialists.
What Are Guardrail Bolts?
Definition and Purpose

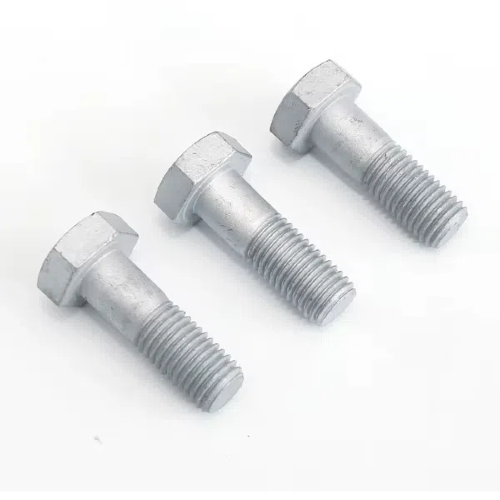

Guardrail bolts are heavy-duty fasteners designed specifically for connecting different parts of a guardrail system, such as W-beam or Thrie-beam panels, posts, spacers, and terminal ends. Unlike standard bolts used in general construction, guardrail bolts are manufactured with strict tolerances and mechanical properties that ensure they can withstand the high impact forces of road accidents.
Key Features
High Strength: Manufactured from carbon steel or alloy steel with grades such as 8.8 or 10.9, which provide the tensile and shear strength needed for critical applications.
Corrosion Resistance: Given their outdoor use, guardrail bolts often feature protective coatings like hot-dip galvanizing, zinc plating, or more advanced treatments to extend service life in harsh weather.
Precision Fit: Designed to integrate seamlessly with guardrail beams, splice plates, and posts, minimizing the risk of loosening under vibration or dynamic loads.
Standard Compliance: Produced in accordance with AASHTO, ASTM, EN, ISO, or GB specifications, making them acceptable for use in global infrastructure projects.
Common Materials
Carbon Steel: A cost-effective option offering durability and strength for most highway installations.
Stainless Steel: Used in coastal regions or areas with high humidity where corrosion resistance is critical.
Alloy Steel: Provides enhanced toughness for projects where maximum performance is required.
Standard Sizes of Guardrail Bolts
One of the first details engineers and contractors must confirm is the size of guardrail bolts. Both diameter and length are crucial to ensuring structural stability and compliance with project standards.
Typical Diameters
M16 (5/8 inch): This is the most widely used diameter for W-beam systems and many standard guardrail assemblies.
M20 (3/4 inch): Preferred for Thrie-beam guardrails, heavy-duty posts, or applications requiring greater load resistance.
Typical Lengths
Guardrail bolts are manufactured in a variety of lengths to match different system requirements. Common lengths include 32 mm, 50 mm, 75 mm, 100 mm, and above, depending on the thickness of the beams and the design of the connections.
Table of Common Sizes
Guardrail System | Bolt Diameter | Bolt Length Range | Standard Reference |
W-Beam Guardrail | M16 (5/8") | 32–50 mm | AASHTO / ASTM |
Thrie-Beam Rail | M20 (3/4") | 75–100 mm | EN / ISO / GB |
Post Connections | M16 or M20 | 50–100 mm | JT/T (China), ASTM |
Splice Plates | M16 | 32–50 mm | Global Standards |
These values represent the industry norms, but actual requirements may vary depending on the project specifications issued by local transportation authorities.
Why Size Matters for Guardrail Bolts
Structural Stability
The correct size of guardrail bolts ensures that beams, posts, and accessories remain tightly secured. If undersized bolts are used, the guardrail system may loosen or fail under the stress of vehicle impact, reducing its effectiveness. Oversized bolts, meanwhile, can create unnecessary installation challenges and potential alignment issues.
Compliance with Safety Standards
Highway safety relies on strict compliance with national and international standards. Authorities such as AASHTO or EN specify exact dimensions and performance criteria for guardrail bolts. Using bolts outside these requirements can lead to inspection failures, safety risks, and legal liabilities for contractors.
Installation Efficiency
Correctly sized bolts speed up installation, as they fit seamlessly into pre-drilled holes on guardrail beams and posts. This minimizes downtime, ensures a snug fit, and reduces the likelihood of rework. Over time, using the proper bolt sizes also reduces maintenance costs, since the fasteners are less likely to loosen under vibration.
Other Specifications to Consider
While size is the most visible specification, other characteristics greatly influence the durability and effectiveness of guardrail bolts.
Surface Treatment
Hot-Dip Galvanizing: The most popular choice, providing excellent corrosion resistance for decades of outdoor service.
Zinc Plating: Suitable for moderate climates, offering a balance between cost and performance.
Advanced Coatings: Options like Dacromet or epoxy coatings provide superior protection against salt, chemicals, or abrasive conditions.
Strength Grades
Grade 8.8: Adequate for most standard highway guardrails.
Grade 10.9: Recommended for areas with heavy traffic, high-speed roads, or severe impact potential.
Complementary Accessories
Bolts are rarely used alone; they are paired with:
Nuts for secure fastening.
Washers to spread load distribution and prevent damage to guardrail surfaces.
Backing Plates or Spacers for additional reinforcement in high-stress connections.
Global Standards for Guardrail Bolts
Guardrail bolts must conform to regional and international standards, which guarantee safety and compatibility across projects.
United States Standards
European Standards
EN 1317: Provides detailed requirements for road restraint systems, including fastener dimensions and performance tests.
ISO Standards: Set global benchmarks for bolt sizes, coatings, and strength grades.
Chinese and Asian Standards
GB/T & JT/T Series: Define specifications for fasteners used in guardrail systems in China, widely adopted in Asia.
These standards ensure that no matter where a project is located, guardrail bolts can deliver consistent safety and durability.
Choosing the Right Guardrail Bolts for Your Project
When selecting guardrail bolts, it’s not enough to simply know the diameter and length. Each project brings unique challenges, and choosing the right bolt requires consideration of multiple factors.
Key Considerations
Guardrail Type: Different systems—such as W-beam, Thrie-beam, or cable barriers—require specific bolt dimensions.
Traffic and Speed Conditions: High-speed highways demand higher-grade bolts with stronger tensile and shear performance.
Environmental Exposure: Coastal roads or humid regions require coatings and materials resistant to corrosion.
Regulatory Standards: Always align with local transportation authority guidelines and project specifications.
Practical Advice
Verify bolt sizes against engineering drawings before procurement.
Always use nuts and washers with matching strength grades and coatings.
If standard options do not meet your needs, consult a professional supplier for customized guardrail bolts tailored to your project.
Conclusion
So, what size are guardrail bolts? The most common sizes are M16 (5/8”) and M20 (3/4”), with lengths ranging from 32 mm to 100 mm or more, depending on the system type and project requirements. These dimensions ensure that guardrail systems are strong enough to perform during accidents, while also meeting strict safety standards.
Beyond size, the strength grade, surface treatment, and compliance with global standards are equally important factors in ensuring long-term performance. Choosing the correct bolts is not just about technical specifications—it is about ensuring the safety of everyone who uses the road.
For reliable sourcing, Ningbo Topbolt Metalworks Co., Ltd. is a trusted manufacturer with decades of experience in producing high-quality guardrail bolts and other fasteners. With strict ISO-certified quality control, a wide range of materials, and the ability to meet AASHTO, ASTM, EN, and GB standards, Topbolt ensures both safety and durability. Whether your project involves highways, bridges, or large infrastructure, Topbolt can provide the right guardrail bolts to meet your needs.
