When it comes to fasteners, strength and reliability are always top priorities. Among the many types of bolts used in construction, woodworking, and metalworking, carriage bolts and regular bolts (such as hex bolts or machine bolts) are two of the most commonly compared. The question often arises: Are carriage bolts as strong as regular bolts?
The answer depends on several factors, including the materials used, the structural design of the bolts, the installation method, and the intended application. In this article, we will explore the differences between carriage bolts and regular bolts, analyze their relative strength, and provide insights on how to select the right bolt for your project.
Carriage bolts and regular bolts are both designed to create secure connections, but they achieve this goal in very different ways. Understanding their unique characteristics is crucial for engineers, builders, and even DIY enthusiasts who need to make informed choices about fasteners.

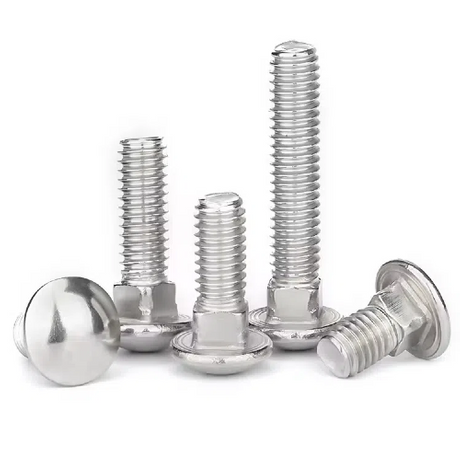

What Is a Carriage Bolt?
Definition and Design
A carriage bolt is a type of fastener characterized by:
A smooth, domed head (usually round) that offers a clean finish.
A square neck directly beneath the head that prevents the bolt from turning when tightened into wood or softer materials.
A fully or partially threaded shaft designed to hold the nut securely in place.
This design makes carriage bolts ideal for wood-to-wood or wood-to-metal connections where a smooth, low-profile head is preferred for both safety and aesthetics. The rounded head also helps reduce snagging or catching, which is important in furniture, fencing, or playground structures.
Common Materials
Carriage bolts are typically manufactured in:
Low carbon steel (Grade 2): Adequate for light-duty applications.
Medium carbon steel (Grade 5): Provides better tensile strength and durability.
Alloy steel (Grade 8): Suitable for higher strength requirements.
Stainless steel (304, 316): Excellent for corrosion resistance in outdoor or marine environments.
Hot-dip galvanized steel: Adds a protective coating against rust, commonly used for exterior wood projects.
Typical Applications
Wooden fencing and gates where tamper resistance is needed.
Playground equipment for child safety due to smooth heads.
Furniture assembly that benefits from a flush finish.
Decking and outdoor structures exposed to weather.
Light-duty metal-to-wood connections that do not require extreme torque.
The combination of design and materials means carriage bolts strike a balance between functionality and appearance, making them a preferred choice in many consumer and architectural applications.

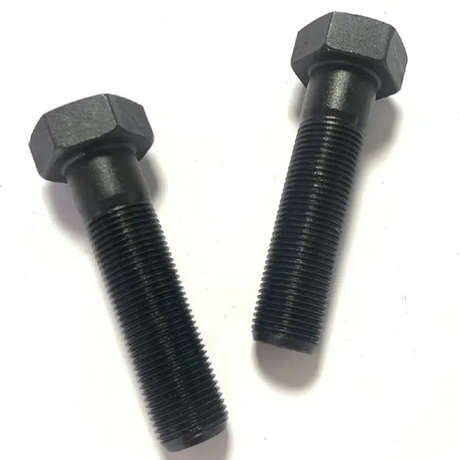

What Is a Regular Bolt?
Definition and Types
A regular bolt generally refers to fasteners such as hex bolts, machine bolts, or structural bolts. These bolts are designed with:
A hexagonal head for easy tightening with a wrench or socket, allowing precise torque application.
A partially or fully threaded shank, offering flexibility in clamping strength and load capacity.
A wide range of diameters, lengths, and strength grades to accommodate heavy-duty requirements.
Applications
Regular bolts are widely used in:
Steel structures such as bridges, towers, and industrial buildings.
Automotive and heavy machinery assembly, where vibration resistance is critical.
Industrial equipment that demands consistent torque and tensile performance.
Marine and pipeline construction where environmental durability is a priority.
General construction projects where load-bearing strength is essential.
Because they are designed for heavy-duty use, regular bolts are available in multiple standards and grades, often paired with hardened washers and nuts to achieve high clamping force.
Structural Differences Between Carriage Bolts and Regular Bolts
Head and Neck Design
Carriage Bolt: Round head with a square neck that locks into softer material to resist spinning. This makes installation easier in wood without requiring a second tool to hold the bolt head.
Regular Bolt: Hexagonal head designed for mechanical tightening. This allows for significantly greater torque and higher clamping loads compared to carriage bolts.
Installation Method
Carriage bolts require pre-drilled holes for proper fit. The square neck provides stability but limits their application in harder materials.
Regular bolts allow more versatility in installation, including in pre-drilled or tapped holes, and they can be used in virtually any construction environment.
Structural Implication
The square neck of a carriage bolt is functional in wood but less effective in metal connections, where slippage or misalignment can occur. In contrast, the hex head of regular bolts gives engineers better control over installation, torque application, and preload, which directly impacts structural integrity.
Strength Considerations
Material Grades
The strength of both carriage bolts and regular bolts depends heavily on grade and material composition:
Bolt Type | Common Grades | Typical Tensile Strength | Applications |
Carriage Bolt | Grade 2, 5, 8; Stainless Steel; Galvanized | 60,000 – 150,000 psi | Wood structures, outdoor furniture, decking |
Regular Bolt (Hex Bolt) | Grade 2, 5, 8; ASTM A325, A490 | 60,000 – 150,000+ psi | Bridges, steel frameworks, machinery, pipelines |
Load Types
Tensile Load: Both bolts can provide comparable tensile strength when produced from the same grade of steel.
Shear Load: Carriage bolts are effective in shear applications within wooden assemblies but are not optimized for high-stress steel joints.
Torque/Clamping Force: Regular bolts clearly outperform carriage bolts due to their hex head, which allows for higher torque values and controlled preload.
Surface Treatments
Surface coatings such as hot-dip galvanization, zinc plating, or black oxide treatments further influence performance. For outdoor conditions, galvanized or stainless steel carriage bolts are preferred, while structural bolts may use weathering steel or advanced coatings to resist corrosion in steel frameworks.
Application-Based Comparison
Carriage Bolts
Best suited for wood-to-wood and wood-to-metal connections.
Provide a clean finish that enhances aesthetics in exposed applications.
Offer a level of tamper resistance since the head cannot be gripped easily with tools.
Limited in use for heavy industrial or load-bearing metal applications.
Regular Bolts
Ideal for heavy-duty, high-stress environments.
Provide higher torque capacity and clamping strength.
Compatible with a wide variety of washers, locknuts, and preload control methods.
Essential in environments where vibration, shear, and fatigue resistance are critical.
Pros and Cons of Carriage Bolts vs Regular Bolts
Feature | Carriage Bolts | Regular Bolts |
Strength | Adequate for wood and light-duty applications; limited by square neck design | Higher strength capacity across multiple grades and standards |
Ease of Installation | Easy in wood; square neck prevents rotation | Requires tools but allows precise torque control |
Best Use | Wooden structures, furniture, fencing | Steel structures, bridges, machinery |
Aesthetics | Smooth, rounded head for a clean look | Industrial appearance |
Tamper Resistance | Moderate (head cannot be easily gripped) | Low (hex head can be easily loosened) |
This side-by-side evaluation illustrates that while carriage bolts meet the needs of decorative and light-structural work, regular bolts are essential where safety and structural capacity are the highest priorities.
Which Should You Choose?
When deciding between carriage bolts and regular bolts, consider the following:
Application: For wooden structures or furniture, carriage bolts provide both safety and appearance. For steel structures and industrial frameworks, regular bolts are indispensable.
Strength Requirement: For high tensile and shear loads, regular bolts are the superior choice. Carriage bolts are strong but optimized for wood rather than steel.
Aesthetics and Safety: Carriage bolts offer a smoother, tamper-resistant finish, making them ideal for visible projects and installations involving children.
Environment: Stainless or galvanized carriage bolts excel outdoors, while high-strength alloy steel regular bolts dominate in industrial or structural projects.
Conclusion
So, are carriage bolts as strong as regular bolts? The answer is both yes and no. When manufactured with comparable steel grades, carriage bolts can achieve tensile values similar to regular bolts. However, because of their round head and square-neck design, they are not ideal for maximum torque or heavy industrial load-bearing applications, where regular bolts remain more reliable.
Carriage bolts, on the other hand, perform exceptionally well in woodworking, fencing, decking, and outdoor furniture, providing sufficient strength while adding visual appeal and safety benefits. For larger-scale projects such as bridges, pipelines, and machinery, the superior mechanical performance of regular bolts makes them the clear choice. In short, carriage bolts are strong and dependable within their intended applications, but they cannot fully replace regular bolts in demanding structural environments.
To make the right decision when sourcing fasteners, it is essential to work with an experienced and trusted manufacturer. Ningbo Topbolt Metalworks Co., Ltd. offers a complete range of carriage bolts, regular bolts, and customized fastener solutions, supported by strict quality control and international standards. If you are looking for dependable strength and reliable supply, Topbolt is a partner worth contacting for your next project.
