In modern construction, particularly in the field of steel-framed architecture, threaded rods have become indispensable components in ensuring the stability, integrity, and safety of structural connections. From anchoring beams and columns to bracing trusses and mechanical joints, threaded rods contribute significantly to the structural performance of buildings, bridges, industrial facilities, and parking garages.
With evolving architectural demands and seismic regulations, understanding the selection, configuration, and material standards of threaded rods is crucial for construction engineers and project managers. This article explores how threaded rods function in load-bearing and stability contexts, focusing on key standards like ASTM A193 B7/B7M/B16/B16M, ASTM A193 B8/B8M, SAE J429, and DIN975/DIN976, and their applications in building and mechanical systems.
Structural Load Transfer in Building Node Connections
Oil and gas pipelines operate under some of the most demanding conditions in industrial infrastructure. These systems are constantly exposed to elevated internal pressures, significant temperature fluctuations, and chemically aggressive environments such as hydrogen sulfide, CO₂, and saline moisture. In such contexts, the choice of fastening components like threaded rods becomes a critical determinant of safety and operational longevity.

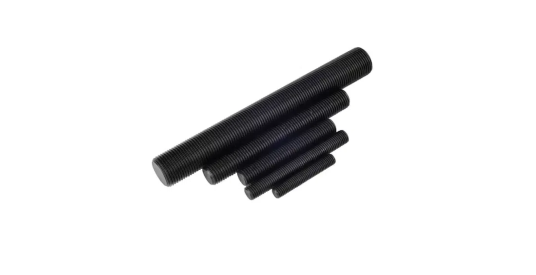

ASTM A193 B7 threaded rods are specifically engineered to meet these rigorous demands. Manufactured from heat-treated chromium-molybdenum alloy steel, B7 rods exhibit exceptional mechanical properties, making them well-suited for high-temperature, high-pressure (HTHP) applications common in pipeline flange connections, valve joints, and pressure vessels.
Key Benefits:
High Tensile Strength: With a minimum tensile strength of 125 ksi, ASTM A193 B7 threaded rods offer outstanding load-bearing capacity, ensuring the structural integrity of critical pressure joints in pipelines.
Temperature Resistance: These rods maintain performance at service temperatures up to 1000°F (537°C), making them ideal for applications in steam lines, heat exchangers, and thermal processing systems.
B7M Variant for Sour Gas: The B7M grade, characterized by lower hardness and increased ductility, is better suited for hydrogen sulfide-rich (sour) environments, reducing the risk of sulfide stress cracking in gas transmission systems.
Corrosion Protection Options: B7 threaded rods are frequently coated with zinc, PTFE (polytetrafluoroethylene), or hot-dip galvanized to improve resistance against moisture, marine air, and chemical exposure, thereby extending the lifespan of outdoor and offshore pipeline components.
In summary, ASTM A193 B7/B7M threaded rods provide a reliable and cost-effective solution for the oil and gas sector’s most challenging fastening needs. Their strength, temperature resilience, and adaptability to corrosive conditions make them indispensable in the design and maintenance of modern pipeline systems.
SAE J429 and DIN975 Standards: Versatility for Building Applications
SAE J429 and DIN975/DIN976 threaded rods are essential components in both mechanical and structural building applications. Their standardization ensures interchangeability, strength reliability, and construction efficiency across a wide range of project types.
SAE J429 threaded rods are widely adopted in North America, especially in industrial and commercial building settings. Grade 2 rods are ideal for low-stress environments such as wooden frame anchoring, while Grade 5 rods (with ~120 ksi tensile strength) are commonly found in mid-rise steel framing and heavy equipment mounting. For critical load paths—such as seismic joints or crane base frames—Grade 8 rods provide unmatched strength (150 ksi), enabling high-torque fastening without deformation. Their compatibility with American tools, torque wrenches, and fastener accessories ensures quick, reliable installations.
DIN975/DIN976 threaded rods, on the other hand, offer metric sizing flexibility and are ideal for international construction projects. Their full-threaded length allows for adjustable anchoring in modular wall systems, pipe racks, and suspended structures. Supplied in corrosion-resistant finishes like A2 and A4 stainless steel, they perform well in both indoor and outdoor environments, including humid and coastal areas.
For both standards, the cut-to-length feature makes these threaded rods especially valuable in reducing installation time, minimizing waste, and simplifying inventory management on site.
ASTM A193 B7 Threaded Rods in High-Rise Construction
In high-rise construction, where structural integrity is paramount, ASTM A193 B7 threaded rods have become a preferred choice due to their superior strength and mechanical resilience. These rods are made from chromium-molybdenum alloy steel and are heat-treated to achieve a minimum tensile strength of 125 ksi, making them ideal for managing high axial loads and resisting deformation over time.
Engineers rely on ASTM A193 B7 rods in a wide range of structural applications including column base anchorage, seismic restraint bracing, and elevator shaft stabilization. Their performance under creep, fatigue, and thermal cycling is particularly valued in critical infrastructure projects such as hospitals, data centers, and high-occupancy buildings where failure is not an option.
Additionally, the ability to use longer threaded rods with consistent material properties reduces the number of joints, minimizing weak points and streamlining installation processes. When paired with heavy-duty washers and torque-controlled nuts, these rods form a secure, vibration-resistant assembly that supports long-span steel members and dynamic loads. For demanding vertical structures, ASTM A193 B7 rods offer a reliable, code-compliant fastening solution that ensures safety and longevity even in harsh urban or seismic zones.
Optimizing Threaded Rod Layout in Seismic Design
In seismically active regions, a carefully engineered threaded rod layout is essential for ensuring that building connections can accommodate dynamic forces without catastrophic failure. Unlike static designs, seismic engineering must consider energy dissipation, cyclic loading, and deformation capacity. Using ASTM A193 B7 threaded rods, known for their high tensile strength, enhances joint reliability, especially in moment frames and shear walls where resistance to axial and lateral movement is critical.
In coastal seismic zones, ASTM A193 B8/B8M threaded rods offer dual benefits: corrosion resistance and compliance with ductility requirements specified in international codes like Eurocode 8. Layout strategies such as installing rods in staggered patterns or using tension-only configurations help prevent concentration of shear forces and group pull-out failure.
Additionally, long DIN975 threaded rods with continuous threads can accommodate rod elongation under load, acting as a shock-absorbing mechanism. Incorporating double nuts and hardened washers ensures tension is retained during ground shaking, while SAE J429 threaded rods, particularly Grade 5 and 8, provide strength-to-weight efficiency in U.S.-based seismic retrofits. By optimizing these threaded fastening systems, engineers can design more resilient buildings with enhanced post-earthquake performance.
Case Studies: Industrial Facilities, Parking Structures, and Bridge Joints
1. Steel Factory Construction:
In a heavy-duty manufacturing plant, engineers used SAE J429 Grade 8 threaded rods to connect crane girders to steel columns. The rods withstood high dynamic loads from traveling overhead cranes while allowing easy replacement during maintenance shutdowns.
2. Multi-Level Parking Garage:
A precast concrete parking garage required flexible mounting of railing supports and lighting brackets. DIN975 galvanized threaded rods were used extensively for their on-site adjustability and rust protection. Modular installation saved 22% of project time.
3. Pedestrian Bridge Assembly:
For a pedestrian bridge spanning 40 meters, ASTM A193 B7 rods anchored the main tension trusses to abutments. The rods were post-tensioned and monitored via sensors to ensure constant load transfer and safety compliance over time.
These cases highlight how proper threaded rod selection enhances reliability and simplifies installation across different building typologies.
Conclusion
Threaded rods are more than simple hardware—they are structural lifelines that connect, stabilize, and protect modern buildings from environmental loads, operational stress, and seismic shocks. Whether using SAE J429, DIN975, or ASTM A193 B7/B8, selecting the right threaded rod is vital to meeting both structural performance and long-term durability standards.
With proven performance in real-world construction—from factories to bridges—threaded rods continue to support innovation in civil engineering. For those seeking a dependable supply chain, Ningbo Topbolt Metalworks Co., Ltd. offers the precision, versatility, and reliability to bring your next project to life—bolt by bolt.
