1. Introduction
DIN7991 countersunk socket screws feature a 90° conical head, which can sink fully into the workpiece to achieve flush surface assembly. They are widely adopted in automation machinery, precision molds, instrument housings, aluminum profiles and mobile tooling where protruding fasteners would interfere with moving components.

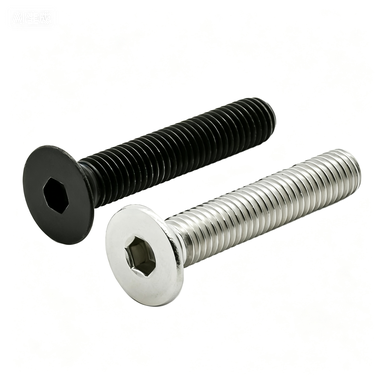

DIN7991 Countersunk Socket Screws Common on-site issues such as protruding heads, poor conical seating, head fracture and socket stripping are rarely caused by screw quality defects. Most failures stem from non-standard countersink machining, improper installation sequence and uncontrolled tightening torque. Uneven assembly not only ruins appearance, but also causes scraping and mechanical interference during equipment operation.
Compiled by the TOPBOLT technical team with rich precision fastener supporting experience, this article presents standardized installation procedures, countersink requirements, torque specifications and correction solutions for flush DIN7991 assembly, delivering practical operation standards for machinery manufacturers, mold workshops and mass assembly production lines worldwide.
2. Basic Requirements For Flush DIN7991 Assembly
Two essential conditions must be satisfied to achieve fully flush mounting:
1. The countersink angle, diameter and depth must match the 90° conical head of DIN7991. 82° countersink bits cannot be used, as mismatched angles prevent full contact between head and workpiece.
2. Screw length must fit plate thickness properly. Sufficient thread engagement is required, while the shank must not bottom out and lift the screw head upwards.
Any parameter deviation will lead to uneven surfaces. Over-tightening to force the screw into position is never acceptable.
3. Step-by-Step Installation For Flush DIN7991 Mounting
Step 1: Machine standard countersink and tapped hole Use a 90° countersink bit to form the conical recess. The maximum diameter and depth of the countersink shall match the selected DIN7991 size. Clear all metal chips and burrs inside the hole to guarantee smooth contact surface. Rough or angled countersinks lead to tilted and protruding screw heads.
Step 2: Verify screw specification and length Check thread size and overall length. Ensure the conical head can fully seat after threading engagement, leaving adequate bottom clearance to avoid shank bottoming. Conduct trial fitting before mass assembly.
Step 3: Select matched hex socket tool Use properly sized high-quality Allen keys. Maintain steady downward pressure while turning to prevent tool slipping and socket damage. Never use undersized tools.
Step 4: Pre-tighten evenly then apply calibrated torque Turn the screw manually until the conical head contacts the countersink surface, then tighten gradually with a torque wrench according to material and size specifications. Violent one-step tightening easily causes workpiece cracking and screw head breakage.
Step 5: Final flushness inspection Qualified assembly requires the screw head to sit level with workpiece surface, without visible protrusion or excessive sinking. The conical face fits tightly against the countersink with no obvious gaps. Use a straight edge for flatness verification.
4. Reference Countersink Dimensions For Standard DIN7991
This chart applies to Grade 8.8 / 10.9 carbon steel and A2 / A4 stainless steel DIN7991 for general steel and aluminum workpieces.
DIN7991 Size | Max Head Diameter dk | Recommended Countersink Diameter | Countersink Angle | Applicable Workpiece |
M3 | 5.6mm | 5.8–6.0mm | 90° | Mini instruments, electronic housings |
M4 | 7.5mm | 7.8–8.0mm | 90° | Small automation modules, aluminum profiles |
M5 | 9.2mm | 9.5–9.8mm | 90° | General machine frames, mold accessories |
M6 | 11.0mm | 11.3–11.6mm | 90° | Heavy tooling, equipment fixing plates |
M8 | 14.5mm | 14.8–15.2mm | 90° | Mold plates, large mechanical structural parts |
5. Common Installation Mistakes & Corrective Solutions
Mistake 1: Using 82° countersink bits for DIN7991 Risk: Mismatched cone angle creates partial contact, leading to tilted and protruding heads. Solution: Only 90° countersink bits are permitted for DIN7991 machining.
Mistake 2: Over-tightening to flatten protruding screws Risk: Excessive torque causes head fracture or aluminum substrate cracking, permanently damaging components. Solution: Check countersink dimension and screw length instead of increasing torque.
Mistake 3: Leaving chips and burrs inside countersink holes Risk: Debris lifts the screw head and creates gaps between conical surfaces. Solution: Clean and deburr countersink recesses completely after drilling.
Mistake 4: Sharing countersink design for DIN7991 and DIN912 Risk: The two screw types have completely different head geometry; shared machining cannot achieve flush fitting. Solution: Separate countersink drawings for different screw standards.
6. Conclusion
Successful flush DIN7991 assembly relies on three core factors: 90° standard countersink machining, accurate screw length selection and controlled torque tightening. Following the full workflow of hole machining, specification verification, tool selection, gradual tightening and flatness inspection eliminates mechanical interference risks, prevents socket stripping and workpiece cracking, and meets strict appearance and mechanical requirements for precision molds and automated equipment.
7. FAQ
Q1: Is 90° countersink bit mandatory for DIN7991? A: Yes. DIN7991 features a standard 90° conical head. 82° recesses cannot achieve full contact, resulting in tilted and protruding heads.
Q2: Can I increase torque to flatten slightly protruding DIN7991? A: Not recommended. Extra torque may break the screw head or crack aluminum substrates. Always check countersink size and screw length first.
Q3: Can countersinks for DIN7991 and DIN912 be interchanged? A: No. DIN912 is cylindrical cap head while DIN7991 is conical countersunk head. Their head geometries are incompatible, so countersink designs cannot be shared.
