DIN933 Bolt Application Limits in High-Temperature Equipment

1. Introduction

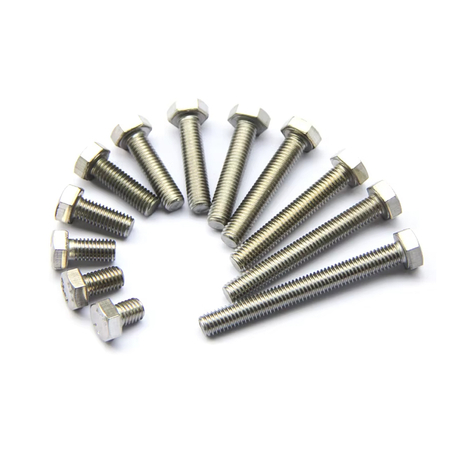

DIN933 hex bolts are the most common full-thread standard fasteners for mechanical assembly, structural fixing and general equipment connection. Due to their versatile specifications and low cost, many engineers directly apply DIN933 bolts to high-temperature equipment such as industrial furnaces, heat conduction pipelines, high-temperature casings and thermal cycling devices without professional verification.

In fact, ordinary carbon steel DIN933 bolts have clear high-temperature usage limits. Long-term service beyond the temperature threshold will cause thermal softening, creep deformation, preload attenuation and thread loosening, leading to equipment leakage, structural vibration and even safety accidents. This article systematically explains the high-temperature tolerance standards of different grades of DIN933 bolts, analyzes application risks, and provides matching alternative solutions for high-temperature working conditions.

2. How High Temperature Damages DIN933 Bolts

High-temperature working conditions will permanently change the mechanical structure of standard DIN933 bolts, mainly reflected in the following four aspects:

2.1 Thermal Softening & Strength Reduction Ordinary carbon steel bolts will gradually reduce in hardness and tensile strength when the ambient temperature exceeds 100℃. The higher the temperature, the more obvious the softening phenomenon, resulting in insufficient bearing capacity.

2.2 High-Temperature Creep Deformation Under long-term high temperature and constant preload, DIN933 bolts will produce slow plastic creep elongation. The bolt length increases and the clamping force drops rapidly, causing loose connection gaps.

2.3 Thermal Expansion & Thread Mismatch Bolts and matrix materials have different thermal expansion coefficients. High temperature causes thread fit deviation, increased friction, jamming or loosening during thermal cycling.

2.4 Oxidation & Surface Cracking Uncoated carbon steel DIN933 bolts are prone to rapid surface oxidation and decarbonization at high temperatures, resulting in thread corrosion and fatigue cracking.

3. High-Temperature Resistance Limit of DIN933 Different Grades

Different strength grades of DIN933 hex bolts have completely different safe temperature ranges, which is the core basis for engineering selection.

4. Common Safety Risks of Misusing DIN933 in High-Temperature Equipment

4.1 Continuous Preload Loss After long-term high-temperature operation, the bolt creep causes permanent elongation. Even if retightened, the clamping force cannot be maintained stably, resulting in equipment vibration and gap leakage.

4.2 Fatigue Fracture Under Thermal Cycle Frequent temperature rise and fall produce alternating thermal stress. Standard DIN933 bolts lack high-temperature fatigue resistance and are easy to break at the thread root.

4.3 Thread Seizure & Disassembly Failure High-temperature oxidation causes thread adhesion and galling. DIN933 bolts are difficult to disassemble in later maintenance, and the thread is easy to be scrapped during forced disassembly.

5. High-Temperature Working Condition Replacement Scheme

When the equipment temperature exceeds 300℃, all standard carbon steel DIN933 bolts must be replaced with professional high-temperature fasteners:

5.1 300℃–500℃ Working Condition Replace with ASTM A193 B7 / B16 alloy steel stud bolts and hex bolts, with stable creep resistance and high-temperature tensile strength.

5.2 500℃–800℃ Working Condition Use 310S stainless steel or Incoloy high-temperature alloy fasteners to resist ultra-high temperature oxidation and thermal deformation.

5.3 Thermal Cycling Equipment Abandon full-thread DIN933 bolts and adopt half-thread high-temperature bolts to reduce thermal stress concentration and improve connection stability.

6. Standard Usage Tips for DIN933 in Medium-Temperature Environment

For non-overlimit medium-temperature scenarios (below 200℃) where DIN933 must be used, follow the standard specifications to extend service life:

1. Adopt hot-dip galvanizing or high-temperature anti-oxidation coating to reduce surface oxidation and decarbonization;

2. Appropriately reduce the torque preload to reserve thermal expansion gap;

3. Add high-temperature resistant gaskets to buffer thermal deformation;

4. Regularly check and retighten bolts after equipment temperature stabilization.

7. Conclusion

Standard DIN933 hex bolts have clear high-temperature application limits. Conventional 4.8/8.8/10.9/12.9 grade carbon steel bolts are only suitable for normal temperature and medium-temperature environments below 300℃. Any high-temperature equipment exceeding the threshold must use professional alloy high-temperature fasteners. Engineers must strictly distinguish working temperature boundaries to avoid equipment failure and safety hazards caused by material misselection.

8. FAQ

Q1: Can 12.9 grade DIN933 bolts be used for boiler high-temperature connections? A: No. Although 12.9 grade has the highest temperature resistance in DIN933 series, it is still a carbon steel material, unable to withstand long-term boiler high-temperature creep. Professional alloy high-temperature bolts are required.

Q2: Will galvanized DIN933 bolts fail faster in high-temperature environments? A: Yes. Ordinary electro-galvanized layer will decompose and fall off above 120℃, losing anti-rust effect and accelerating thread oxidation failure.

Q3: Is bolt loosening inevitable after high-temperature heating and cooling? A: Thermal cycling will cause preload loss. Regular inspection and secondary tightening are necessary for medium-temperature DIN933 bolt connections.
