1. Core Differences Between DIN471 and DIN472 Circlips
DIN471 refers to external circlips for shafts. It is fitted into the groove on the outer diameter of a shaft. You need to expand the ring during installation, and it relies on inward spring force to clamp the shaft. DIN472 refers to internal circlips for bores. It fits into the groove inside a housing or bore. You need to compress the ring during installation, and it relies on outward spring force to hold against the bore wall. The lug orientation, section size, groove depth and groove width are designed separately. They are not interchangeable.

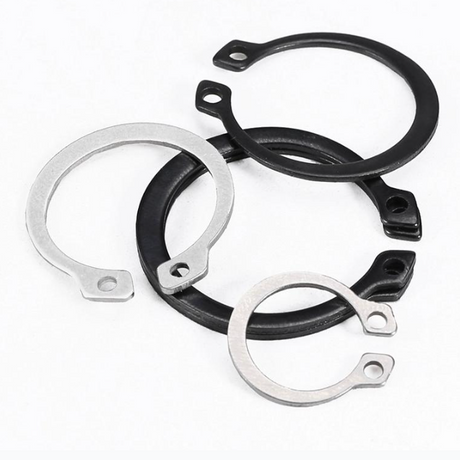

DIN471 (Shaft type): Nominal size = shaft diameter, groove machined on shaft surface, used for bearing and bushing retention on shaft. Product link: [DIN471]
DIN472 (Bore type): Nominal size = bore diameter, groove machined inside bore, used for internal component retention in housing
A common mistake for overseas maintenance clients: they assume the rings can be replaced directly if the nominal value is the same, ignoring groove location and spring direction.
2. Failure Phenomenon & Root Causes of Mismatched Circlips
2.1 Typical Failure Symptoms
The circlip cannot seat tightly and pops out easily under minor vibration.
The circlip stays assembled temporarily but loses axial holding capacity, and parts shift after running.
Permanent deformation and opening expansion, loss of elastic function.
Rejected at incoming inspection due to wrong selection, whole batch refused.
2.2 Root Causes
Opposite spring direction: Shaft circlip clamps inward, and it has no outward supporting force when placed inside a bore; bore circlip expands outward and cannot grip the shaft.
Mismatched groove geometry: Even with the same nominal size, the groove diameter, depth and width specified for DIN471 and DIN472 are different. The ring cannot fully sit in the groove.
Wrong installation pliers: Shaft circlip pliers and bore circlip pliers cannot be shared. Forced assembly will cause permanent deformation.
3. Standard Selection Checklist for Overseas Repair Orders
3.1 Step 1: Confirm installation location
Check whether the groove is on the shaft or inside the bore/housing.
3.2 Step 2: Verify groove dimensions
Do not only check nominal diameter. Measure groove diameter, groove width and groove depth, and cross-check against the corresponding standard. Even if the standard part is correct, out-of-tolerance machining of the groove will still cause ejection.
3.3 Step 3: Confirm working condition & material
Spring steel is the standard general grade. Stainless steel circlips deliver weaker spring force, suitable for mild corrosion and low load scenarios, not for heavy impact and continuous vibration. For replacement maintenance orders, match the original material first.
Mark clearly on PI, packing list and product label: Shaft circlip DIN471, to prevent misuse by clients after receiving goods.
4. Common Selection Mistakes
Mistake: Same nominal size means interchangeable. Correction: DIN471 and DIN472 belong to independent dimension systems, not interchangeable.
Mistake: Order same size circlip only by equipment model when original part is lost. Correction: Confirm groove location for maintenance replacement. Original part photo or groove drawing is required.
Mistake: Modify groove or bend circlip for forced fitting. Correction: Modified groove or bent circlip loses elasticity. It may fit temporarily but will fail in service.
Mistake: DIN471 works for both shaft and bore. Correction: DIN471 is designed only for external shaft grooves, not for bore retention.
5. FAQ
Q1: Do DIN471 and DIN472 share the same groove parameters at identical nominal size? A1: No. For the same nominal size, DIN471 shaft circlips and DIN472 bore circlips have independent standard values for groove diameter, depth and width, and they cannot fit into one shared groove.
Q2: Client says DIN471 circlip keeps falling off, is it a quality defect? A2: Not necessarily. Check these points first: whether groove dimensions comply with DIN471, whether it is mistakenly installed in bore, whether over-expansion caused permanent deformation, and whether axial load exceeds ring rating.
Q3: What tips should we send to clients for maintenance replacement? A3: Remind clients to distinguish shaft type and bore type, use matching circlip pliers, avoid mixing DIN471 and DIN472, and inspect groove size before assembly.
