In modern construction engineering, the efficiency and reliability of fastening systems directly influence structural integrity, labor productivity, and project timelines. Among the critical components used in both structural and non-structural connections, the threaded rod stands out for its versatility, strength, and standard adaptability across various materials and installation conditions.
Identifying Project Requirements: Load, Node Location, and Environmental Conditions
Effective threaded rod selection begins with an accurate understanding of the application environment and structural needs. Making the right decision upfront not only improves load-bearing performance but also reduces future maintenance, improves installation speed, and minimizes structural risk. The three primary factors to consider are:
1. Load Requirements
The mechanical performance of a threaded rod is highly dependent on the loads it is expected to carry. Engineers must determine the axial tensile and compressive forces acting on each connection point. In addition, dynamic loads—common in high-rise buildings, bridges, or mechanical equipment—must be accounted for, especially in areas exposed to wind, vibration, or seismic activity. For such critical joints, ASTM A193 B7/B7M threaded rods or SAE J429 threaded rods with high tensile ratings are often the best choice. Shear resistance and the ability to withstand lateral forces on anchors and brackets must also be factored in, particularly in structural nodes and foundation connections.
2. Node Position and Structural Layout
Understanding how and where the threaded rod will be installed is crucial. Congested nodes, such as beam-column joints or mechanical anchor bases, often require custom-length rods with factory-attached hardware to reduce on-site assembly. For ceiling or MEP support systems, DIN975 threaded rods offer full-length threading, which allows for precise vertical adjustments during installation. In tight access areas, using pre-cut rods with pre-installed washers and nuts helps save time and ensures proper torque application, especially when installation is done in elevated or confined spaces.
3. Climatic and Corrosive Environment

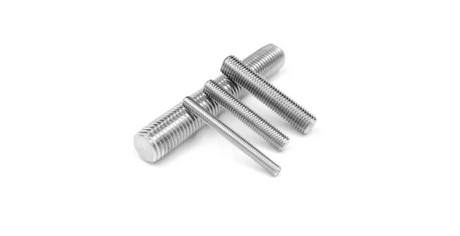

The environment where the threaded rod will be exposed plays a critical role in material selection. In humid, coastal, or chemically aggressive environments—such as desalination plants, offshore facilities, or wastewater stations—corrosion-resistant materials are essential. ASTM A193 B8 or B8M stainless steel threaded rods are ideal for such conditions, providing long-term durability without rusting. In dry indoor settings, carbon steel threaded rods with zinc plating or epoxy coatings are sufficient and more cost-effective. For high-temperature installations, such as boiler rooms or solar farms, engineers often select ASTM A193 B16/B16M threaded rods due to their superior heat resistance.
Quick Deployment with DIN975/DIN976 Threaded Rods
The DIN975 and DIN976 threaded rods are some of the most widely used fasteners in European and international construction standards due to their full-length threading, ease of modification, and compatibility with metric accessories. These rods are particularly valued for their flexibility and efficiency on construction sites, making them a go-to choice for a variety of applications.
Advantages for Site Installation:
1.Quick Cut-to-Length Capability Using On-Site Tools
The versatility of DIN975 and DIN976 threaded rods allows for quick and easy cutting on-site with standard tools, reducing the need for pre-measuring and additional equipment. This ability to adjust the rod length to meet specific project requirements helps minimize downtime and delays during the construction process.
2.Compatibility with Standard M6–M30 Nuts and Washers
These threaded rods are designed to fit seamlessly with M6–M30 nuts and washers, making them easily available globally. This compatibility streamlines the procurement process, ensuring that the necessary hardware is readily accessible for contractors, regardless of location.
3.Ideal for Pre-Fabricated Bracket Systems
DIN975 and DIN976 rods are well-suited for pre-fabricated bracket systems used in Mechanical, Electrical, and Plumbing (MEP) installations. Their continuous threading allows for precise fine-tuning of bracket elevation during the installation of HVAC systems and piping networks, ensuring alignment accuracy and reducing the likelihood of costly rework.
Efficient Use Cases in Construction:
1.Suspended Ceilings and Ductwork
The rods are ideal for securing suspended ceilings and ductwork, often used with U-channel clips for fast and stable installation. Their adjustability simplifies the alignment process, ensuring a level finish in critical areas.
2.Mechanical Room Assemblies
Modular skid systems in mechanical rooms benefit from the uniformity of DIN975 rods, facilitating easy coordination during assembly and ensuring consistent structural integrity.
3.Temporary Formwork Bracing
Contractors frequently select DIN975 rods for temporary formwork bracing due to their adjustability, which allows them to be reused multiple times in different projects. This flexibility and reuse potential contribute to cost savings and waste reduction.
Tool Compatibility with SAE J429 Threaded Rods
The SAE J429 standard outlines the mechanical properties for inch-series threaded fasteners commonly used in North American markets. Among these, SAE J429 threaded rods—particularly Grades 2, 5, and 8—are widely implemented in construction and mechanical industries due to their reliable strength, broad compatibility, and tool-friendly characteristics.
Installation Advantages:
One of the key benefits of SAE J429 threaded rods lies in their seamless compatibility with American-made tools, including impact wrenches, socket heads, and torque-limiting tools. This feature ensures quick, consistent installations, especially on large-scale job sites where efficiency is critical.
The imperial sizing of these rods means contractors can use readily available nuts and washers, eliminating delays due to hardware mismatches or special-order components. Additionally, these rods provide exceptional torque resistance, making them suitable for high-preload applications such as steel structure flanges, bridge deck bracing, and heavy equipment anchoring.
Strength Profile by Grade:
Grade 2: Designed for general-purpose use, particularly in wood framing, light-duty brackets, and non-critical mechanical assemblies.
Grade 5: Offers medium tensile strength (~120 ksi), ideal for machinery base plates, structural steel frames, and modular skids.
Grade 8: Known for high tensile strength (~150 ksi), frequently used in seismic bracing systems, tower structures, and high-stress fabrication joints.
Contractors value SAE J429 threaded rods for their robust performance under load, especially when high torque is required. Their compatibility with torque-calibrated pneumatic and electric tools not only increases installation speed but also ensures uniform joint clamping, enhancing structural stability and safety across the board.
Whether for permanent steel connections or temporary construction supports, SAE J429 threaded rods offer a versatile and dependable fastening solution, especially in regions where imperial units dominate construction standards.
Integrated Selection: Washers, Nuts, and Threaded Rod Compatibility
One often overlooked aspect of threaded rod efficiency is the selection of accessories—especially nuts and washers that can significantly impact load distribution and installation speed.
Key Selection Considerations:
Use flat washers with outer diameter 2x the rod diameter to prevent pull-through and enhance load spread.
Choose lock nuts or double-nut configurations in vibration-prone areas (e.g., rooftops, HVAC skids).
Always ensure that material compatibility exists between the threaded rod and its nut—e.g., stainless nut for stainless rod to prevent galling or corrosion mismatch.

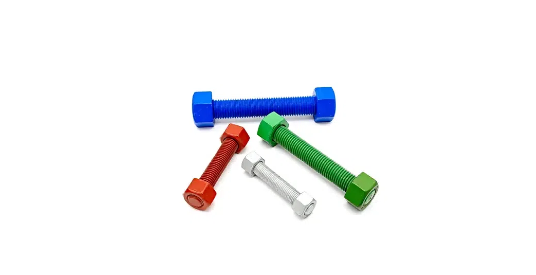

In exposed conditions, opt for coated or polymer-treated nuts to match corrosion resistance.
Integrated Packaging Tips:
Procurement from suppliers like Ningbo Topbolt Metalworks Co., Ltd. allows contractors to receive pre-packaged rod kits, each including:
Correct thread-matched nuts and washers
Cut-to-length threaded rods
Certifications for material grade and surface treatment
This integrated approach dramatically improves installation logistics and prevents mismatches during time-critical operations.
Conclusion
As construction becomes more modular, fast-paced, and environmentally demanding, the threaded rod remains a fundamental yet flexible connector for builders and engineers. By applying standards like DIN975, SAE J429, and ASTM A193, and by integrating rod selection with accessory and tool planning, construction teams can significantly improve efficiency and reliability.
For cost-effective, high-performance threaded rod solutions that align with modern construction needs, look no further than Ningbo Topbolt Metalworks Co., Ltd.—your partner in building with strength and speed.
