Different Tip Types Of Set Screws And Their Matching Equipment Positioning Scenarios

1. Introduction

Hex socket headless set screws, commonly known as grub screws, are core positioning fasteners for precision automation equipment, motor transmission systems, molds and instrumentation devices. Adopting a fully threaded headless structure, they can prevent shaft rotation, limit axial displacement and adjust assembly gaps. After installation, they sink completely into the threaded hole without protruding or occupying extra space, ensuring no assembly interference.

Most buyers and technicians only focus on thread specifications and strength, ignoring the critical differences in tip structures. Flat, cone, dog and cup point set screws have distinct locking principles, stress modes and application scenarios. Wrong selection will cause shaft surface damage, positioning slippage, vibration loosening and equipment precision deviation, leading to parts scrapping and equipment shutdown.

In accordance with DIN, ISO and GB standards, this article systematically analyzes the structural characteristics, advantages and applicable scenarios of four mainstream set screws, with professional diagrams and physical pictures for reference, providing standardized selection rules and practical avoidance tips for overseas procurement and on-site assembly.

2. Basic Overview & Industry Standards

Set screws are headless and fully threaded, with an internal hex drive for tightening. The functional tip determines the locking performance. They are widely used in shaft fixing, gear positioning and mold adjustment due to their compact structure and high positioning accuracy. The unified international standards for four tip types are as follows:

• Flat point: DIN 913 / ISO 4026 / GB/T 77

• Cone point: DIN 914 / ISO 4028 / GB/T 78

• Dog point: DIN 915 / ISO 4029 / GB/T 79

• Cup point: DIN 916 / ISO 4027 / GB/T 80

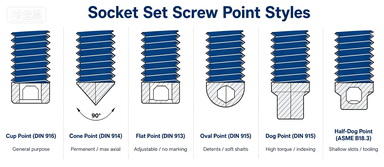

3. Structural & Performance Analysis of Four Tip Types

3.1 Flat Point Set Screw

The flat contact surface ensures uniform stress distribution without scratching or indenting the shaft surface. It supports repeated disassembly and gap adjustment, making it the best choice for high-precision equipment. The main disadvantage is weak vibration resistance, as it only relies on friction locking.

Application: Precision instruments, polished smooth shafts, adjustable tooling equipment requiring frequent debugging.

3.2 Cone Point Set Screw

The 90° tapered tip realizes automatic centering by embedding into pre-machined shaft taper holes, featuring simple installation and accurate static positioning. However, the sharp tip will damage smooth shaft surfaces and leave permanent indentations after repeated use.

Application: Simple static positioning, small gear fixing, shaft end centering for ordinary mechanical equipment.

3.3 Dog Point Set Screw

The protruding cylindrical tip forms a rigid mechanical limit by clamping into shaft grooves, achieving zero-slip locking. It provides excellent anti-vibration performance and stable long-term positioning, which is irreplaceable for heavy-duty vibrating equipment. Pre-machined shaft grooves are required for assembly.

Application: Motor drive shafts, high-speed spindles, vibrating engineering machinery, heavy-duty positioning structures.

3.4 Cup Point Set Screw

The concave cup-shaped edge forms annular occlusion with the shaft surface, providing stronger friction locking than flat and cone point screws. With no need for shaft grooving, it has strong versatility and cost performance, suitable for most general industrial equipment with minor shaft indentation allowed.

Application: General machinery, reducer gears, packaging equipment, semi-permanent fixed structures.

4. Multi-Dimensional Performance Comparison Table

5. Professional Selection Rules

Flat point screws are exclusively used for high-precision scenarios requiring zero shaft damage and frequent adjustment.

Cone point screws are suitable for low-cost, simple static positioning and shaft centering tasks.

Dog point screws are mandatory for high-speed, vibrating and heavy-duty transmission structures that require zero displacement.

Cup point screws are the universal cost-effective option for most general mechanical assembly scenarios.

6. Common Procurement & Assembly Mistakes

Using cone or cup point screws on precision smooth shafts causes irreversible surface damage. Applying flat point screws on vibrating equipment leads to positioning failure due to friction attenuation. Using dog point screws on ungrooved shafts results in complete locking failure. Confusing DIN, ISO and GB standards causes size mismatch and assembly failure for overseas orders. Adopting low-strength screws for heavy-duty working conditions brings potential safety hazards.

7. Conclusion

Each set screw tip type has its unique advantages and fixed applicable scenarios. Flat point protects precision surfaces, cone point simplifies static positioning, dog point ensures extreme anti-vibration stability, and cup point provides universal cost-effective locking. Accurate selection according to actual working conditions is the key to ensuring assembly precision and long-term equipment operation stability. Our factory provides full-standard set screws compliant with DIN, ISO and GB specifications to meet global equipment supporting and procurement needs.

8. Frequently Asked Questions (FAQ)

Q1: Which set screw does not scratch the shaft surface? A: The flat point set screw has a smooth and flat contact surface with uniform force, leaving no indentation or scratch on the shaft, which is the best choice for precision polished shafts.

Q2: Which set screw is suitable for high-frequency vibration equipment? A: Dog point set screw is the first choice with rigid mechanical anti-slip structure. Cup point set screw is an ideal alternative for equipment without shaft grooves.

Q3: What is the core difference between dog point and cup point set screws? A: Dog point screws rely on mechanical groove clamping for zero-slip vibration resistance but require shaft grooving. Cup point screws adopt annular friction occlusion with strong versatility but cause slight shaft indentation.

Q4: What standards are applicable for European and American orders? A: DIN series standards are widely used in European and American markets, which are interchangeable with ISO 4026-4029 international standards.
