J-type Foundation Anchor Bolt: Embedded Length & Concrete Base Design

1. Introduction

J-type foundation anchor bolt is a pre-embedded fastener specifically designed for securing heavy equipment, steel structures, and machinery bases to concrete foundations. Its distinctive J-shaped bent end provides superior pull-out resistance by mechanically anchoring inside the concrete, making it one of the most reliable and widely used anchor bolt types in industrial construction.

NINGBO TOPBOLT METALWORKS CO., LTD supplies J-type foundation anchor bolts in full size range from M12 to M64, with custom lengths, material grades, and surface treatments available to meet various project specifications.

2. What Is J-type Foundation Anchor Bolt?

2.1 Standard Definition

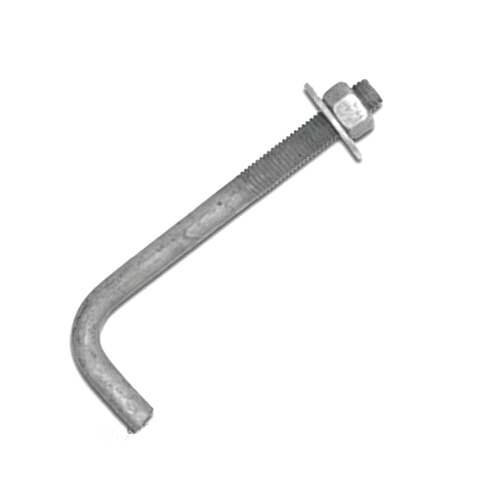

J-type anchor bolt, also known as J-hook anchor bolt or bent-end foundation bolt, is a type of cast-in-place anchor bolt with one end bent into a J shape at approximately 90 degrees. The bent end is embedded in concrete during pouring, while the threaded end protrudes above the foundation surface to receive a nut for securing the equipment or structural base plate.

Common reference standards include GB/T 799 (Chinese standard for foundation bolts), DIN 529, and various project-specific specifications. The J-bend design provides mechanical interlock with concrete, offering much higher pull-out capacity than straight anchor rods.

2.2 Structural Features

• J-shaped bent end for mechanical anchorage in concrete

• Straight shank with threaded section at the opposite end

• Cast-in-place installation — embedded before concrete pouring

• High pull-out resistance through concrete interlock

• Available in various bend radii and leg lengths

• Typically supplied with matching hex nuts and flat washers

3. Dimension & Embedded Length Specification

3.1 Common Size Range

J-type anchor bolts are manufactured in a wide range of sizes to accommodate different load requirements. The table below lists common specifications and typical applications.

3.2 Embedded Length Calculation

The embedded length of a J-type anchor bolt is critical for ensuring sufficient pull-out resistance. The minimum embedded length depends on the bolt diameter, concrete strength, and design load. A common rule of thumb is:

• Minimum embedded length: 15–20 times the bolt diameter (e.g., M24 → 360–480mm minimum embedment)

• J-bend length: typically 4–6 times the bolt diameter

• Concrete cover: minimum 50mm from the bend to the concrete edge

• Edge distance: minimum 10–15 times bolt diameter to prevent concrete splitting

For critical applications, the embedded length should be calculated by a structural engineer based on the specific concrete compressive strength, steel yield strength, and required pull-out load.

4. Material & Strength Grade Options

5. Installation Process

5.1 Pre-embedding & Positioning

Accurate positioning is the most critical step in J-type anchor bolt installation:

1. Set up the foundation formwork according to construction drawings

2. Mark the exact positions of each anchor bolt on the formwork or positioning template

3. Fix the anchor bolts in position using a steel positioning plate or welding to reinforcement bars

4. Verify bolt spacing, elevation, and verticality with surveying instruments

5. Protect the threaded ends with tape or plastic caps to prevent concrete contamination

Critical Note: Positioning tolerance is typically ±2mm for bolt center distance and ±5mm for elevation. Any deviation beyond tolerance may prevent the equipment base plate from aligning properly.

5.2 Concrete Pouring

During concrete pouring, vibration should be applied carefully around the anchor bolts to ensure full compaction without displacing them. Avoid direct impact from the concrete pump or vibrator on the bolt positioning framework. After pouring, verify bolt positions again while the concrete is still workable, and correct any displacement immediately.

5.3 Secondary Grouting

After the equipment is placed on the foundation and roughly leveled, a secondary grouting layer (typically 30–80mm thick) is poured between the foundation surface and the equipment base plate. This grout layer ensures uniform load transfer and compensates for any foundation surface irregularities. Only after the grout has reached sufficient strength should the anchor bolts be finally tightened to the specified torque.

6. Common Applications

• Industrial machinery bases: Pumps, compressors, generators, gearboxes, and machine tools

• Steel structure columns: Building columns, factory sheds, warehouse frames

• Power generation equipment: Turbines, generators, transformer bases

• Petrochemical equipment: Reactor vessels, heat exchangers, tower foundations

• Material handling systems: Conveyors, cranes, elevator structures

• Bridge and infrastructure: Guardrail posts, sign structures, utility poles

7. Common Installation Mistakes & Solutions

7.1 Insufficient Embedded Depth

Problem: Anchor bolts pull out under load due to insufficient concrete embedment. Solution: Follow the minimum 15d embedment rule; for high loads, increase embedment to 20d–25d or add a steel plate washer at the bent end.

7.2 Bolt Position Deviation

Problem: Equipment base plate holes do not align with anchor bolts after concrete curing. Solution: Use precision positioning templates; double-check positions before and after concrete pouring; for minor deviations, enlarge the base plate holes or use slot holes.

7.3 Thread Damage During Construction

Problem: Threads contaminated with concrete or damaged by impact, making nut installation difficult. Solution: Always protect threaded ends with plastic caps or tape during construction; clean threads with a wire brush and die before nut installation.

7.4 Concrete Edge Splitting

Problem: Concrete cracks or splits near the foundation edge when bolts are tensioned. Solution: Maintain minimum edge distance of 10d–15d; use supplementary reinforcement near edges; consider L-type or anchor plate design for edge conditions.

8. Surface Treatment Options

9. Frequently Asked Questions

Q1: What is the difference between J-type and L-type anchor bolts?

J-type anchor bolts have a tighter bend radius with the bent end pointing back toward the shank (J shape), while L-type has a simple 90-degree right-angle bend (L shape). J-type generally provides better pull-out resistance due to the hooked configuration, while L-type is simpler to manufacture and install.

Q2: Can J-type anchor bolts be used for post-installed applications?

No. J-type anchor bolts are cast-in-place anchors and must be embedded before concrete pouring. For post-installed applications in existing concrete, use mechanical expansion anchors, chemical anchors, or undercut anchors instead.

Q3: How do I determine the correct anchor bolt length for my project?

The total length = embedded depth + foundation thickness + base plate thickness + nut height + washer thickness + exposed thread (minimum 2–3 threads above nut). Always consult the project design drawings and verify with the equipment manufacturer requirements.

Q4: What torque should be applied to J-type anchor bolts?

Torque values depend on the bolt grade, diameter, and lubrication condition. For common grades: M20 Grade 8.8 ≈ 280–350 Nm, M24 Grade 8.8 ≈ 480–600 Nm, M30 Grade 8.8 ≈ 950–1200 Nm. Always refer to the equipment manufacturer specification or design calculation.

Q5: Can custom J-type anchor bolts be manufactured according to our drawings?

Yes. NINGBO TOPBOLT METALWORKS CO., LTD offers fully custom J-type anchor bolts including non-standard diameters, custom bend radii, special lengths, various material grades, and multiple surface treatments. Provide your drawing or specification for a quotation.
