YJT 3020 M6-M12 Carbon Steel Spring Nut Full Sourcing Guide

1. Introduction

YJT 3020 spring nuts are special elastic fasteners for standard C strut channels, with mainstream mass production sizes M6, M8, M10 and M12. Carbon steel versions are the most widely used basic accessories for solar brackets, electrical cabinets and HVAC pipe supports.

YJT 3020 M6-M12 Carbon Steel Spring Nut adopts an integrated spring clip design. It can be directly slid into C channel without welding or pre-drilling, greatly shortening on-site installation time. Most overseas buyers confuse YJT3020 with non-standard spring nuts, mismatched sizes will cause nut slipping, bracket loosening and load collapse risks.

This professional sourcing guide is compiled by the TOPBOLT technical team, with 15 years of experience manufacturing strut fasteners and supplying overseas photovoltaic & mechanical engineering projects. All parameters follow widely accepted mass production industry standards, covering dimension specs, material performance, surface finishes, channel matching, installation procedures and common sourcing solutions.

2. YJT 3020 Structure & Full Size Load Chart

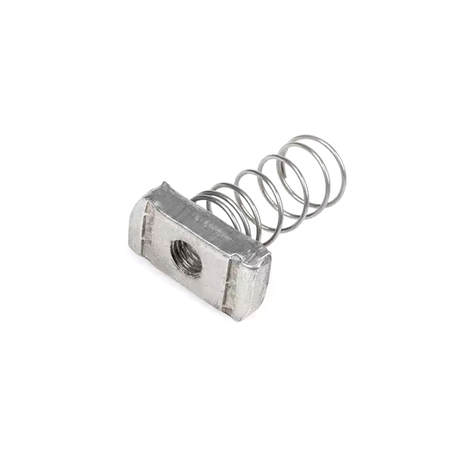

YJT 3020 is designed for 30×20 C type strut channels, stamped carbon steel body with 65Mn manganese steel spring clip to lock firmly inside the channel and prevent offset or sliding.

Model 3020 represents channel dimension 30mm width × 20mm height, it cannot be used interchangeably with larger strut channels such as 41×21 or 41×41.

3. Carbon Steel Material Performance & Selection Rules

3.1 Main Body Carbon Steel

The main body is stamped from Q235 cold rolled carbon steel, featuring good formability and moderate hardness. It is cost-effective for indoor dry workshops, inland solar power stations and indoor electrical cable trays.

3.2 Spring Clip Manganese Steel

65Mn manganese steel spring clips maintain stable elasticity after repeated disassembly, resisting fatigue failure under long-term vibration to keep the nut tightly fitted to channel inner walls.

3.3 Carbon Steel VS Stainless Steel Version

Carbon Steel YJT3020 Spring Nut offers obvious cost advantages for dry and inland environments. For coastal salt spray and chemical corrosive conditions, A2 / A4 stainless steel YJT3020 is recommended to avoid rust and fracture.

4. Surface Finish Matching Guide For Carbon Steel Models

Blue White Zinc Plating: Indoor dry cabinets & HVAC supports, 48-hour salt spray resistance, basic low-cost anti-corrosion option.

Color Zinc Plating: Inland outdoor solar & exposed machine racks, 96-hour salt spray performance for medium-term rust protection.

Dacromet Coating: Humid and lightly corrosive outdoor projects, hydrogen embrittlement free, long-lasting anti-rust performance for long-term exposed applications.

Note: Hot dip galvanizing is not recommended for spring nuts, high temperature will permanently reduce elasticity of manganese steel clips.

5. Standard Installation Steps

1. Squeeze the spring clip to narrow overall width, slide vertically into any position of 3020 C channel;

2. Release the clip, manganese steel spring rebounds and locks tightly against channel inner surface, the nut can slide freely to adjust mounting position;

3. Insert matched size bolt, pre-tighten by hand then torque to standard load value with torque wrench;

4. Inspection: Shake the support lightly after full tightening, no sliding or offset means qualified assembly.

Compared with traditional fixed nuts, spring nuts eliminate pre-welding and drilling work, improving construction efficiency by over 60% and allowing later equipment modification at any channel position.

6. Main Application Industries

1. Solar Bracket Systems: Distributed solar and ground solar station 3020 channel cross & vertical frame fixing;

2. Electrical Cable Trays: Low & high voltage cable trays, power distribution cabinet load-bearing supports;

3. HVAC & Fire Protection Pipes: Air duct supports, fire sprinkler pipe hangers;

4. Industrial Equipment Frames: Machine tool racks, automation equipment bases, instrument mounting frames.

7. Common Sourcing & Installation Failures

1. Fitting YJT3020 nuts into 41 series strut channels Risk: Mismatched width leads to loose locking, nut slipping and bracket collapse under load. Solution: Strictly match 3020 nuts with dedicated 30×20 C channels only.

2. Using blue white zinc carbon nuts for outdoor projects Risk: Fast rust in rainy environments, spring clip corrosion loses elasticity and causes equipment loosening. Solution: Upgrade to color zinc or Dacromet coating for all outdoor orders.

3. Spring clip loses elasticity after repeated disassembly Risk: Low-carbon inferior clips suffer fatigue failure and cannot lock nuts steadily. Solution: Confirm 65Mn manganese steel clip material before bulk order placement.

8. Export Certification & Inspection Support

All mass-produced YJT3020 carbon steel spring nuts from TOPBOLT can provide material test reports, tensile load test records and salt spray inspection certificates. Third-party SGS sampling inspection is supported, fully complying with general mechanical fastener standards for overseas solar and HVAC project access requirements.

9. Conclusion

YJT 3020 M6-M12 carbon steel spring nuts are standard elastic fasteners exclusively for 30×20 C strut channels. With Q235 carbon steel body and 65Mn manganese steel spring clips, they balance low cost and easy assembly for solar, electrical and HVAC support systems. Global buyers must verify channel size, thread specification and anti-corrosion coating according to indoor or outdoor working conditions, avoiding structural risks caused by mismatched dimensions or insufficient rust resistance. Standardized selection ensures long-term stable performance of all support structures.

10. FAQ

Q1: Can YJT3020 spring nuts fit 41×21 strut channels? A: No. YJT3020 is designed for 30mm width channels only. Mismatched channel size will cause unstable locking and slipping under load.

Q2: What surface finish is suitable for outdoor solar carbon steel spring nuts? A: Color zinc plating works for dry inland solar farms; Dacromet coating is recommended for humid coastal areas for longer anti-rust service life.

Q3: Why is 65Mn manganese steel required for spring clips? A: 65Mn maintains consistent elasticity after repeated assembly and disassembly, low carbon steel clips will fatigue and lose locking performance quickly.
