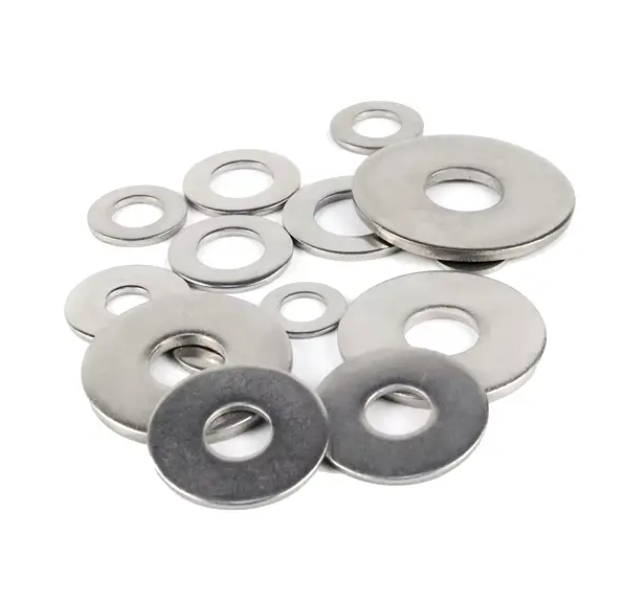

Flat washers are fundamental components in the realm of fastening and assembly. Their primary function is to distribute the load of threaded fasteners like bolts and nuts, preventing damage to the assembled surfaces and ensuring a secure fit. Understanding the various sizes of flat washers is crucial for engineers, manufacturers, and DIY enthusiasts alike. This article delves into the dimensions, standards, and applications of flat washers, providing a comprehensive analysis of their sizes and how to select the appropriate one for specific needs. Flat Washers play an indispensable role in numerous industries, and their sizes are as varied as their uses.
Standards Governing Flat Washer Sizes
Flat washers are produced according to various international standards to ensure compatibility and reliability across different applications. The most recognized standards include the American National Standards Institute (ANSI), Deutsches Institut für Normung (DIN), British Standards (BS), and the International Organization for Standardization (ISO). Each of these standards specifies dimensions, materials, and tolerances for flat washers.
ANSI Standards
In the United States, the ANSI standards provide detailed specifications for flat washers. The most common ANSI standards for flat washers are ANSI B18.22.1 for plain washers and ANSI B18.21.1 for lock washers. These standards define dimensions such as the inside diameter (ID), outside diameter (OD), and thickness for different washer sizes, typically correlating with the bolt or screw size they accompany.
DIN and ISO Standards
European standards like DIN and ISO also specify washer sizes. For instance, DIN 125 and ISO 7089 are commonly referenced for metric flat washers. While similar, slight differences between DIN and ISO standards can affect compatibility, making it essential to reference the correct standard during selection.
Common Sizes of Flat Washers
Flat washers come in a wide range of sizes to match various bolt and screw diameters. Sizes are typically designated by the nominal size of the bolt or screw. For example, a 1/4-inch flat washer is designed to be used with a 1/4-inch diameter bolt.
Imperial Sizes
In imperial measurements, common flat washer sizes range from #0 (approximately 0.060 inches in bolt size) up to several inches in diameter. Standard sizes include #4, #6, #8, #10, 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", and 1". Each size correlates with specific inner and outer diameters as well as thicknesses.
Metric Sizes
Metric flat washers are sized according to the nominal thread diameter of the bolt or screw, expressed in millimeters. Common metric sizes include M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M16, M20, and larger. Each metric size has specific dimensions for the inner diameter, outer diameter, and thickness as defined by standards like DIN 125.
Specialty Flat Washer Sizes
Beyond standard sizes, flat washers are available in specialty sizes for specific applications. Oversized washers, also known as fender washers, have a larger outer diameter to distribute load over a greater area. This is particularly useful in preventing pull-through or when working with softer materials.
Fender Washers
Fender washers are characterized by their significantly larger outer diameter compared to standard flat washers. They are commonly used in automotive applications and sheet metal work. Sizes for fender washers can range from small diameters suitable for M3 or 1/8" bolts up to several inches in outer diameter.
Dock Washers
Dock washers are heavy-duty washers with increased thickness and diameter to handle substantial loads. They are used in construction and structural applications where enhanced load distribution is required. Dock washer sizes are typically associated with larger bolt sizes, such as 1/2", 5/8", and 3/4".
Material Considerations and Size Implications
The material of a flat washer can influence its available sizes. Materials like carbon steel, stainless steel, brass, and nylon each have different properties affecting the washer's performance in various environments.
Carbon Steel Washers
Carbon steel washers are popular due to their strength and cost-effectiveness. They are available in a wide range of sizes and are suitable for general-purpose applications. For high-strength requirements, hardened carbon steel washers like those conforming to ASTM F436 are used. These Flat Washers are designed to withstand significant loads and are often used in structural applications.
Stainless Steel Washers
Stainless steel washers offer excellent corrosion resistance, making them suitable for marine and outdoor applications. Sizes for stainless steel washers mirror those of carbon steel but may be limited in very large sizes due to material cost and manufacturing constraints.
Selecting the Right Washer Size
Choosing the correct flat washer size involves considering the bolt size, the material of both the washer and the connected surfaces, and the application's load requirements.
Bolt Diameter Compatibility
The inner diameter of the washer must accommodate the bolt's shank without excessive clearance. A snug fit ensures proper load distribution and alignment. The outer diameter should provide sufficient surface area to distribute the load without interfering with adjacent components.
Load Distribution Requirements
For applications involving softer materials like wood or plastics, a larger outer diameter washer may be necessary to prevent material deformation. In high-stress environments, thicker washers made of hardened materials are preferred to maintain integrity under load.
Custom Sizes and Finishes
Manufacturers like Ningbo Topbolt Metalworks Co., Ltd. offer custom-sized flat washers to meet specific application needs. Customization may include non-standard inner or outer diameters, thicknesses, and materials. Additionally, special finishes such as zinc plating, hot-dip galvanizing, or black oxide are available to enhance corrosion resistance or meet aesthetic requirements.
With advanced manufacturing capabilities, custom Flat Washers can be produced to comply with specific industrial standards or unique project specifications. This flexibility is essential for specialized industries like aerospace, military, and heavy machinery, where standard sizes may not suffice.
Conclusion
Flat washers, though often overlooked, are critical to the integrity and longevity of assembled structures and machinery. Their sizes vary widely to accommodate different bolt sizes, load requirements, and material considerations. Understanding the nuances of washer dimensions, standards, and material properties enables engineers and professionals to select the appropriate washer for any application. By ensuring the right size and type of flat washer is used, one can enhance the performance and safety of mechanical assemblies.
