1. Introduction
DIN933 full thread hex head bolts are the most widely used general fasteners for mechanical equipment, steel structures and bracket assembly. Many global buyers confuse DIN933 full-thread bolts with DIN931 half-thread studs, resulting in improper washer matching, insufficient tightening stroke, wrong application selection and order rework.
DIN933 features full continuous thread throughout the entire shank, allowing flexible position adjustment for thin plates and multi-layer assembly. This article covers standard definition, structural features, material grades, surface treatments, complete accessory matching rules and application selection tips to help buyers source qualified DIN933 bolts for different engineering projects.
2. DIN933 Standard & Structural Features

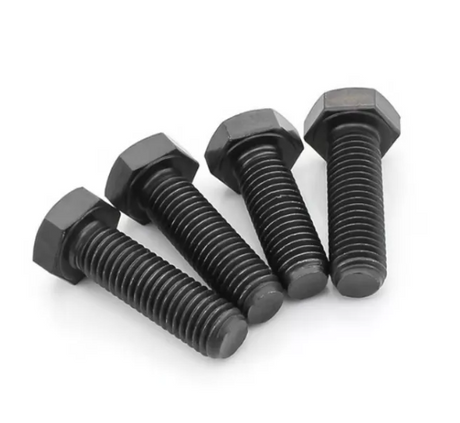

DIN933 is a standard German metric hex bolt specification for full thread fasteners.
Key characteristics:
1. Full thread shank without plain unthreaded section;
2. Standard hex head size with chamfer for universal tool fitting;
3. Chamfered thread end for easy alignment and installation;
4. Complete metric size range from M3 to M36 and above.
Core difference from DIN931: DIN931 is half-thread with middle plain shank, while DIN933 is full thread, not interchangeable in critical sealing projects.
3. DIN933 Material & Grade Selection
Carbon Steel Grades
Grade 4.8: Light indoor fixing, low-load decorative assembly;
Grade 8.8: General machinery, steel structure conventional projects;
Grade 10.9/12.9: Heavy-duty, vibration-resistant, high-load structures.
Stainless Steel Grades
A2-70 (304): General outdoor anti-corrosion applications;
A4-80 (316): Coastal, marine and chemical corrosive environments.
4. Surface Treatment Guide
Zinc plated (white/yellow/black): Dry indoor environment;
Hot-dip galvanized: Outdoor steel structure, long-term weather resistance;
Black oxide: Precision indoor machinery with cosmetic requirements;
PTFE coated: Anti-seize, high-temperature and frequent disassembly scenarios.
5. Standard DIN933 Matching Kit
Recommended full assembly set: DIN933 Bolt + DIN934 Hex Nut + DIN125 Flat Washer + DIN127 Spring Washer
Flat washers enlarge compression area and prevent plate damage;
Spring washers provide basic anti-loosening performance for light vibration;
High-strength projects require toothed lock washers or disc springs;
Nut grade must be equal or higher than bolt grade to avoid thread failure.
6. Application Scenarios
Best for DIN933 Full Thread Bolts
Thin plate & multi-layer stacking assembly, adjustable bracket and hanger fixing, light flange connection, non-standard variable thickness workpieces.
Not Recommended
High-pressure sealing flanges and heavy shear load structures, where DIN931 half-thread bolts are more reliable.
7. Common Sourcing Mistakes
Mixing DIN933 with DIN931 causing flange leakage; using ordinary washers for high-strength bolts leading to sinking and loosening; wrong surface treatment for coastal projects; unclear grade requirements leading to insufficient mechanical performance.
8. Conclusion
DIN933 full thread hex bolts are versatile and flexible for adjustable general assembly. Buyers must select correct material, coating, strength grade and matching accessories according to actual working conditions to ensure installation safety and long-term stability.
9. FAQ
Q1: What is the difference between DIN933 and DIN931? A: DIN933 is full thread for flexible adjustable assembly; DIN931 is half thread with plain shank for high-pressure flange sealing.
Q2: Do DIN933 bolts need spring washers? A: Not mandatory for static installation; recommended for vibrating and outdoor equipment.
Q3: Is full thread bolt weaker than half thread? A: No. The strength grade remains the same; only application scenarios are different.
