1. Introduction
In heavy-duty equipment, steel structure engineering, crane support and pressure pipeline fastening projects, ordinary standard nuts are often blindly used for load-bearing cost reduction. Most overseas purchasers and engineering teams believe that as long as the nut grade matches the bolt grade, the bearing effect is consistent. This wrong selection leads to frequent hidden dangers such as nut compression cracking, thread tooth shear sliding, insufficient bearing surface and structural loose displacement under long-term heavy load.
In actual engineering failure statistics, more than 80% of heavy-duty fastening collapse accidents are not caused by bolt fracture, but by insufficient thickness of ordinary nuts, too short meshing thread length and excessive local stress, resulting in nut deformation, dilation and collapse. The load-bearing gap between thickened heavy nuts and ordinary standard nuts is far greater than most people’s cognition, which directly determines the structural safety of overseas heavy-load projects.
This article deeply compares the structural differences, bearing mechanisms and failure boundaries of thickened heavy nuts and ordinary nuts, sorts out high-frequency foreign trade selection pitfalls and safety hidden dangers, and provides standardized heavy-load matching schemes.We provide grade-matched heavy thickened nuts for structural heavy-load engineering to eliminate bearing failure risks.
2. Essential Structural Differences Between Thickened Nuts and Ordinary Nuts
The core load-bearing gap between heavy thickened nuts and ordinary standard nuts does not lie in material grade, but in thickness dimension, thread meshing length and bearing contact area. Even with the same 8.8/10.9/12.9 high-strength material, the bearing limit and deformation resistance of the two are completely different under heavy load.
2.1 Ordinary Standard Nut (DIN934)
Ordinary hexagonal nuts follow conventional general-purpose standards, with thin body thickness and limited thread meshing effective length. They are designed for light and medium load, non-critical static fastening scenarios. The bearing surface is small, the stress concentration is obvious under high torque and heavy pressure, and the thread teeth are prone to shear deformation and local collapse. It is not suitable for long-term heavy load, impact load and structural safety parts.

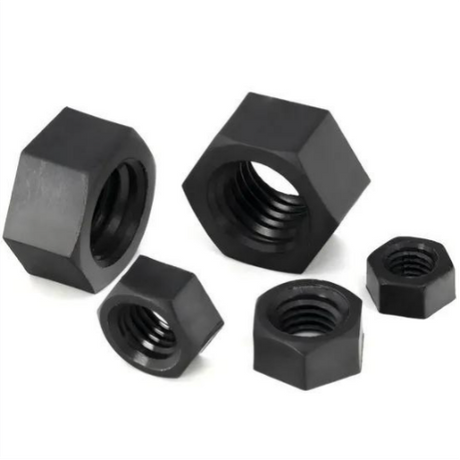

2.2 Heavy Thickened Nut (DIN6330 / Structural Heavy Hex)
Heavy thickened nuts adopt thickened body + widened flat size design, with the thickness increased by about 30%–50% compared with ordinary nuts. The effective thread meshing length is significantly extended, the bearing contact area is increased, and the stress dispersion efficiency is improved by 60%. The thickened structure effectively restrains nut dilation deformation under extreme pressure, improves proof load and fatigue resistance, and is a special fastener for heavy-load structures, pressure equipment and safety-level connections.
3. True Load-Bearing Capacity & Failure Mechanism Comparison
Comparison Dimension | Ordinary Standard Nut | Heavy Thickened Nut | Engineering Conclusion |
Nut Thickness & Meshing Length | Standard thickness, short effective thread meshing | 30%–50% thicker, longer meshing stroke | Thick nuts fully release bolt strength |
Bearing Contact Area | Small contact surface, concentrated stress | Wider bearing surface, uniform stress dispersion | Effectively avoid local pressure collapse |
Heavy Load Deformation Resistance | Easy dilation, thread tooth bending and sliding | Strong rigidity, no expansion or crack under rated load | Stable structure for long-term heavy load |
Anti-Fatigue Performance | Poor, easy loose failure under cyclic load | Excellent, resist vibration and impact load | Suitable for dynamic heavy-duty equipment |
Applicable Scenarios | Ordinary indoor equipment, medium and light load | Steel structure, crane, pressure vessel, outdoor heavy load | Strict scenario differentiation required |
3.2 Core Reason for Early Collapse of Ordinary Nuts Under Heavy Load
The thread tooth of the nut belongs to cantilever bearing structure. Under ultra-high preload and heavy pressure, the thread of ordinary nuts cannot form effective uniform force. The top thread bears most of the load alone, resulting in local stress overload, thread tooth shear, plastic deformation and gradual smoothing. In severe cases, the nut body is cracked and dilated, causing the whole connection to fail.
The thickened heavy nut extends the meshing length, disperses the load on multiple groups of thread teeth, avoids single-point stress concentration, and truly matches the full tensile strength of high-strength bolts, which is the essential reason why heavy-load structures must use thickened nuts.
4. High-Frequency Foreign Trade Selection Pitfalls & Safety Hidden Dangers
4.1 Blind Cost Reduction: Ordinary Nuts Replace Heavy Nuts for Heavy Load
Many overseas engineering projects ignore structural safety and replace thickened heavy nuts with cheaper ordinary standard nuts to control procurement costs. In the early stage of equipment operation, the fastening is normal; after several weeks to several months of heavy load operation, the nuts gradually deform, sink and crack, resulting in equipment support displacement, structural inclination, and even major safety accidents and project unqualified acceptance.
4.2 Confuse Material Grade with Structural Bearing Capacity
Most purchasers have a cognitive misunderstanding: ordinary nuts of the same grade can fully bear heavy loads. In fact, material grade determines tensile limit, while nut thickness determines structural bearing stability. Even 12.9-grade ordinary thin nuts cannot withstand the full load of high-strength bolts, and it is inevitable to collapse under extreme working conditions.
4.3 Insufficient Bearing Surface Cause Virtual Tightness & Loosening
Ordinary nuts have small bearing contact surface. When locking high-torque heavy-load bolts, the local pressure of the plate surface is too high, resulting in plate surface depression and nut settlement, forming invisible virtual tightness. The equipment is loose after operation, which is misjudged as bolt anti-loosening failure, triggering repeated rework and foreign trade dispute compensation.
4.4 Dynamic Heavy Load Vibration Accelerates Nut Failure
For vibrating heavy-duty equipment such as cranes, mechanical arms and mining equipment, ordinary nuts have poor anti-fatigue ability. Cyclic load will continuously impact the thread teeth, resulting in rapid fatigue damage and sliding teeth. Thickened heavy nuts have strong structural rigidity and can resist long-term dynamic load impact without deformation.
5. Standard Selection Rules for Heavy & Ordinary Nuts
5.1 Exclusive Scenarios for Ordinary Standard Nuts
Indoor ordinary mechanical assembly, light and medium static load equipment
Non-safety structural parts, non-pressure conventional connection points
Cost-sensitive general equipment with low load requirements
5.2 Mandatory Use Scenarios for Thickened Heavy Nuts
Steel Structure Engineering: Main body support, bracket fixing, high-load foundation connection
Pressure & Vessel Equipment: Flange connection, high-pressure sealing fastening points
Lifting & Mining Machinery: Crane arm, sling, dynamic impact load parts
Outdoor Heavy-Duty Facilities: Long-term wind load, heavy load and aging resistance structure
High-Strength Bolt Matching: 10.9/12.9 grade high-tensile bolt fixed joints
6. FAQ
Q1: Can high-grade ordinary nuts replace thickened heavy nuts? A: No. Material grade cannot make up for the defect of insufficient thickness and meshing length. Ordinary thin nuts still have the risk of compression cracking under heavy load.
Q2: What is the main failure form of ordinary nuts under heavy load? A: Thread tooth shear sliding, nut dilation and deformation, local cracking, plate surface settlement and virtual tight loosening.
Q3: Why do heavy-load structures must use thickened nuts? A: Thickened nuts extend the thread meshing length, disperse stress evenly, give full play to bolt tensile performance, and avoid structural safety accidents caused by nut priority failure.
Q4: Can you provide one-stop heavy-load fastener matching scheme? A: Yes. We support grade and structure matching for heavy-duty nut and bolt combinations to eliminate bearing failure hidden dangers.
