1. Introduction

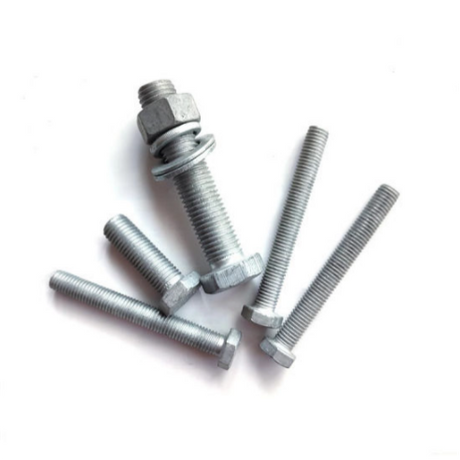

EN 14399-1 is the core European standard for high-strength preloaded structural bolt assemblies, widely adopted in European steel structure engineering, bridge construction, industrial plant frame installation, and heavy-duty mechanical connection projects. Unlike ordinary commercial bolts, EN 14399 series bolts are specially designed for friction-type pre-tightening connections, featuring strict mechanical performance, standardized matching sets, and standardized construction specifications.
In actual engineering procurement and construction, HR and HV are the two most mainstream system types of EN 14399 preload structural bolts, which are often confused by buyers and constructors. Their differences in structural design, strength matching, assembly logic and application scenarios are huge. Choosing the wrong system will lead to insufficient preload, connection loosening, and even structural safety hazards. As a professional European standard fastener manufacturer,Topbolt provides complete EN 14399 HR and HV grade structural bolt sets to meet EU engineering certification and construction standards.
2. Overview of EN 14399-1 Standard System
EN 14399-1 specifies the general requirements for preloaded high-strength structural bolting assemblies, including product classification, mechanical properties, marking rules, matching standards, and construction preload requirements. The standard divides pre-tightened structural bolts into three core systems: HR, HV, and HRC, among which HR and HV are the most widely used in conventional steel structure projects.
All EN 14399 bolt assemblies are complete matching sets (bolt + nut + washers), which are strictly matched in strength and size and cannot be mixed with ordinary standard bolts and nuts. They are mainly used for friction-type high-strength connections that require precise preload control and anti-vibration performance.
2.1 Core Classification Definition
HR System: Ductility realized by bolt elongation, with standard thread length and high nut height, suitable for most conventional steel structure preload connections
HV System: Ductility realized by thread engagement deformation, with short thread design and thin nut structure, suitable for compact installation space and high-density bolt layout scenarios
HRC System: Calibrated preload system, used for high-precision engineering scenarios with extremely strict preload tolerance requirements
3. Core Difference Between HR and HV Structural Bolt Systems
The essential difference between EN 14399 HR and HV systems lies in ductility implementation mechanism and structural size design, which directly determines their strength matching, assembly methods and applicable working conditions. The detailed parameter comparison is as follows:
Comparison Item | EN 14399 HR System | EN 14399 HV System |
Implementation Standard | EN 14399-3 | EN 14399-4 |
Ductility Mechanism | Bolt rod elongation deformation | Engaged thread deformation |
Matching Strength Grade | 8.8/8, 10.9/10 | 10.9/10 (exclusive high-strength matching) |
Nut Height Specification | ≥0.9D (standard high nut) | ≈0.8D (thin nut design, space-saving) |
Bolt Thread Length | Standard thread length per ISO 888 | Short thread design (40% shorter than HR) |
Structural Features | Stable elongation, wide tolerance range | Compact structure, high installation density |
Main Application | Conventional steel frames, bridge main connections | Compact equipment flanges, dense bolt layout structures |
3.1 HR System Detailed Features
The HR system is the most versatile preload structural bolt system in the EN 14399 standard. It relies on the elastic elongation of the bolt rod to achieve pre-tightening ductility, with sufficient deformation margin and stable mechanical performance. It supports both 8.8-grade and 10.9-grade high-strength matching, meeting the preload requirements of most European standard steel structure projects.
Equipped with standard high nuts (height ≥0.9D) and standard-length threads, the HR system has sufficient thread engagement length, uniform stress distribution, and strong resistance to alternating vibration loads. Topbolt supplies full-size EN 14399 HR bolt sets with complete factory test reports to ensure compliance with EU engineering acceptance standards.
3.2 HV System Detailed Features
The HV system is an optimized compact high-strength system, only matching 10.9-grade bolts and 10-grade nuts. It adopts a short thread design and thin nut structure, which saves nearly 10% installation space compared with the HR system. Its ductility is realized by the plastic deformation of the engaged thread part, which is more suitable for high-precision and compact installation scenarios.
It is worth noting that HV system bolts adopt forced thread rolling technology, with strict hydrogen embrittlement prevention treatment, which effectively avoids delayed fracture of high-strength bolts under long-term load. It is the preferred fastener for European high-density steel structure connection projects.
4. Matching Accessories & Surface Treatment
EN 14399 preload structural bolts have strict matching requirements for washers and surface treatments, and random matching is prohibited in engineering construction.
4.1 Washer Matching Standard
Both HR and HV systems need to be matched with EN 14399-5 or EN 14399-6 standard high-strength flat washers. The washers have strict flatness and hardness requirements, which can disperse preload pressure, prevent plate deformation, and ensure uniform stress on the connection surface.
4.2 Common Surface Treatment Options
Black Oxide: Cost-effective, suitable for indoor dry steel structure workshops, no corrosion environment
Electro-galvanized: Medium corrosion resistance, suitable for general outdoor conventional projects
Hot Dip Galvanized (HDG): Excellent salt spray resistance, suitable for outdoor bridges, coastal steel structures
Dacromet Coating: High temperature and corrosion resistance, suitable for chemical and heavy industrial environments
5. Standard Assembly & Preload Construction Rules
The pre-tightening process of EN 14399 structural bolts directly affects the structural connection safety. The construction must follow European standard specifications, and one-time full tightening is prohibited.
Pre-tightening Preparation: Check bolt set integrity, remove surface burrs and impurities, and ensure the fitting surface is flat
Initial Tightening: Complete symmetrical cross initial tightening to eliminate assembly gaps, with the torque controlled at 50% of the standard preload
Final Tightening: Complete secondary symmetrical final tightening to reach the standard preload value, ensuring uniform stress of each bolt
Inspection & Acceptance: Use torque wrench to detect residual torque, and record construction data for project filing
For vibration-intensive and high-load scenarios, double-nut locking or tension indicator matching can be used to further improve connection stability. Topbolt provides professional construction technical guidance for EN standard structural bolt projects.
6. Application Scenarios of HR & HV Bolts
6.1 HR System Main Applications
European standard factory steel frame main body connection
Steel structure bridge beam and column fixed connection
Large mechanical equipment base preload fixing
Conventional pre-tightened friction-type steel structure nodes
6.2 HV System Main Applications
Compact industrial equipment flange connection
High-density bolt layout steel structure nodes
Space-limited enclosure and support structure fastening
High-precision preload engineering transformation projects
7. Common Procurement & Construction Mistakes
Mistake 1: Mixing HR and HV system accessories Many buyers mistakenly match HR bolts with HV nuts, resulting in unqualified ductility mechanism and insufficient connection preload. Solution: Strictly purchase complete sets of HR or HV system bolts, nuts and washers.
Mistake 2: Confusing EN 14399 with ordinary 10.9 bolts Ordinary high-strength bolts do not have standardized preload design and ductility matching, which cannot meet European structural engineering standards. Solution: Special EN 14399 certified structural bolt sets must be used for EU projects.
Mistake 3: Ignoring hydrogen embrittlement prevention of HV high-strength bolts 10.9-grade HV bolts are prone to hydrogen embrittlement risks during electroplating. Solution: Choose manufacturers with professional dehydrogenation treatment processes to ensure long-term structural safety.
8. FAQ
Q1: What is the core difference between EN 14399 HR and HV bolts? A: The biggest difference lies in the ductility implementation and structural design. HR relies on bolt rod elongation with standard thread and high nut; HV relies on thread deformation with short thread and thin nut, and only supports 10.9 high-strength matching.
Q2: Can HR and HV structural bolts be used interchangeably? A: Not interchangeable. They have different preload mechanisms and structural parameters. Random replacement will cause unbalanced stress and hidden dangers to structural safety.
Q3: Are EN 14399 bolts suitable for outdoor coastal projects? A: Yes. Select hot-dip galvanized or Dacromet surface treatment EN 14399 bolt sets, which have excellent salt spray and corrosion resistance, suitable for coastal and outdoor infrastructure projects.
Q4: What is the difference between EN 14399 and domestic 10.9S structural bolts? A: EN 14399 is a complete European standard preload system with strict matching and construction specifications; domestic 10.9S bolts have different parameter standards and cannot replace EN standard products for EU export projects.
Q5: Does Topbolt support customized EN 14399 bolt specifications? A: Yes. Topbolt supports customized sizes, special surface treatments and batch engineering matching services for HR/HV system structural bolts, with complete certificates and sufficient stock.
