DIN935 Castle Nut: Cotter Pin Matching & Permanent Vibration Locking Guide

1. Introduction

DIN935 castle nuts, also known as slotted hex nuts, are specialized mechanical locking fasteners designed for permanent anti-loosening and high-vibration working conditions. Different from ordinary hex nuts and nylon lock nuts, DIN935 adopts a unique top multi-slot open structure, which cooperates with cotter pins to form mechanical hard locking, realizing zero-loosening connection for a long time.

As a classic safety-level fastener, DIN935 castle nuts are widely used in automobiles, engineering machinery, railway equipment, hydraulic systems and heavy-duty vibration equipment. Many purchasers and on-site engineers often face problems such as incorrect cotter pin matching, slot misalignment, insufficient locking effect and even safety risks due to unfamiliarity with DIN935 matching standards and installation processes. This article comprehensively explains the structural principles, size matching standards, standard installation steps, common mistakes and scenario selection guidelines of DIN935 slotted nuts.

2. What Is DIN935 Castle Nut

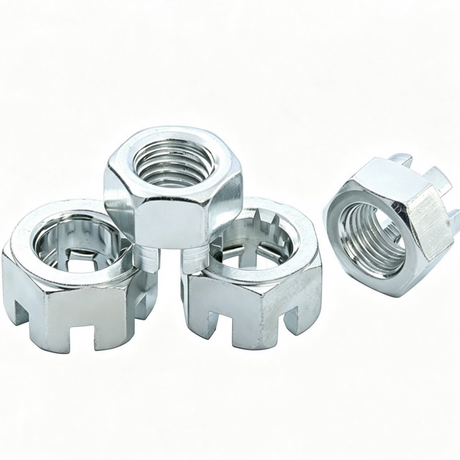

2.1 Standard Definition DIN935 is a German industrial standard for hexagon slotted castle nuts. It is improved on the basis of standard hex nuts with multiple equidistant grooves machined on the upper end face. By inserting a cotter pin through the nut slot and the bolt pin hole, it fixes the relative position of the nut and bolt to prevent rotation and loosening.

2.3 Main Application Scenarios It is mainly used for key safety connection parts that require long-term stability, zero loosening and maintenance-free locking, including automobile steering components, engineering machinery hinge points, railway vehicle parts, hydraulic equipment shafts, marine heavy-duty equipment and mechanical vibration components.

3. DIN935 Size & Cotter Pin Matching Standard

The precise matching of nut specification, bolt pin hole diameter and cotter pin size is the core of effective locking. Mismatched size will lead to pin insertion failure, loose fit or locking failure. The standard matching parameters are as follows.

4. Material Grade & Surface Treatment

4.1 Carbon Steel DIN935 Castle Nut Conventional grades are 4.8, 8.8 and 10.9 high-strength carbon steel. The surface can be electro-galvanized, hot-dip galvanized or black oxide treated. It features high hardness, strong torsion resistance and low cost, suitable for general industrial machinery and vehicle equipment.

4.2 Stainless Steel DIN935 Castle Nut Main materials include A2-70 (304 stainless steel) and A4-80 (316 stainless steel). It has excellent rust resistance, acid and alkali corrosion resistance, and is suitable for outdoor equipment, marine environments, chemical machinery and humid anti-corrosion working conditions.

5. Standard Installation Steps for Permanent Vibration Locking

Step 1: Pre-Installation Inspection Check whether the bolt pin hole is smooth and free of burrs, confirm that the DIN935 nut slot is complete, and select the matching cotter pin according to the bolt specification to ensure accurate size matching.

Step 2: Nut Tightening & Slot Alignment Tighten the DIN935 nut to the standard torque. Fine-tune the nut angle to align the nut top slot completely with the bolt pin hole. Note: Do not over-tighten or loose adjust to avoid assembly stress.

Step 3: Cotter Pin Penetration Insert the qualified cotter pin through the bolt hole and nut slot smoothly to ensure no jamming and full penetration. The pin body must fit closely without gap.

Step 4: Pin Bending & Fixed Locking Bend the two ends of the cotter pin along the nut outer circle respectively, clamp the nut edge tightly, completely limit the nut rotation angle, and realize permanent mechanical anti-loosening.

6. Common Installation Mistakes & Hidden Dangers

Mistake 1: Mismatched cotter pin and nut specification Risk: Too small pin causes loose locking and falls off under vibration; too large pin cannot be inserted, resulting in forced assembly and structural damage. Solution: Strictly follow the standard matching table for one-to-one selection.

Mistake 2: Forcing slot alignment by over-tightening Risk: Excessive torque causes bolt deformation, thread damage and reduced connection strength, bringing safety hazards. Solution: Fine-tune the nut slightly within the torque allowable range for slot alignment.

Mistake 3: Incomplete cotter pin bending Risk: Semi-bent pin cannot limit nut rotation, and will gradually loosen and fall off under long-term alternating vibration. Solution: The pin ends must be fully bent and clamped on the nut outer edge.

Mistake 4: Reusing deformed cotter pins Risk: Reused pins have metal fatigue and hidden cracks, which are easy to break and fail in vibration environment. Solution: Cotter pins are disposable locking parts and must be replaced with new ones after disassembly.

7. DIN935 vs Ordinary Lock Nuts: Advantage Comparison

Compared with nylon lock nuts and spring washer anti-loosening structures, DIN935 has irreplaceable advantages in high vibration and long-term service scenarios.

8. Conclusion

DIN935 castle nuts rely on mechanical limit locking to achieve permanent anti-loosening effect, which is far more reliable than friction and elastic anti-loosening methods. Matching with standard cotter pins is the key to stable locking. In high-vibration, heavy-load and safety-critical industrial scenarios, DIN935 is the most trustworthy locking solution. Standardized installation and correct size matching can completely avoid equipment loosening and safety accidents.

9. FAQ

Q1: Can DIN935 castle nuts be used repeatedly? A: The nut itself can be reused, but the matching cotter pin must be replaced with a new one each time. Reused pins have fatigue deformation and are prone to fracture failure.

Q2: Is DIN935 locking effect better than nylon lock nuts? A: Yes. DIN935 adopts physical mechanical limit, which is not affected by vibration, temperature and aging. It is permanently locked and more suitable for long-term vibrating equipment than nylon nuts.

Q3: What if the nut slot cannot align with the bolt hole? A: Fine-tune the nut forward or backward slightly within the standard torque range. Do not over-tighten forcibly to prevent bolt thread deformation and strength attenuation.
