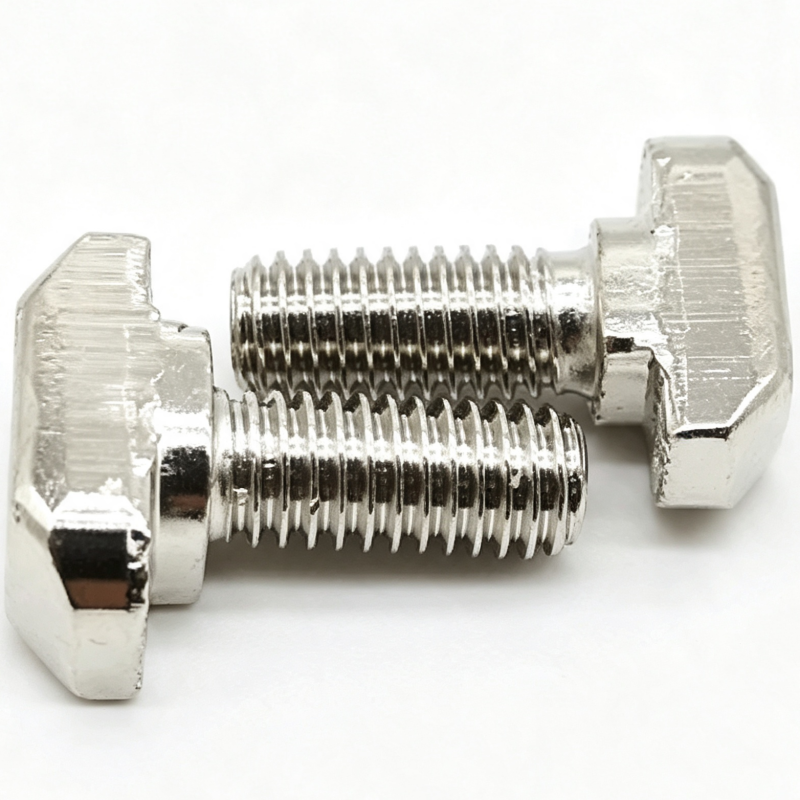

DIN186 Square Neck T-Bolt Specifications
Parameter | Details |
Product Name | DIN186 Square Neck T-Head Bolt, Heavy Duty T-Slot Bolt |
Standard | DIN186-2010 German Industrial Standard |
Structure | T-head with square neck, anti-rotation design, full coarse thread, heavy load bearing |
Grade | Carbon Steel: 4.8/8.8/10.9/12.9; Stainless Steel: A2-70/A4-80 |
Surface Finish | Black Oxide, Zinc Plated, Natural Stainless Steel Finish |
Size Range | M6-M48 Full Sizes In Stock, Custom Non-standard Length Available |
Core Function | Machine tool clamping, mold plate fixing, tooling fixture locking, foundation fastening |
Application | CNC machine tool, mold manufacturing, heavy machinery, steel structure, automation equipment |
Inspection | Dimensional Inspection, Thread Gauge Test, Hardness Test, Tensile Load Test & Full Appearance Inspection |
Package | Neutral Bag + Export Carton & Pallet, OEM Custom Packaging Available |
Lead Time | 3-7 Days for Stock Sizes, 15-20 Days for Custom & High-strength Models |
Product Core Advantages
Square Neck Anti-rotation Design
Built-in square neck structure locks tightly in T-slots, effectively preventing bolt rotation during tightening. It provides stable clamping force without slipping, greatly improving assembly accuracy and efficiency for heavy-duty repeated clamping scenarios.
Reinforced Thick T-head for Heavy Load
Widened and thickened T-head increases compression area, disperses heavy load pressure, avoids workpiece deformation and bolt fracture. Higher shear resistance and tensile strength than ordinary T-bolts, specially designed for heavy industrial working conditions.
Full Heavy-duty Size Coverage
Complete sizes from M6 to M48, sufficient stock for large heavy-duty specifications. Standard metric coarse thread ensures strong universality and interchangeability with standard T-slot workbenches and fixture accessories.
Multi-grade & Multi-finish Options
Multiple strength grades and surface treatments cover general fastening, heavy-load compression and anti-corrosion working scenarios. Suitable for indoor dry workshops, humid processing environments and outdoor heavy equipment assembly.
Grade Selection Guide
Grade 4.8 Black Oxide Bolt (Economical Type)
Cost-effective conventional grade with black anti-rust treatment, suitable for light-duty tooling, small mold plate and general equipment base fixing.
Grade 8.8 Zinc Plated Bolt (Practical Anti-rust Type)
Reinforced mechanical strength with electro-galvanized anti-corrosion finish, ideal for humid workshop tooling fixtures and medium-load mold clamping.
Grade 10.9/12.9 High-strength Bolt (Heavy-duty Type)
Quenched and tempered high-grade steel with excellent fatigue resistance and tensile strength, perfect for large stamping molds, heavy machine tools and steel structure foundation fixing.
Stainless Steel Bolt (Corrosion-resistant Type)
304/316 stainless steel material, anti-oxidation and anti-corrosion, suitable for chemical, food, humid and outdoor harsh working environments.
DIN186 vs DIN787 Difference
DIN186 Square Neck T-Bolt: Equipped with anti-rotation square neck and thick reinforced head, high strength grade, designed for heavy-load, high-precision and repeated clamping working conditions, widely used in heavy machinery and large mold industries.
DIN787 T-Slot Bolt: Lightweight structure without square neck, low load capacity, only suitable for light-duty ordinary tooling assembly, unable to bear heavy industrial compression load.
Production Process
High-quality Raw Material Selection: Adopt qualified carbon steel and stainless steel bars to ensure stable mechanical properties and load-bearing capacity.
Automatic Cold Heading Forming: Integrated forming of T-head and square neck with dense structure, no cracks or defects for stable overall performance.
Precision Thread Rolling: Standard 6G thread with full gauge inspection to ensure smooth assembly and tight meshing without slipping.
Head Finishing & Deburring: Flat and smooth compression surface ensures uniform stress and stable fitting.
Professional Anti-corrosion Treatment: Multiple surface processes to adapt to different indoor and outdoor working environments.
Strict Batch Quality Inspection: Comprehensive testing of size, thread, hardness and tensile force to guarantee consistent batch quality.
Application Industries
Machine Tool Processing: CNC machine tool workbench T-slot fixture clamping and workpiece positioning.
Mold Manufacturing: Large stamping mold and injection mold plate fastening and base positioning.
Heavy Machinery Equipment: Heavy equipment frame, base fixing and large tooling platform locking.
Steel Structure Engineering: Light steel structure base and equipment bracket compression positioning.
Automation Equipment: Automation tooling fixture and assembly board high-strength locking.
Precision Machinery: Stable compression and positioning of testing equipment and experimental platforms.
Why Choose Our DIN186 Bolts
We specialize in mass production of DIN186 square neck heavy-duty T-head bolts with complete grades and finishes. All products comply strictly with DIN186-2010 standards with accurate square neck size, standard thread and stable heavy-load performance. Sufficient stock for large-size and high-strength models, reliable batch quality and customizable non-standard lengths. We provide one-stop professional fastening solutions for global machine tool, mold and heavy industry customers.
For high strength DIN186 square neck T-head bolts, heavy duty T-slot clamping bolts and custom industrial fasteners, please feel free to contact us for professional technical support and exact quotation.
