1. Introduction
Machine tools, pump units, gearboxes, electrical cabinets and other mechanical equipment require professional lifting, transportation and on-site installation during factory delivery and commissioning. As a standard forged lifting fastener, DIN580 eye bolts are widely adopted in mechanical hoisting scenarios due to their stable load capacity, standardized thread size and convenient installation.
In actual engineering operations, many equipment manufacturers and construction teams often ignore professional specifications, including thread engagement depth, mounting flatness, sling angle and load reduction rules. Non-standard installation and lifting frequently cause eye bolt deformation, thread slipping, fatigue fracture and even major safety accidents. Compiled by the TOPBOLT professional technical team, this article systematically explains the standard application specifications, installation requirements, angle load reduction standards, inspection guidelines and common wrong operations of DIN580 eye bolts for machinery lifting, providing standardized and safe operation references for global machinery manufacturing and engineering lifting teams.

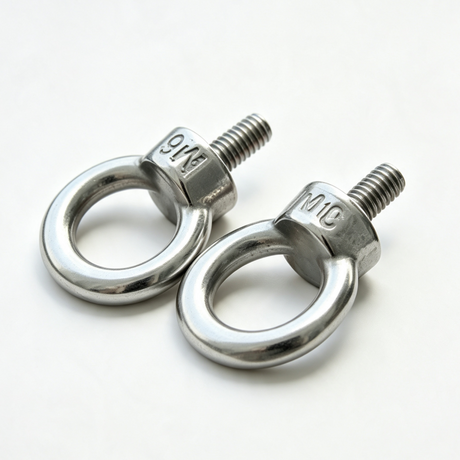

2. Core Advantages of Forged DIN580 for Mechanical Lifting
2.1 Standard Forging Process & Qualified Material Genuine DIN580 eye bolts adopt hot forging technology with standard C15/C15E carbon steel material. The integral forging structure eliminates internal pores, trachoma and hidden cracks that are common in cast eye bolts. It features uniform material density, stable mechanical performance and strong shear and tensile resistance, fully meeting the static load lifting requirements of mechanical equipment.
2.2 High Matching & Convenient Disassembly DIN580 eye bolts adopt standard full machine threads, which perfectly match the reserved threaded holes of machine tool bases, gearbox shells, motor bases and pump bodies. They are only used for temporary hoisting and transportation, and can be disassembled after equipment positioning and fixing, which will not affect the overall structure and installation accuracy of mechanical equipment.
2.3 Clear Working Condition Boundary DIN580 is specially designed for static lifting of finished mechanical equipment. It is applicable to short-distance transportation, factory outbound and on-site hoisting. It is not suitable for long-term dynamic load, frequent impact load, fatigue working conditions and personnel-related overhead lifting scenarios.
3. Standard Installation Specifications for Machinery Equipment Lifting
3.1 Complete Thread Engagement The DIN580 eye bolt must be completely screwed into the threaded hole until the shoulder is closely attached to the equipment mounting surface without gaps. Partial thread engagement will cause eccentric stress concentration, resulting in thread shear failure or eye bolt pulling out during the lifting process. If the equipment threaded hole is too shallow, hole modification or matching stud replacement is required instead of forced installation.
3.2 Flat and Vertical Mounting Surface The mounting surface must be flat and perpendicular to the eye bolt axis. Inclined or uneven surfaces will generate lateral tension, seriously reducing the rated working load of DIN580. For equipment with inclined bosses, flat washers can be used for leveling to ensure vertical installation of the eye bolt.
3.3 Reasonable Ring Plane Orientation The plane of the lifting ring must be consistent with the sling stress direction. Twisted or deflected ring bodies will produce additional bending stress, which greatly reduces the bearing capacity and easily causes ring fracture. This specification is especially critical for multi-point symmetrical lifting of large mechanical equipment.
4. Lifting Angle & Load Reduction Standard Table
The rated working load (WLL) of DIN580 eye bolts is based on vertical 0° lifting. All inclined lifting will produce lateral component force, resulting in load attenuation. Multi-point lifting of machinery must strictly calculate the actual allowable load according to the inclination angle.
Lifting Angle (Vertical Reference) | Load Reduction Factor | On-Site Operation Specification |
0° (Vertical Lifting) | 100% Rated WLL | Ideal safe state, priority arrangement for equipment hoisting |
0° ~ 45° | 70% ~ 100% Rated WLL | Permissible, strengthen sling and eye bolt inspection |
45° ~ 60° | 50% ~ 70% Rated WLL | Reduce lifting weight or upgrade larger-size DIN580 eye bolts |
Above 60° | Unavailable | Strictly prohibited for heavy machinery, adjust lifting point scheme |
5. Typical Application Scenarios of DIN580 in Mechanical Lifting
5.1 CNC Machine Tool & Gearbox Hoisting Machine tool bases, reducer shells and gearbox equipment are pre-reserved with standard threaded holes for DIN580 eye bolts. Symmetrical multi-point lifting is adopted to ensure balanced stress of the equipment, avoid single-point eccentric load, and prevent equipment tipping and eye bolt overload failure.
5.2 Pump Body & Motor Unit Transportation Integral pump sets and large motor units usually adopt 2-point or 4-point synchronous lifting. The sling inclination angle is strictly controlled within 45° to ensure stable stress of each DIN580 eye bolt and avoid sliding and shaking during lifting and transportation.
5.3 Industrial Mold Lifting Plastic molds and hardware molds are the most common application scenarios of DIN580 eye bolts. Before each mold lifting, check the threaded hole integrity and eye bolt appearance to eliminate hidden dangers such as thread wear and ring deformation caused by repeated use.
6. Common Wrong Operations & Safety Hazards
Mistake 1: Replacing Forged DIN580 with Cast Eye Bolts Risk: Cast eye bolts have internal structural defects, poor toughness and easy sudden fracture under load, which is extremely unsafe for mechanical hoisting. Solution: All machinery lifting must use genuine hot-forged DIN580 eye bolts with complete material certificates.
Mistake 2: Incomplete Thread Engagement Installation Risk: Insufficient screwing leads to unstable stress, thread shear and eye bolt pulling off during lifting. Solution: Ensure full thread fitting and shoulder tight mounting; abandon unqualified shallow threaded holes.
Mistake 3: Disordered Ring Orientation & Twisted Sling Risk: Bending stress causes local fatigue damage of the ring body and reduces overall load capacity. Solution: Adjust sling direction to keep the ring plane consistent with the pulling force direction.
Mistake 4: Ignoring Angle Load Reduction Risk: Blindly using the rated vertical load for inclined lifting causes invisible overload and fracture accidents. Solution: Recalculate the actual allowable load according to the on-site lifting angle.
7. Pre-Lifting Standard Inspection Checklist
Before all mechanical equipment lifting operations, inspect DIN580 eye bolts item by item to eliminate safety risks: 1. No cracks, deformation, dents or severe corrosion on ring body and screw rod; 2. Complete thread without burrs, slipping and wear; 3. The shoulder is closely attached to the mounting surface with no gap; 4. The sling angle is controlled within the safe range of 0°~45°; 5. The actual load after angle reduction is lower than the allowable working load.
8. Conclusion
DIN580 forged eye bolts are the most standard and reliable temporary lifting fasteners for mechanical equipment hoisting. The safety of lifting operations depends entirely on standardized installation and scientific load calculation. Equipment manufacturers and construction teams must strictly distinguish forged DIN580 from inferior cast substitutes, standardize thread installation and angle control, and implement pre-lifting inspection mechanisms. Standard DIN580 eye bolts and standardized operation are the core guarantees for eliminating mechanical lifting accidents and ensuring personnel and equipment safety.
9. FAQ
Q1: Can DIN580 eye bolts be used for long-term frequent lifting of machinery? A: No. DIN580 is designed for temporary static lifting and transportation. For long-term and frequent lifting scenarios, professional fixed lifting lugs are recommended to avoid fatigue failure of eye bolts.
Q2: Can multiple small-specification DIN580 replace one large eye bolt for lifting? A: It is not arbitrarily replaceable. Multi-point lifting requires professional force balance calculation. Uneven on-site stress will cause single-point overload and lead to fracture failure.
Q3: Can slightly deformed DIN580 eye bolts be straightened and reused? A: Prohibited. Any permanent deformation indicates internal metal fatigue and structural damage. Deformed eye bolts must be scrapped directly and replaced with new qualified forged products.
