1. Introduction
DIN186 T-head bolts with square neck are specialized industrial fasteners designed for T-slot worktables, machine tool fixtures, and modular equipment clamping systems. Different from ordinary hex bolts and carriage bolts, DIN186 features a unique square neck and thick T-shaped head, which can be directly inserted and slid into standard T-slots without extra positioning parts.
As a core standard fastener for mechanical processing and fixture assembly, DIN186 is widely used in machine tools, aluminum profile frames, hydraulic clamping equipment and automated production lines. Many overseas buyers and on-site engineers often face problems such as T-slot mismatch, bolt jamming and insufficient clamping force due to unfamiliarity with DIN186 dimension standards and installation specifications. This article provides a comprehensive guide covering DIN186 structural features, dimension parameters, T-slot matching standards, material grades and standardized installation rules.

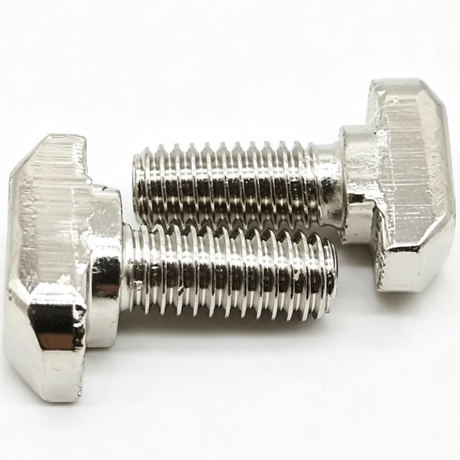

2. What Is DIN186 T-Head Square Neck Bolt
2.1 Standard Definition DIN186 is a German industrial standard for T-head bolts with square neck, available in full-thread and half-thread styles. It is specially designed for T-slot groove positioning and rapid clamping in mechanical fixture systems. The built-in square neck structure effectively prevents bolt rotation during tightening, realizing stable one-way locking and greatly improving fixture assembly efficiency and positioning accuracy.
2.2 Core Structural Advantages First, the integrated thick T-head allows free sliding inside standard T-slots, supporting flexible position adjustment for different clamping points. Second, the anti-rotation square neck eliminates bolt spinning under torque, avoiding positioning deviation during fastening. Third, integral hot-forged structure provides excellent compression resistance and shear resistance, suitable for medium and heavy clamping loads. Fourth, high compatibility with standard industrial T-slot worktables and aluminum profile frame systems.
2.3 Main Application Industries Common application scenarios include machine tool processing fixtures, industrial aluminum profile frame assembly, automated equipment clamping, mold testing frames, hydraulic tooling platforms, mechanical positioning tooling and modular industrial equipment assembly.
3. DIN186 Core Dimension & T-Slot Matching Standard
The matching between bolt specification and T-slot width is the core of accurate installation. Improper size matching will cause bolt jamming, sliding looseness, positioning offset or failed assembly. The mainstream DIN186 size and T-slot matching parameters are listed below.
DIN186 Bolt Size | Matched T-Slot Width | T-Head Width | Square Neck Height | Recommended Tightening Torque |
M6 | 8mm T-slot | 14mm | 4.5mm | 8–12 N·m |
M8 | 10mm T-slot | 18mm | 5.5mm | 15–22 N·m |
M10 | 12mm T-slot | 22mm | 6.5mm | 28–35 N·m |
M12 | 14mm T-slot | 26mm | 7.5mm | 45–55 N·m |
M16 | 18mm T-slot | 32mm | 9.0mm | 80–95 N·m |
M20 | 22mm T-slot | 38mm | 10.0mm | 120–140 N·m |
4. DIN186 Material Grade & Surface Treatment Options
4.1 Carbon Steel High-Strength DIN186 Conventional strength grades cover 8.8, 10.9 and 12.9, manufactured through integral quenching and tempering heat treatment. These carbon steel T-bolts feature high tensile strength, excellent shear resistance and stable mechanical performance. Optional surface treatments include black oxide, electro-galvanizing and hot-dip galvanizing, suitable for standard machine tool processing, indoor industrial equipment and general clamping scenarios.
4.2 Stainless Steel DIN186 Main stainless steel grades are A2-70 (304 stainless steel) and A4-80 (316 stainless steel). They deliver outstanding rust resistance, oxidation resistance and chemical corrosion resistance. Stainless steel DIN186 bolts are widely used in outdoor equipment, humid workshops, food processing machinery, chemical industry equipment and marine environment working conditions.
5. Standard Installation Steps for DIN186 T-Head Bolts
Step 1: T-slot Cleaning & Size Verification Thoroughly clean iron filings, dust and residual debris inside the T-slot to ensure smooth sliding of the bolt. Verify the actual T-slot width and match it with the corresponding DIN186 bolt specification to avoid jamming and assembly failure.
Step 2: Bolt Insertion & Position Adjustment Place the T-head horizontally into the T-slot and slide the bolt freely to the designated clamping position. Adjust the bolt extension length according to the thickness of the fixture and clamped workpiece to ensure effective clamping stroke.
Step 3: Anti-Rotation Positioning The square neck of DIN186 closely fits the T-slot gap. When bearing clamping force, the square neck forms a reliable anti-rotation structure, completely preventing bolt spinning without auxiliary positioning tools.
Step 4: Auxiliary Accessory Matching & Torque Fastening Install standard flat washers and spring washers in sequence to disperse pressure and achieve anti-loosening effect. Tighten the nut according to the standard torque value to ensure uniform clamping force and stable fixture positioning without shaking or deviation.
6. Common Installation Mistakes & Failure Risks
Mistake 1: Mismatched T-slot and bolt specification Risk: Excessive gap causes fixture shaking and positioning deviation; too small gap leads to bolt jamming and unable to slide freely. Solution: Select DIN186 bolts strictly according to the actual T-slot width of the worktable.
Mistake 2: Excessive tightening torque Risk: Over-tightening will cause T-head deformation, square neck cracking, thread damage and even extrusion damage to the T-slot worktable. Solution: Follow the standard torque range for fastening to protect both bolts and equipment.
Mistake 3: Confusing DIN186 with ordinary round-neck T-bolts Risk: Ordinary round-neck T-bolts have no anti-rotation function, resulting in bolt spinning and loose clamping during tightening. Solution: Adopt standard DIN186 square neck T-head bolts for precision T-slot fixture assembly.
Mistake 4: Skipping T-slot cleaning before installation Risk: Residual impurities cause uneven contact stress, leading to unstable clamping and reduced positioning accuracy. Solution: Clean the T-slot thoroughly before each assembly operation.
7. DIN186 vs DIN261 T-Bolt Core Differences
DIN186 and DIN261 are both standard T-slot bolts, but they differ greatly in structural design, anti-rotation performance and application accuracy.
Comparison Item | DIN186 T-Head Bolt | DIN261 T-Head Bolt |
Neck Structure | Square anti-rotation neck | Smooth round neck |
Anti-Rotation Ability | Strong, no spinning during tightening | Weak, easy to rotate under torque |
Main Application | Precision fixture, high-precision positioning | Ordinary profile frame fixing |
Positioning Accuracy | High | General |
8. Conclusion
DIN186 T-head square neck bolts are indispensable high-precision fasteners for T-slot worktables and mechanical fixture assembly. The unique square neck anti-rotation structure and standardized T-slot matching size ensure high positioning accuracy and stable clamping effect. In actual procurement and application, it is necessary to strictly match the T-slot width, select appropriate material and surface treatment according to the working environment, and avoid installation errors to ensure long-term stable operation of mechanical clamping structure.
9. FAQ
Q1: Can DIN186 replace DIN261 T-bolt? A: Yes. DIN186 has better anti-rotation performance and higher positioning accuracy, which can fully replace DIN261 for high-precision fixture assembly. But DIN261 cannot replace DIN186 for precision processing scenarios.
Q2: Does DIN186 T-bolt need washers during installation? A: Yes. Matching flat washers and spring washers can disperse pressure, prevent loosening and protect the workpiece surface, making the clamping more stable.
Q3: What grades are available for DIN186 bolts? A: Conventional grades include 8.8, 10.9, 12.9 high-strength carbon steel and A2-70/A4-80 stainless steel, covering ordinary and anti-corrosion working conditions.
