A194 2H Nut Matching Rules For A193 B7 Stud Bolts

1. Introduction

A193 Grade B7 Thread Rods are the mainstream high-strength fasteners for high-temperature, high-pressure, pipeline flange and pressure vessel equipment. Improper nut matching is the main cause of thread slipping, galling, preload loss and flange leakage in overseas projects.

As specified in ASTM international standards, ASTM A194 Grade 2H heavy hex nut is the only official matching nut for A193 B7 studs. ASTM A194 2H/2HM Carbon Steel Hex Nuts are professionally manufactured to perfectly match the mechanical properties of B7 alloy steel studs, fully meeting high-temperature and high-pressure engineering demands. This professional guide is compiled by the TOPBOLT technical team, based on rich manufacturing and overseas engineering supporting experience, covering matching principles, surface finish rules, installation standards and common failure solutions.

2. Why A194 2H Nut Is Mandatory For A193 B7 Studs

Strength Matching: A193 B7 is quenched and tempered alloy steel with high tensile strength and high-temperature resistance. A194 2H nuts feature equivalent hardness and mechanical performance to avoid nut thread failure under standard preload.

Consistent Thermal Expansion: B7 studs and 2H nuts share the same thermal expansion coefficient, preventing connection looseness and flange leakage under alternating high and low temperature working conditions.

Standard Thread Tolerance: Both follow ASME B1.1 and ASME B18.2.2 thread standards, ensuring tight meshing and preventing thread galling.

Engineering Compliance: European and American petrochemical and energy projects strictly require B7+2H full sets; mismatched accessories will lead to inspection rejection.

3. Grade Matching Chart

4. Surface Finish Matching Rules

Black Finish: Matched black B7 studs and 2H nuts for dry indoor and high-temperature flange connections, stable torque and smooth assembly.

Hot Dip Galvanized: HDG B7 studs must match over-tapped HDG 2H nuts to compensate coating thickness and avoid thread jamming.

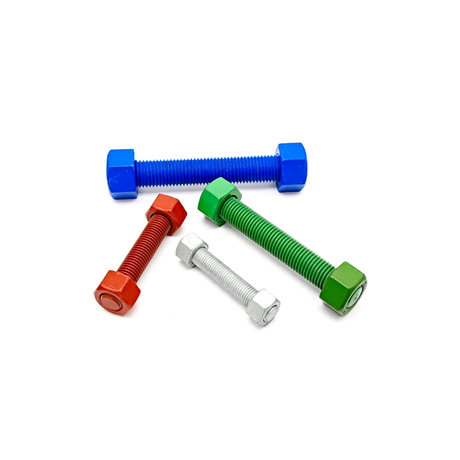

PTFE Coating: Full PTFE coated sets for anti-seize and anti-corrosion requirements in harsh chemical and high-temperature environments.

5. Standard Installation Requirements

1. Adopt official assembly: one B7 stud with two 2H heavy hex nuts for double-sided flange locking.

2. Do not mix batches or different surface finishes to avoid uneven thread tolerance and preload deviation.

3. Tighten evenly in stages under high-temperature working conditions to prevent stress concentration and bolt fracture.

4. Clean thread debris before installation to ensure complete thread engagement.

6. Common Sourcing & Installation Mistakes

1. Using ordinary high-strength nuts for B7 studs, causing thread slipping and flange micro-leakage under vibration.

2. Mismatched coating combinations leading to thread locking and disassembly failure.

3. Using standard 2H nuts for low-temperature projects, resulting in nut embrittlement and fracture risk.

7. Conclusion

ASTM A194 2H is the only compliant nut grade for A193 B7 stud bolts and threaded rods, while 2HM is specially designed for low-temperature B7M applications. Overseas buyers must select full sets with consistent material, coating and process to ensure structural stability and project compliance, avoiding rework and order rejection caused by mismatched accessories.

8. FAQ

Q1: Can I use Grade 10 ordinary nuts for A193 B7 studs? A: No. Ordinary Grade 10 nuts cannot match B7’s heat resistance, hardness and thermal expansion, which will cause thread failure and leakage under high pressure and high temperature.

Q2: What is the difference between 2H and 2HM nuts? A: A194 2H is for standard high-temperature conditions, while 2HM is low-temperature impact-resistant grade for cold environment equipment.

Q3: Do HDG B7 studs need special nuts? A: Yes. Over-tapped hot-dip galvanized A194 2H nuts are required to fit the coating thickness and prevent thread jamming.
