DIN557 Square Nut: Feature And Matching Fastener Solutions

1. Introduction

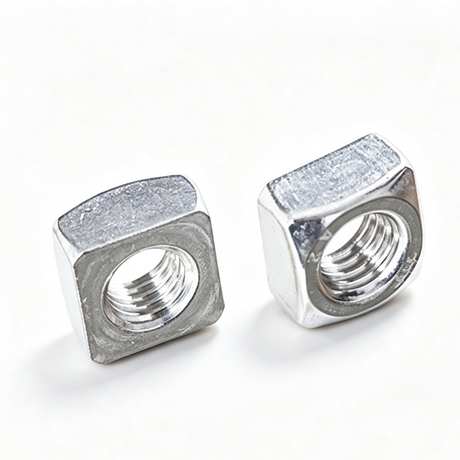

DIN557 square nut is a standard metric four-sided fastener widely adopted in European industrial and construction fields. Different from conventional hexagonal nuts, its unique square structural design delivers outstanding anti-rotation performance, larger contact bearing area and excellent embedding stability. It is specially designed for T-slot tracks, groove limiting structures, wooden and thin sheet metal connection scenarios where anti-loosening and anti-slip positioning are required.

Many global purchasers confuse square nuts with ordinary hex nuts and misapply them in slot assembly scenarios, resulting in slipping, rotation and unstable fastening. As a professional standard fastener supplier,we provide full-size DIN557 square nuts with complete specifications, stable dimensional tolerance and diverse surface treatments to meet industrial matching and engineering supporting needs.

2. DIN557 Square Nut Standard & Basic Specifications

DIN557 is the core German standard for metric chamfered square nuts, covering complete thread specifications from M1.6 to M36. The standard strictly defines the flat width, nut height, chamfer angle and thread tolerance of square nuts, ensuring full interchangeability and assembly consistency in global industrial supporting projects.

Conventional mainstream specifications include M4, M5, M6, M8, M10, M12, covering machinery equipment, building templates, solar supports, groove tooling and other mainstream application sizes. Common materials include carbon steel and stainless steel (A2/A4), with surface treatments such as zinc plating, hot-dip galvanizing and black oxide to adapt to different environmental working conditions.

3. Core Structural Features of DIN557 Square Nut

3.1 Excellent Anti-Rotation Positioning Ability

The four-sided symmetrical structure of DIN557 square nut can be perfectly clamped with T-slots and strip limiting grooves. During bolt tightening, the square body is limited by the groove wall, which completely avoids the self-rotation problem of hexagonal nuts in groove assembly. It requires no auxiliary tool fixing during construction, greatly improving assembly efficiency, and maintains stable anti-loosening performance in long-term vibration working environments.

3.2 Larger Bearing Contact Area

Compared with hexagonal nuts of the same specification, DIN557 square nuts have a larger effective bearing contact area. The four-corner stress structure disperses fastening pressure more evenly, effectively preventing nut sinking and pressure penetration defects on soft materials such as wood, plastic and thin steel plates. It is the preferred fastener for lightweight and soft substrate connection scenarios.

3.3 High Structural Stability & Convenient Maintenance

The square chamfered design optimizes the stress concentration problem of right-angle structures, improving the overall structural toughness and compression resistance. Meanwhile, the four-sided flat structure is compatible with conventional flat tools, no special hexagonal torque tools are needed for disassembly and maintenance, which significantly reduces later maintenance costs for mechanical equipment and engineering facilities.

4. DIN557 Square Nut VS Ordinary Hexagonal Nut

There are essential differences in structural advantages and applicable scenarios between DIN557 square nuts and conventional hex nuts. The detailed comparison is as follows:

5. Main Application Scenarios of DIN557 Square Nut

5.1 Mechanical T-Slot Tooling & Fixture Assembly

DIN557 square nuts are widely used in machine tool T-slot worktables, adjustable fixtures and mechanical positioning structures. The square limit structure realizes rapid positioning and sliding adjustment, which is convenient for flexible switching of processing positions and meets the flexible assembly needs of automated mechanical equipment.

5.2 Wooden Structure & Building Template Connection

In timber frame construction and building template fastening, the large contact area of square nuts effectively avoids pressure damage to wood grain and thin templates. Hot-dip galvanized DIN557 square nuts are often used for outdoor wooden structure penetration bolt connection, with stable fastening and strong weather resistance.

5.3 Solar Bracket & Steel Structure Support

Photovoltaic brackets and light steel supports have a large number of slotted track adjustment structures. DIN557 square fastening nuts can realize free sliding positioning and fixed locking of brackets, adapting to the angle adjustment and installation requirements of outdoor solar equipment, with outstanding vibration resistance and anti-loosening effect.

5.4 Light Industrial Equipment & Furniture Hardware

For light industrial machinery, equipment shells and metal furniture frames made of thin plates and profiles, DIN557 square nuts avoid substrate depression and structural deformation caused by fastening pressure, ensuring the flatness and structural stability of equipment appearance.

6. Professional Matching Fastener Solutions

To give full play to the performance advantages of DIN557 square nuts, scientific matching of bolts and washers is required for different working conditions:

• Conventional Indoor Assembly: Match DIN933 hex bolts and ordinary flat washers, suitable for machinery tooling and indoor steel structure connection

• Outdoor Anti-Corrosion Project: Match galvanized full-thread bolts and thickened flat washers, cooperate with galvanized DIN557 square nuts to form a complete anti-corrosion fastening set

• Vibration Working Condition: Add spring lock washers or tooth lock washers to enhance anti-loosening performance and avoid fastening failure caused by long-term vibration

• Soft Substrate Connection: Equip with large outer diameter flat washers to further disperse pressure and protect wood and plastic substrates

7. Common Procurement & Application Mistakes

Mistake 1: Replace square nuts with hexagonal nuts for slot assembly Ordinary hexagonal nuts cannot be limited by the groove wall, which is easy to rotate during tightening, resulting in inaccurate positioning and loose fastening. Solution: Strictly select DIN557 square nuts for all slotted track assembly scenarios.

Mistake 2: Ignore surface treatment matching for outdoor use Carbon steel plain square nuts are easy to rust outdoors, affecting fastening stability. Solution: Prefer galvanized or hot-dip galvanized DIN557 square nuts for outdoor and humid environments.

Mistake 3: Blindly match high-torque tightening Although square nuts have large bearing area, excessive torque will still cause substrate deformation. Solution: Control tightening torque according to substrate material and bolt specification.

8. FAQ

Q1: What is the biggest advantage of DIN557 square nuts compared with hex nuts? A: The core advantage is anti-rotation positioning. The square structure can be limited in T-slots and grooves without rotating during tightening, with larger bearing area and better anti-sinking effect on soft materials.

Q2: What specifications do DIN557 square nuts cover? A: It covers metric specifications from M1.6 to M36, with common mainstream sizes M4-M12, supporting mechanical, construction and photovoltaic engineering matching.

Q3: Are DIN557 square nuts suitable for vibrating equipment? A: Yes. With groove limit anti-rotation performance, it has better anti-loosening stability than ordinary hex nuts in vibration environments, and can be used with lock washers for stronger anti-loosening effect.

Q4: What material options are available for DIN557 square nuts? A: Conventional carbon steel and A2/A4 stainless steel are available, with surface treatments such as zinc plating, hot-dip galvanizing and black oxide, adapting to indoor, outdoor and corrosive environments.

Q5: Can you provide customized DIN557 square nut solutions? A: Yes. We support customized size, special surface treatment and batch matching services for DIN557 square nuts, providing one-stop fastener supporting solutions for global engineering projects.
