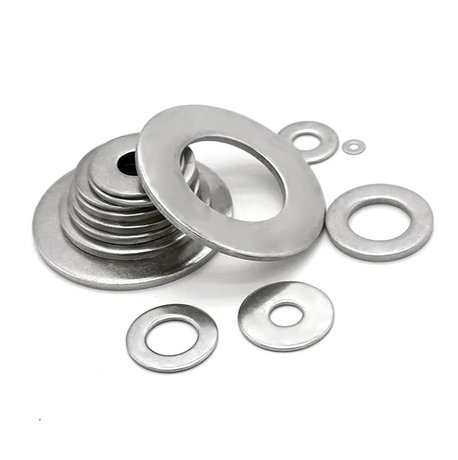

Two washers can fit the same bolt but perform very differently. Their outside diameters may change how the joint handles load. A flat washer spreads clamp force between the fastener and joint surface. Its outside diameter controls how much material supports that force. More bearing area can reduce surface pressure, indentation, and pull-through risk. However, a larger washer is not always the better choice. Thickness, hardness, joint material, available space, and fastening standards also matter. In this article, you will learn how washer OD affects load distribution, what happens when it is too small or too large, and how to choose a suitable size.
How Outside Diameter Changes the Load Under a Flat Washer
The main purpose of a flat washer is load distribution. A bolt or nut applies clamp force over a limited contact area. The washer increases this contact area before the force reaches the joint surface. Outside diameter plays a major role in determining this area. A wider washer places more material between the fastener and the joint.
A Larger OD Creates More Bearing Area
Imagine two washers installed under identical bolts. They have similar inside diameters but different outside diameters. The wider washer covers more surface around the bolt hole.
This extra coverage creates a larger bearing area. The same clamping force can then act across a broader surface. Local pressure under the washer can therefore decrease.
This matters because joint materials have limited bearing strength. Concentrated pressure can permanently deform a softer surface. A wider contact area can reduce this risk.
However, pressure is not perfectly uniform beneath every washer. Washer stiffness and joint stiffness both affect load transfer. Bolt-head geometry also changes the pressure pattern. A washer must remain sufficiently rigid during tightening. Otherwise, its outer edge may provide less useful support than expected.
Lower Surface Pressure Protects the Material Around the Hole
High local pressure often causes damage near the bolt hole first. This area carries much of the fastening load. It may also have less material because of drilling or punching. A suitable washer OD helps protect this area. It can reduce local indentation and surface crushing. It also limits direct contact between the fastener and finished surfaces.
The effect becomes more important on softer materials. Aluminum, thin sheet metal, plastics, and wood-based materials need careful support. Painted or coated surfaces may also benefit from broader load distribution. The washer does not make weak material stronger. Instead, it helps use more available material to support the load.
What Happens When the Flat Washer Outside Diameter Is Too Small?
A washer can fit over a bolt and still be unsuitable. Hole fit confirms only one part of the selection. It does not prove the washer provides enough bearing support. An undersized OD concentrates force near the fastener. The problem becomes more serious as preload increases.
The Washer Can Indent or Damage the Joint Surface
When bearing area becomes too small, pressure rises under the washer. The joint surface may begin to compress or indent. Soft materials usually show damage first. The washer may gradually sink into the surface. Painted finishes can crack around its edge. Thin metal can also form a visible depression.
This damage affects more than appearance. Embedment can change the clamping condition after assembly. The joint may no longer retain the expected preload.
Increasing tightening torque does not always solve the problem. It may create even greater surface pressure. In some cases, more tightening simply increases permanent deformation.
It is also important to identify where deformation occurs. A washer may remain flat while the material beneath it fails. The problem is then insufficient support, not washer strength alone.
Small OD Increases Pull-Through and Hole Deformation Risk
Outside diameter becomes especially important around large holes. The washer needs enough overlap beyond the hole edge. Without it, too little joint material supports the fastener.
This issue appears often around oversized holes and slots. They leave less continuous material beneath the washer. A small washer may cover the bolt but leave part of the opening exposed.
Thin sheets create another risk. Material near the hole can dish upward or downward. Severe loading may enlarge the hole or pull the fastener through it.
A wider washer can provide more support in these situations. However, it cannot repair a damaged structural joint. Cracked, torn, or severely enlarged holes need proper engineering evaluation.
Common warning signs include:
The washer sinks into the joint surface after tightening.
Material around the bolt hole becomes visibly dished.
Part of an oversized hole remains exposed.
A slot extends close to the washer edge.
Coating damage follows the washer perimeter.
The surface deforms again after repeated tightening.
Why the Largest Possible Washer Is Not Always the Best Choice
It is easy to assume that more surface area always improves performance. That conclusion misses several important factors. Outside diameter cannot be considered alone. A washer must remain stiff enough to transfer load effectively. It also needs enough installation space around the joint.
Increasing OD Without Enough Thickness Can Make the Washer Flex
A wider washer extends farther beyond the bolt head or nut. Its outer section receives less direct support from the fastener. Thickness therefore becomes increasingly important.
A very thin, wide washer may bend during tightening. Its shape can become slightly dished under high clamp force. In this condition, the theoretical contact area becomes misleading.
The washer may look large from above. However, its full surface may not carry load effectively. Much of the pressure can remain concentrated closer to the fastener.
Material hardness also matters. High-strength bolted joints can generate substantial clamp force. A soft washer may deform even when its diameter looks suitable. This is why outside diameter, thickness, and hardness should be evaluated together. Changing only one dimension can produce an unbalanced design.
Excessive OD Can Create Fit and Assembly Problems
Large washers also require more physical space. This can become a problem in compact mechanical assemblies. Nearby features may prevent full seating. A washer may contact a weld bead or flange. It may interfere with another fastener or surrounding housing. Ribs and corners can create similar problems.
Edge conditions deserve special attention. A washer should sit on a stable supporting surface. Part of it should not hang beyond an unsupported edge. Bolt spacing can also limit OD. Two wide washers installed close together may overlap. This creates assembly problems and may prevent proper seating. The correct size therefore balances two needs. It should provide enough bearing area without creating interference.
Joint Material and Hole Geometry Determine How Much Washer OD You Need
There is no universal outside diameter for every joint. The material below the washer changes the amount of support required. Hole geometry changes it again. A washer suitable for thick steel may not suit thin aluminum sheet. Both joints may use the same bolt diameter.
Softer and Thinner Materials Usually Need More Bearing Support
Hard, thick steel can resist high local bearing pressure. Thin or softer materials usually cannot. They may need a wider area to carry the same clamp force. Material thickness is equally important. A thin sheet has less material around the hole. It can bend or dish before a thick plate shows visible damage.
Surface condition can also affect the decision. Coatings may compress during tightening. Soft finishes can become marked under concentrated pressure. A larger OD can help distribute force across a broader area. It can also reduce the chance of the washer cutting into the surface. However, wider does not remove other design limits. The washer still needs adequate stiffness and proper support underneath.
Oversized and Slotted Holes Change the OD Requirement
Nominal bolt diameter tells only part of the story. Actual hole dimensions may be more important when selecting OD. A standard round hole usually provides continuous support around the bolt. An oversized hole removes more supporting material. A slotted hole removes even more along one direction.
The washer should provide sufficient overlap around these openings. It should not sit close to the hole edge without enough supporting material. Slots require particular attention. Their length may extend beyond a normal washer. This can leave part of the washer poorly supported.
Project drawings should therefore identify actual hole geometry. Buyers should not assume every hole matches the nominal bolt size. Structural connections may also require specific washer dimensions and properties. These requirements should take priority over informal sizing rules.
Joint Condition
Why Outside Diameter Matters
Practical Direction
Thick, hard surface
Material resists local pressure better
Standard OD may be adequate
Thin sheet
Local bending is more likely
Consider greater bearing area
Soft material
Surface indentation can occur earlier
Wider OD may improve support
Oversized hole
Less material supports the fastener
Verify sufficient overlap
Slotted hole
Support changes around the slot
Check full seating and coverage
Tight assembly space
Large washers may interfere
Balance coverage against clearance
How to Choose the Right Flat Washer Outside Diameter
Good washer selection starts with the actual joint, not the catalog name. Bolt diameter gives you a starting point. It should not make the final decision. A reliable selection process checks the hole, material, load, and available space together.
Start With the Bolt, Hole, and Available Seating Area
Begin by confirming the bolt or stud diameter. Next, verify the real hole dimensions. Do not rely only on the nominal drawing callout. Then identify the material beneath the washer. Consider its thickness and resistance to local compression. A soft plate may need more bearing support than a hardened steel surface.
The expected clamp load also matters. Higher preload creates higher pressure beneath a similar contact area. Wider support may become useful as load increases. Next, inspect the available seating area. Check nearby edges, welds, ribs, fasteners, and recesses. The washer should sit flat without interference.
A practical selection sequence is:
1. Confirm the bolt or stud diameter.
2. Check the actual hole or slot dimensions.
3. Identify the joint material and thickness.
4. Review the expected fastening load.
5. Measure the available seating space.
6. Select enough OD for proper surface support.
7. Verify washer thickness and hardness requirements.
8. Check the applicable project or fastening standard.
This process helps avoid a common purchasing error. Two washers listed for the same bolt can have different outside diameters.
Use Washer Standards as Starting Points, Not Interchangeable Labels
Different standards define different dimensional relationships. This is why washer names should not be treated as interchangeable descriptions. For example, a DIN 9021 washer uses a larger outer diameter than a conventional DIN 125 configuration. Wider coverage can be useful where greater surface protection is required. Topbolt's product range includes both DIN 125A and DIN 9021 flat washer options.

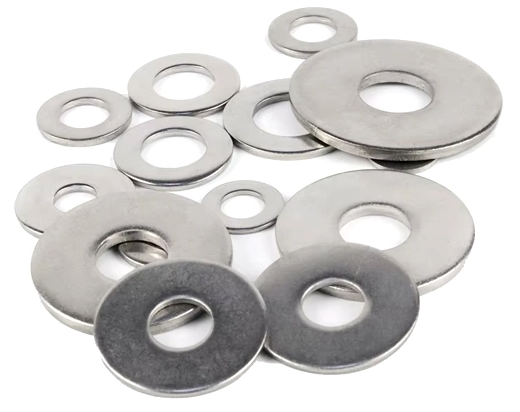

The same principle appears in American washer families. SAE and USS dimensions are not identical. Published size charts show USS washers generally use a wider outside diameter for comparable nominal sizes. This difference can affect machinery and building assemblies. A SAE USS flat washer should therefore be selected from its actual dimensions. The family name alone does not confirm joint suitability.
Structural work introduces another requirement. An ASTM F436/F436M flat washer belongs to a hardened structural washer specification. It should not be replaced simply because another washer has a similar outside diameter.
At Topbolt Metalworks, we offer SAE/USS, DIN125A/DIN9021, and ASTM F436/F436M washer options for different fastening requirements. Our listed range also includes different materials, finishes, hardness levels, and dimensions. When standard dimensions do not suit an assembly, we can also provide customized washer sizes, materials, and finishes for project-specific requirements. The final size should still follow the joint design and applicable specification.
Conclusion
Flat washer outside diameter directly affects how clamping force spreads across the joint surface. A washer that is too small can increase indentation, crushing, deformation, and pull-through risks. A larger OD can improve support on thin materials, soft surfaces, oversized holes, and slotted holes. However, diameter should always be checked together with thickness, hardness, seating space, and joint geometry. The best choice provides enough coverage without creating fit or stiffness problems. Ningbo Topbolt Metalworks Co., Ltd. supplies flat washers in multiple standards, materials, and dimensions. Our washer solutions help buyers match joint requirements while supporting reliable fastening performance.
FAQ
Q: Why does flat washer outside diameter matter?
A: A flat washer with a larger outside diameter spreads clamp force across more surface area. This can reduce local pressure, indentation, and pull-through risk around the bolt hole.
Q: When should I use a larger outside diameter flat washer?
A: Use a larger flat washer when fastening thin, soft, slotted, or oversized-hole materials. Extra bearing area can provide better support and reduce local deformation.
Q: Can a flat washer outside diameter be too large?
A: Yes. An oversized flat washer may interfere with nearby parts or extend beyond the supported surface. Thickness and stiffness must also suit the required clamp load.
Q: How do I choose between an SAE USS flat washer size?
A: Check actual outside diameter, hole size, seating space, and joint material. An SAE USS flat washer should be selected by dimensions rather than bolt size alone.
A: No. An ASTM F436/F436M flat washer must also meet the required thickness, hardness, material, and structural specification. Outside diameter is only one selection factor.
