In fastening applications, not every nut is designed for the same job. A standard hex nut may work perfectly well in general hardware, light machinery, or low-stress assemblies. But when the joint must handle higher preload, heavier clamping force, larger bolt diameters, or more demanding structural conditions, engineers and buyers often move to a different option: the heavy hex nut. It may look similar at first glance, but in real-world performance, the difference is meaningful.
At Ningbo Topbolt Metalworks Co., Ltd., we often see customers ask a simple question: When should I use a heavy hex nut instead of a standard hex nut? The short answer is that a heavy hex nut is typically used when the application requires a larger, thicker nut pattern with greater bearing area and stronger compatibility with high-strength bolting systems. Industry references consistently describe heavy hex nuts as being larger and thicker than standard (finished) hex nuts, and commonly used for large-diameter and high-strength bolts, especially in structural and demanding bolted assemblies.
What is a heavy hex nut?

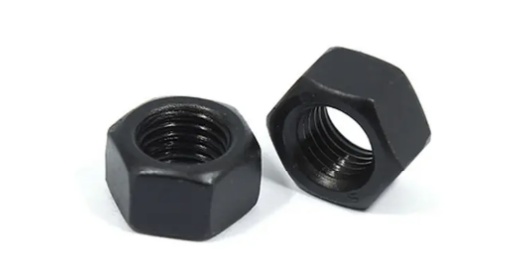

A heavy hex nut is a hexagonal internally threaded fastener with a larger width across flats and greater thickness than a standard hex nut of the same nominal diameter. This larger pattern is defined in dimensional standards such as ASME B18.2.2.
In practical terms, this means a heavy hex nut provides:
a larger bearing surface against the connected material
greater thread engagement due to increased thickness
better suitability for higher clamp loads and stronger bolt assemblies
Some industry references also note that heavy hex nuts are commonly called structural nuts in many applications because they are frequently paired with structural bolting systems.
How is a heavy hex nut different from a standard hex nut?
The most important difference is not just appearance—it is geometry and load-handling intent.
A heavy hex nut is:
That larger geometry helps in two ways:
1 Larger bearing area
A wider nut spreads load over a larger contact area. In demanding joints, this can help reduce localized bearing stress on the connected surface.
2 More thread engagement
Because the nut is thicker, more threads are engaged with the bolt. In high-strength assemblies, this supports stronger and more stable load transfer.
Quick comparison table
Feature | Standard Hex Nut | Heavy Hex Nut |
Width across flats | Smaller | Larger |
Thickness | Thinner | Thicker |
Bearing surface | Smaller | Larger |
Typical use | General fastening | High-strength / structural / large-diameter bolting |
Common governing dimensions | ASME B18.2.2 family | ASME B18.2.2 heavy hex pattern |
Industry sources consistently state that heavy hex nuts are larger and thicker than standard hex nuts and are commonly selected when the heavy hex pattern is required by the joint design or specification.
When should you use a heavy hex nut?
A heavy hex nut is generally the right choice when the joint needs higher strength, greater preload reliability, or compliance with structural / engineering specifications rather than general-purpose fastening.
1 Use a heavy hex nut with high-strength bolts
Heavy hex nuts are commonly used with high-strength bolts and large-diameter fasteners. Multiple industry references describe the heavy hex pattern as typically used for large diameter and high strength bolts.
If your bolt assembly is designed for high preload or significant clamping force, a heavy hex nut is often the correct match.
2 Use it when structural specifications require it
In structural steel work, heavy hex nuts are commonly paired with structural bolt systems. References specifically note use with structural bolts governed by ASTM F3125 (including familiar structural bolt grades) in structural applications.
Typical examples include:
In these cases, the use of a heavy hex nut is often not a preference—it is part of the required fastener system.
3 Use it in high-pressure or high-temperature bolted joints when specified
Industry references also describe heavy hex nuts as common in high-pressure piping and similar demanding bolted assemblies when the governing standard calls for the heavy hex geometry.
This can include:
flange joints
pressure-retaining systems
industrial piping connections
other assemblies where stronger thread engagement and larger bearing surfaces are beneficial
The key point is that in these applications, selection is often driven by engineering specification and mating fastener requirements—not by appearance.
4 Use it when greater bearing surface is beneficial
A heavy hex nut’s larger outside dimensions create more bearing surface against the connected part or washer. This can be useful when:
higher clamp loads are required
surface stress must be distributed more effectively
the joint is subjected to repeated loading or demanding service
Some suppliers explicitly note that heavy hex nuts provide increased bearing surface area over finished hex nuts.
5 Use it when greater thread engagement is needed
In applications where thread strength and stability matter, the additional thickness of a heavy hex nut provides more engaged threads. This is one reason they are preferred in many heavy-duty assemblies. Industry references describe this extra bulk as providing greater thread engagement for high-tension applications.
When should you not use a heavy hex nut?
A heavy hex nut is not automatically “better” for every project. In some cases, it adds cost, requires a larger wrench or socket, and may take up more space than necessary.
It may not be the best choice when:
the application is light-duty and does not need high-strength fastening
clearance around the nut is limited
the design specifically calls for a standard finished hex nut
tool access is tightly constrained
the fastener system is standardized around non-heavy hex dimensions
For example, some sources note that heavy hex nuts require a larger wrench or socket than standard hex nuts of the same nominal size because of their increased width across flats.
So while heavy hex nuts improve strength-related performance in many cases, they should still be selected based on the actual joint design.
Common applications for heavy hex nuts
Based on common industry usage, heavy hex nuts are frequently used in:
structural steel construction
bridges
industrial machinery
high-rise building connections
heavy equipment
pressure piping and flange bolting
large-diameter, high-strength bolt assemblies
These are the kinds of applications where bolt preload, dimensional compatibility, and mechanical reliability matter more than minimizing hardware size.
How to choose the right heavy hex nut
Selecting the right heavy hex nut is not only about nominal thread size. We recommend checking the following:
1 Confirm the governing standard
Heavy hex nuts are commonly dimensioned under ASME B18.2.2.
This matters because “looks similar” is not enough—dimensional compliance affects fit, tool size, and joint behavior.
2 Match the nut grade to the bolt grade
Heavy hex nuts are available in different material and strength grades, and the nut should be compatible with the bolt system. Industry references note that selection is often driven by the applicable standards and required compatibility with the bolt grade.
3 Check finish and environment
Depending on the service environment, finish matters:
plain finish
galvanized
plated or coated options
Corrosion protection requirements should match the project’s operating conditions.
4 Verify wrench clearance
Because heavy hex nuts are larger, always confirm:
5 Confirm whether the specification explicitly requires heavy hex
In many structural and engineered assemblies, the drawing or standard already determines the nut type. In that case, substitution with a standard hex nut may not be acceptable.
Conclusion
So, when should you use a heavy hex nut? You should use one when the application calls for a larger, thicker nut pattern that provides more bearing surface and greater thread engagement—especially in high-strength, structural, large-diameter, and specification-driven bolted assemblies. Industry references consistently describe heavy hex nuts as larger and thicker than standard hex nuts, and commonly used with high-strength bolts in structural and demanding applications.
The most important takeaway is simple: a heavy hex nut is not a universal upgrade for every project. It is the correct solution when the joint design, bolt grade, and service requirements justify it.
To learn more about heavy hex nut options, specifications, and production support, you are welcome to contact Ningbo Topbolt Metalworks Co., Ltd. for more information.
FAQ
1) What is the main difference between a heavy hex nut and a standard hex nut?
A heavy hex nut is wider and thicker than a standard hex nut of the same nominal size, giving it more bearing area and greater thread engagement.
2) Are heavy hex nuts only used in structural steel?
No, but structural steel is one of their most common uses. They are also used in other high-strength and demanding bolted assemblies where the heavy hex pattern is specified.
3) Do heavy hex nuts require a different wrench size?
Yes. Because they are larger across the flats than standard hex nuts, they usually require a larger wrench or socket.
4) Can I replace a standard hex nut with a heavy hex nut anytime?
Not always. You must confirm clearance, tool access, and whether the fastener system or specification requires a particular nut pattern. In engineered joints, substitutions should not be assumed interchangeable.
