Washers are fundamental components in mechanical assemblies, serving critical functions that ensure the integrity and longevity of bolted connections. They are often overlooked, yet their role in distributing loads, preventing loosening, and protecting surfaces is indispensable. Recognizing the different types of washers and their specific applications is essential for engineers, mechanics, and professionals in the manufacturing industry. Among the various types, Flat Washers are the most commonly used and serve as the foundation for understanding washer functionality.
The Three Primary Types of Washers
Washers can be categorized into three primary types based on their design and function: flat washers, spring washers, and lock washers. Each type is engineered to fulfill specific requirements in an assembly, and choosing the correct washer is vital for optimal performance. The selection depends on factors such as load distribution, vibration resistance, and environmental conditions.
Flat Washers

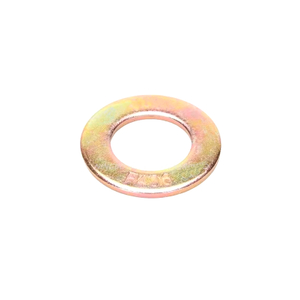

Flat washers are thin, disk-shaped plates with a central hole, designed to distribute the load of a threaded fastener like a bolt or screw. They prevent damage to the mating surfaces by spreading the force over a larger area. This is particularly important when working with softer materials or when the surface finish must be preserved. The simplicity of flat washers belies their importance in ensuring secure and long-lasting connections.
Manufactured in various materials such as carbon steel, stainless steel, and brass, flat washers can be tailored to suit different environmental conditions. For instance, stainless steel flat washers are ideal for corrosive environments due to their resistance to rust, while carbon steel washers, like those produced by Ningbo Topbolt Metalworks Co., Ltd., offer excellent strength for heavy-duty applications.
The dimensions and standards of flat washers vary globally. Standards like DIN125A, DIN9021, and SAE/USS specify the dimensions and tolerances to ensure compatibility and reliability in international projects. Utilizing standardized Flat Washers ensures consistency and quality across different assemblies.
Spring Washers
Spring washers, also known as disc springs or Belleville washers, are conically shaped to provide axial flexibility. They exert a continuous, adjustable force when compressed, which is crucial for maintaining tension in bolted assemblies that are subject to thermal expansion, contraction, or vibration. The ability of spring washers to absorb dynamic loads makes them invaluable in applications like automotive suspensions, aerospace components, and industrial machinery.
The material selection for spring washers often includes high-carbon steel and alloy steels, which provide the necessary elasticity and fatigue strength. Surface treatments such as phosphating or galvanizing enhance corrosion resistance and prolong service life. Engineers must consider factors like load-deflection characteristics and relaxation behavior when designing assemblies with spring washers.
Lock Washers

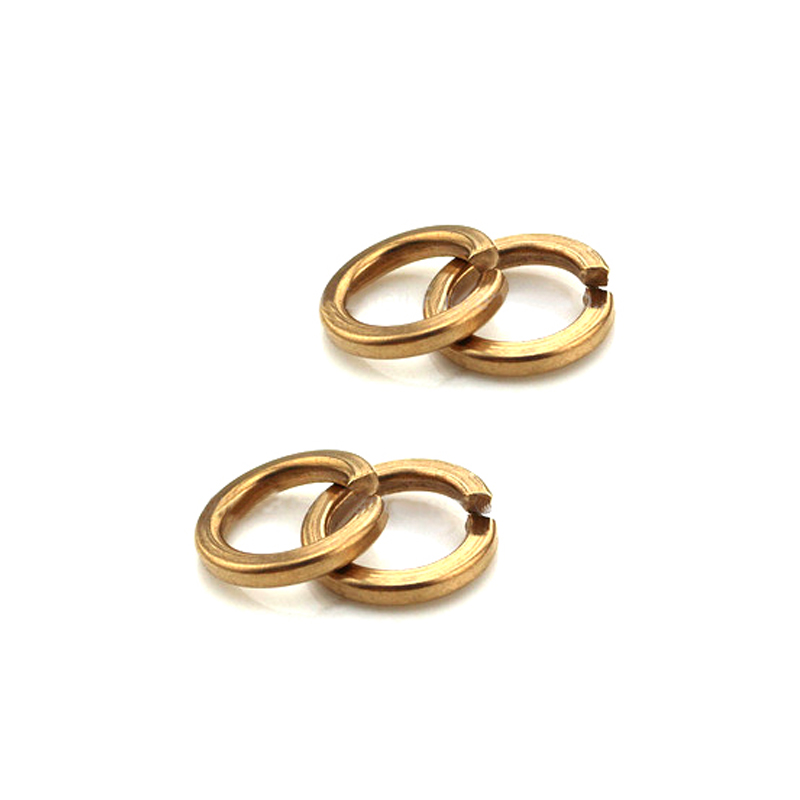

Lock washers are designed to prevent fastening or loosening due to vibrations and torque. They come in various designs, including split lock washers, tooth lock washers (internal and external), and wedge lock washers. The split lock washer, for example, features a helical shape that compresses during tightening, biting into the mating surfaces to resist rotation.
Tooth lock washers have serrations that grip the bolt head or nut and the mating surface. They are particularly effective in applications where the loosening torque is a concern. Wedge lock washers utilize a pair of washers with cams on one side and radial teeth on the opposite side. When the bolt tries to loosen, the cam action increases the clamping force, thus preventing rotation.
Selecting the appropriate lock washer requires an understanding of the operational environment, including the types of vibrations and thermal variations the assembly will encounter. Material considerations are also important, as the washer must be compatible with the bolt and the surfaces it contacts to prevent galvanic corrosion.
Material Considerations
The performance of washers is significantly influenced by the materials from which they are made. Common materials include carbon steel, stainless steel, brass, aluminum, and various plastics. Each material offers distinct advantages and limitations:
Carbon Steel: Offers high strength and is cost-effective, suitable for general-purpose applications.
Stainless Steel: Provides excellent corrosion resistance, ideal for marine and chemical environments.
Brass: Resists corrosion and is non-magnetic, useful in electrical applications.
Aluminum: Lightweight with good corrosion resistance, used in aerospace and automotive industries.
Plastics: Non-conductive and corrosion-resistant, suitable for electrical insulation and chemical exposure.
Surface treatments and coatings, such as zinc plating, black oxide, or anodizing, enhance the properties of washers by providing additional corrosion resistance or aesthetic qualities. The choice of material and finish must align with the application's mechanical requirements and environmental conditions.
Applications of Washers
Washers are ubiquitous in various industries due to their versatility. In construction, they are used to distribute loads in structural joints, ensuring the stability of buildings and bridges. The automotive industry relies on washers to maintain the integrity of assemblies subjected to constant vibrations and dynamic loads. In the aerospace sector, precision-engineered washers are critical for weight reduction and reliability in extreme conditions.
For electrical and electronic applications, insulating washers prevent the flow of electricity between components, safeguarding sensitive equipment. In plumbing and piping systems, washers provide seals to prevent leaks, maintaining system integrity and efficiency.
Quality Standards and Manufacturing
Adherence to international standards is crucial for the reliability of washers. Standards such as DIN, ANSI/IFI, JIS, BS, ISO, and GB specify the dimensions, materials, and performance criteria for washers. Manufacturers like Ningbo Topbolt Metalworks Co., Ltd. implement these standards to produce high-quality washers that meet global industry requirements.
The manufacturing process of washers involves stamping, machining, heat treatment, and surface finishing. Quality control is essential at every stage, from raw material analysis to final inspection. Advanced manufacturing techniques and supply chain management ensure that products meet stringent quality standards and are delivered efficiently to customers worldwide.
Case Study: Manufacturing Excellence
Consider a manufacturer with over two decades of experience, producing a diverse range of washers for international markets. By implementing ISO9001:2015 quality management systems, they ensure consistent product quality. Their monthly production capacity exceeds 2,000 tons, and they export to regions including North America, Europe, and Southeast Asia. This level of production requires meticulous attention to detail and a commitment to continuous improvement.
Selecting the Right Washer for Your Application
Choosing the appropriate washer involves several considerations:
Load Requirements: Determine the load the assembly will bear to select a washer that can distribute the force effectively.
Environmental Conditions: Assess exposure to corrosion, temperature extremes, and chemical agents to choose suitable materials and finishes.
Vibration and Movement: If the assembly is subject to vibration, consider spring or lock washers to maintain tension.
Material Compatibility: Ensure the washer material is compatible with other components to prevent galvanic corrosion.
Standards Compliance: Use washers that comply with relevant standards for quality assurance and interoperability.
Working with reputable manufacturers who provide detailed specifications and certifications can simplify the selection process. Companies that offer customization, such as non-standard sizes or special finishes, can cater to unique application needs.
Conclusion
Washers, though small, are critical to the success of mechanical assemblies across numerous industries. Understanding the differences between flat washers, spring washers, and lock washers empowers professionals to make informed decisions that enhance the performance and reliability of their projects. By considering material properties, manufacturing standards, and application-specific requirements, one can select the ideal washer for any situation.
As the industry advances, manufacturers like Ningbo Topbolt Metalworks Co., Ltd. continue to innovate in washer production, adhering to strict quality standards and providing a wide range of Flat Washers and other fasteners to meet global demand. Their commitment to excellence ensures that the essential components remain reliable in their critical roles.
