Flat washers are indispensable components in the world of fastening and assembly. They serve as a buffer between the bearing surface of a fastener and the material being fastened, distributing load and preventing damage. Understanding the grades of flat washers is crucial for engineers, manufacturers, and professionals who seek to ensure structural integrity and longevity in their projects. This comprehensive analysis delves into the various grades of flat washers, their material compositions, applications, and the standards that govern their production.
In the realm of fastening hardware, flat washers play a pivotal role. They not only enhance the performance of fasteners but also safeguard the materials involved from potential damage. As such, selecting the appropriate grade of flat washer is a decision that can significantly impact the success of a project. This article aims to provide a detailed exploration of flat washer grades, shedding light on their characteristics and guiding professionals in making informed choices.
Understanding Flat Washer Grades
Flat washer grades are classifications that denote the material properties and mechanical strength of the washers. These grades are essential indicators that help in determining the suitability of a washer for specific applications. The grading system is often based on international standards set by organizations such as ASTM, DIN, ISO, and others. These standards ensure consistency, reliability, and safety across different applications and industries.
The grades of flat washers can be broadly categorized based on their material composition, which includes carbon steel, stainless steel, and other alloys. Each material offers distinct advantages and is selected based on factors such as environmental conditions, load requirements, and compatibility with other materials. For instance, carbon steel washers are renowned for their strength, while stainless steel washers are preferred for their corrosion resistance.
Carbon Steel Flat Washers
Product grade:
The product grades of washers are mainly F, A and C. F corresponds to fine tolerance, A corresponds to precision tolerance, and C corresponds to large tolerance.
Hardness grade:
The hardness grade of a washer is related to its product grade. The hardness grade of a washer with product grade C is 100HV, and the hardness grade of a washer with product grade A is 200HV and 300HV.
The selection of the appropriate grade is critical, as using a washer with insufficient strength can lead to failure under load. Conversely, over-specifying can lead to unnecessary costs. Therefore, understanding the specific requirements of the application is essential when choosing a carbon steel flat washer.

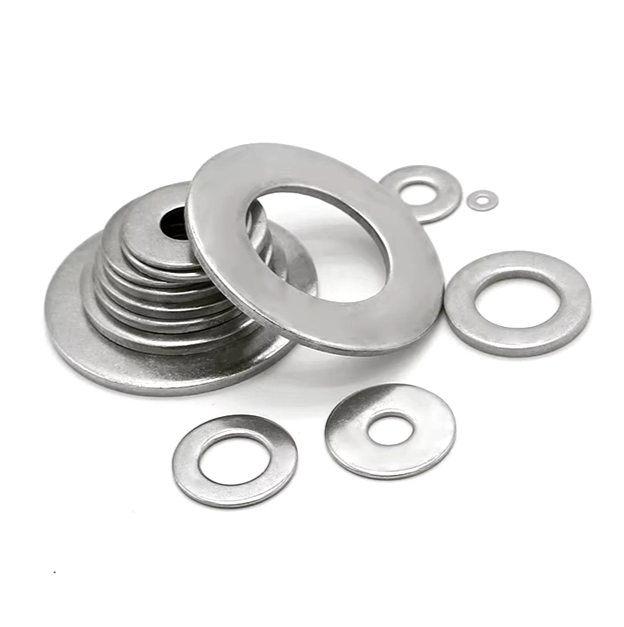

Stainless Steel Flat Washers
Stainless steel flat washers are prized for their corrosion resistance and aesthetic appeal. They are ideal for applications exposed to moisture, chemicals, and outdoor environments. The common grades in this category include:
304 Stainless Steel (A2): Offers good corrosion resistance and is suitable for general-purpose use.
316 Stainless Steel (A4): Provides superior corrosion resistance, especially against chlorides and acidic environments. Used in marine and chemical processing industries.
The choice between 304 and 316 grades hinges on the environmental conditions. For instance, in coastal areas where salt exposure is prevalent, 316 stainless steel washers are preferred due to their enhanced resistance to pitting and corrosion.
International Standards for Flat Washers
International standards play a crucial role in defining the dimensions, mechanical properties, and testing methods for flat washers. Adhering to these standards ensures compatibility and reliability across different regions and industries. Key standards include:
ASTM Standards
The American Society for Testing and Materials (ASTM) provides several standards for flat washers, such as ASTM F436/F436M. This standard specifies the requirements for hardened steel washers used with high-strength structural bolts. It outlines mechanical properties, dimensions, and hardness levels.
ASTM F436 washers are used in structural applications where high load-bearing capacity is needed, such as in the construction of bridges and buildings. The washers are heat-treated to achieve the necessary hardness and strength.
DIN Standards
The Deutsches Institut für Normung (DIN) sets German standards that are widely adopted internationally. For flat washers, standards like DIN 125A and DIN 9021 specify the dimensions and tolerances:
DIN 125A: Standard for plain washers with metric dimensions, commonly used in general-purpose applications.
DIN 9021: Specifies large series washers with increased outer diameter for distributing load over a larger area.
These standards ensure that washers meet specific size and tolerance requirements, facilitating interoperability and consistency in manufacturing and engineering projects.
ISO Standards
The International Organization for Standardization (ISO) establishes global standards to unify specifications across countries. ISO 7089 and ISO 7093 are examples of standards for flat washers:
ISO 7089: Defines specifications for plain washers, similar to DIN 125A.
ISO 7093: Specifies dimensions for large plain washers, analogous to DIN 9021.
Compliance with ISO standards is particularly important for companies operating internationally, ensuring that their products meet universally accepted criteria and can be used in multinational projects.
Material Considerations and Coatings
Beyond the basic material grades, flat washers can undergo various treatments and coatings to enhance performance. These include galvanization, zinc plating, and other surface treatments that improve corrosion resistance and durability.
Galvanized Washers
Hot-dip galvanizing involves coating the washer with a layer of zinc, providing robust protection against corrosion. Galvanized washers are ideal for outdoor applications where exposure to the elements is a concern. The zinc layer acts as a sacrificial anode, corroding before the underlying steel.
Zinc-Plated Washers
Zinc plating is a more economical method of corrosion protection compared to galvanization. It involves electroplating a thin layer of zinc onto the washer. While offering some protection, zinc-plated washers are better suited for indoor applications where corrosion risk is lower.
Specialty Coatings
In certain industries, washers may require specialty coatings such as Teflon, ceramic, or other proprietary treatments. These coatings can provide additional benefits like enhanced chemical resistance, reduced friction, or thermal insulation. Selecting the right coating depends on the specific demands of the application.
Applications of Different Flat Washer Grades
The diverse grades of flat washers cater to a wide range of applications across various industries. Understanding where and how to use each grade is vital for the optimization of mechanical assemblies.
Construction and Structural Engineering
In construction, high-strength washers such as ASTM F436 are used in conjunction with structural bolts to secure steel components. These washers distribute loads and prevent bolt heads or nuts from damaging the structural elements. The use of appropriate flat washers contributes to the overall safety and integrity of buildings and infrastructures.
Automotive Industry
The automotive sector often utilizes medium to high-grade washers to withstand vibrations and dynamic loads. Grade 5 and Grade 8 carbon steel washers are common, providing the necessary strength for engine components, chassis assembly, and suspension systems.
Marine and Chemical Industries
Applications in marine environments or chemical processing plants demand materials that resist corrosion. Stainless steel washers, particularly Grade 316, are preferred due to their ability to withstand harsh conditions without degrading. These washers ensure longevity and reliability in environments where failure could have severe consequences.
Aerospace Applications
The aerospace industry requires washers made from high-quality materials with precise dimensions. Specialty alloys and coatings are often used to meet strict weight and performance criteria. Flat washers in this field must adhere to rigorous standards to guarantee safety and functionality under extreme conditions.
Selecting the Appropriate Flat Washer Grade
Choosing the right flat washer grade involves considering several factors, including mechanical requirements, environmental conditions, compatibility with other materials, and cost. Engineers must evaluate the specific needs of their applications to select washers that provide optimal performance.
Mechanical Requirements
Understanding the load, vibration, and stress levels in the application is crucial. High-strength washers are necessary for heavy loads and structural applications, while lower-grade washers may suffice for less demanding tasks. The mechanical properties must align with the demands to prevent failure and ensure safety.
Environmental Conditions
Environmental factors like exposure to moisture, chemicals, or extreme temperatures influence material selection. Corrosion-resistant materials like stainless steel or galvanized washers are essential in harsh environments to maintain integrity over time. Neglecting these factors can lead to premature degradation and costly repairs.
Material Compatibility
Using washers made of materials compatible with the bolts and nuts prevents galvanic corrosion and other adverse reactions. For example, pairing stainless steel washers with stainless steel fasteners ensures uniform corrosion resistance and structural cohesion.
Cost Considerations
Budget constraints often play a role in material selection. While higher-grade washers offer superior performance, they come at a higher cost. Balancing performance requirements with economic factors is essential to achieve a cost-effective solution without compromising quality.
Quality Assurance and Manufacturing Excellence
Ensuring the quality of flat washers is paramount. Manufacturers like Ningbo Topbolt Metalworks Co., Ltd. implement rigorous quality control measures, adhering to ISO9001:2015 standards. By conducting thorough inspections from raw material analysis to final approval, they guarantee that their flat washers meet the highest standards.
Quality assurance processes include mechanical testing, dimensional inspections, and material certifications. These practices not only ensure compliance with international standards but also build trust with customers who rely on consistent and reliable components for their projects.
Conclusion
Understanding the grades of flat washers is essential for professionals across various industries. The proper selection and application of these components contribute significantly to the safety, durability, and success of engineering projects. By considering factors such as material properties, international standards, environmental conditions, and mechanical requirements, one can make informed decisions that enhance performance and reliability.
As the industry evolves, manufacturers like Ningbo Topbolt Metalworks Co., Ltd. continue to innovate and uphold quality standards, providing a diverse range of flat washers that meet the ever-changing needs of the market. By staying informed and selecting the appropriate washer grades, engineers and professionals can ensure the integrity and success of their projects for years to come.
