Tightening a bolt creates concentrated pressure beneath the head or nut. That small contact area can affect the entire joint. A flat washer sits between the fastener and the joint surface. It increases the bearing area and reduces local surface pressure. It can also protect the material and create a more stable seating surface. These effects may reduce indentation, embedment, and unwanted preload loss. However, a standard flat washer should not be treated as an anti-loosening device. Here, you will learn when a washer matters, where it should be placed, and how diameter, thickness, and hardness affect bolted joint performance.
How a Flat Washer Changes the Load Path in a Bolted Joint
When a bolt is tightened, tension develops inside the fastener. This tension creates compression between the joined parts. The bolt head and nut must transfer this force into nearby material.
Without a washer, the bearing surface is limited. The bolt head or nut contacts the joint directly. Pressure becomes concentrated around that relatively small area.
A flat washer adds another load-transfer surface. Its outer diameter is usually larger than the fastener's direct bearing face. The clamp force can therefore enter the joint through a wider area.
Increasing the Bearing Area Under the Bolt Head or Nut
The effect is easiest to understand through the load path.
Without a washer:
Bolt or nut → small bearing area → joint material
With a washer:
Bolt or nut → washer → larger bearing area → joint material
The washer does not spread the load equally throughout the complete assembly. Instead, it changes how force enters the material near the bolt hole.
This difference becomes important on softer or thinner parts. A small bearing surface may create enough pressure to indent them. A wider washer surface can reduce this local concentration.
Consider a steel bolt clamping a relatively thin aluminum bracket. The bolt may have sufficient strength for the load. However, the softer bracket can still deform beneath the bolt head. A properly selected washer gives the force a wider path into the aluminum.
Reducing Local Bearing Stress Without Increasing Bolt Preload
A larger washer does not automatically produce greater bolt tension. This distinction matters during fastener selection. Bolt preload describes the tensile force created inside the tightened bolt. Bearing pressure describes the contact pressure beneath the head, nut, or washer. They are related, but they are not the same.
For the same clamp force, increasing the effective bearing area can lower average contact pressure. This can help when the mating material has limited compressive strength.
The effect is useful for materials such as:
Thin sheet metal, where local deformation can occur easily.
Aluminum parts, which may indent under high contact pressure.
Plastic components, where crushing and creep require attention.
Wood assemblies, where fibers can compress beneath the fastener.
Coated surfaces, where concentrated contact can damage the finish.
A washer cannot correct an unsuitable bolt size or weak joint design. It simply provides a better bearing interface when correctly selected.
How a Flat Washer Protects the Joint Surface During Tightening
Load distribution is only one function. The washer also separates the fastener from the mating surface. This matters because the nut or bolt head may rotate during tightening. Direct rotation against the component can damage the surface. The risk increases when finishes or softer materials are involved.
Limiting Indentation, Crushing, and Fastener Pull-Through
High clamp force creates pressure around the bolt hole. If the material cannot support this pressure, it may deform.
Several problems can follow:
The bolt head may sink into the surface.
The nut may leave a deep bearing mark.
Thin material may dish around the hole.
The hole may become locally distorted.
The fastener may begin pulling through weak material.
A larger bearing area can reduce these risks. This explains why washer outside diameter matters. Two washers may fit the same bolt but cover very different areas.
A larger-diameter design can be useful near oversized holes. It can also help when the surface needs greater coverage. However, diameter alone does not guarantee better performance. The washer must also resist bending. A very wide but weak washer can dish under high preload.
Providing a Controlled Surface Beneath a Rotating Fastener
During tightening, friction develops beneath the rotating component. That friction affects both the surface and tightening behavior. Direct rotation can scratch paint or protective coatings. It may also damage plated or machined surfaces. Galling can become another concern between certain materials.
A washer creates a replaceable bearing interface. It receives much of the direct contact from the fastener. This protection can matter in machinery, automotive assemblies, structural components, and exposed equipment. Damage to a protective coating may also expose the substrate to corrosion.
The washer still needs compatible material and finish. Poor material pairing can create new corrosion or friction problems. For example, carbon steel and stainless steel washers behave differently in corrosive environments. Surface finish also affects long-term exposure.
Why Washer Bearing Conditions Can Affect Preload Retention
A bolted connection depends heavily on retained clamp force. Installation torque alone does not guarantee long-term preload. After tightening, small surface changes can occur. Roughness can flatten. Coatings can compress. Softer materials may deform slightly. These changes reduce the effective thickness of the clamped joint.
Embedment and Settlement After Tightening
Every real surface has microscopic peaks and valleys. They may look smooth to us, but contact happens through small high points. Tightening compresses these irregularities. Additional settlement may continue after assembly.
Several factors increase this effect:
rough mating surfaces,
thick coatings,
burrs around holes,
softer joint materials,
uneven bearing faces,
local material crushing.
When these layers settle, the joint becomes slightly thinner. The bolt loses a small amount of elongation. Retained preload can then decrease.
A suitable flat washer can provide a harder and more consistent bearing surface. It may reduce localized deformation around the fastener. However, it cannot remove every source of settlement. Joint design, material stiffness, finish thickness, and installation method still matter.
Stable Seating Is Not the Same as Anti-Loosening
This distinction is especially important in purchasing decisions. A flat washer may improve seating conditions. Better seating can reduce one possible source of preload loss.
However, a normal flat washer does not automatically lock the fastener. Vibration loosening involves several variables. These include preload, joint stiffness, transverse movement, friction, and loading direction.
For that reason, adding an ordinary washer should not be treated as a universal vibration solution. A properly designed joint may use another locking method when needed. The washer then performs its bearing function separately.
Where Should a Flat Washer Be Placed in a Bolted Joint?
Washer position should follow the actual tightening method. There is no universal rule requiring washers on both sides. A useful starting point is the rotating fastener component.
Under the Nut, Under the Bolt Head, or on Both Sides
If the nut rotates during tightening, a washer is commonly placed beneath the nut. It then provides the bearing surface for that movement. If the bolt head rotates, the washer may instead sit beneath the bolt head. Some joints use washers on both sides. This arrangement can make sense when both surfaces need greater bearing support or protection.
Tightening Condition
Typical Washer Position
Main Reason
Nut rotates
Under the nut
Provides bearing surface during tightening
Bolt head rotates
Under the bolt head
Protects the surface beneath the head
Both surfaces need support
Both sides
Adds bearing area at both interfaces
Engineered structural joint
Per specification
Maintains specified connection behavior
The table provides general guidance only. Engineering drawings and applicable standards take priority.
Cases Where Adding a Washer Is Not Automatically Better
More hardware does not always create a better connection. Some bolts already have enlarged flange heads. Certain nuts also provide wide bearing faces. These designs may already provide suitable contact area.
Adding a washer also changes the joint stack. That change can affect several details:
thread engagement,
available grip length,
installation space,
bolt projection,
tightening requirements.
The correct question is not, “Should every bolt have a washer?” A better question is, “Does this bearing interface need more area, protection, or support? If the answer is no, an added washer may provide little benefit.
Which Flat Washer Characteristics Actually Affect Joint Performance?
Not every washer fitting the same bolt performs the same job. Hole diameter matters for basic fit. However, outside diameter, thickness, hardness, material, and finish affect the joint interface. This is where standards such as DIN, SAE, USS, and ASTM become relevant.
Outside Diameter and Available Bearing Area
Outer diameter controls how much surface the washer can potentially cover. A DIN125A flat washer represents a common general-purpose form. A DIN9021 flat washer has a larger outside diameter for greater surface coverage.
Topbolt specifically lists DIN 9021 designs as having larger outside diameters than standard flat washer configurations. That difference can matter on thin sheets or softer surfaces. It may also help around larger clearance holes.
The same principle appears in American-style washer selection. SAE USS flat washer designs differ in their dimensional proportions. Engineers should therefore check actual dimensions instead of relying only on nominal bolt size.
In our washer range, we provide different dimensions, materials, finishes, and hardness options because the required bearing surface depends on the fastener and joint conditions rather than bolt diameter alone. Our listed range includes SAE USS and DIN125A/DIN9021 flat washer options.
A larger washer is still not automatically stronger. Increasing outside diameter also increases the unsupported span between the bolt bearing area and washer edge. Thickness and material strength must support that geometry.
Thickness, Hardness, and Resistance to Washer Deformation
A washer should remain stable under the expected clamp load. If it bends heavily, the load path changes. If it dishes, the useful bearing area may decrease. If it embeds beneath the nut, preload stability may suffer.
Hardness becomes especially important in high-preload connections. A soft washer placed beneath a high-strength structural fastener can deform. This may compromise the intended bearing conditions. That is why hardened washer standards exist for demanding joints.

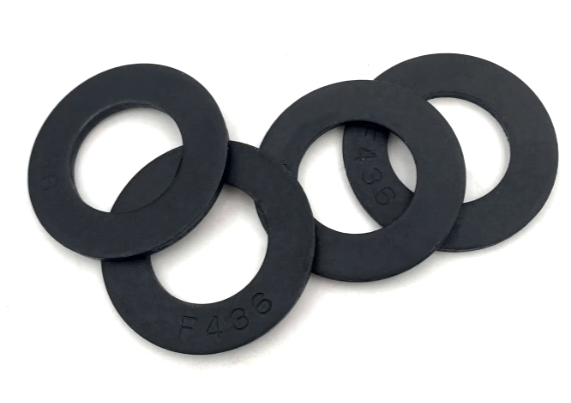

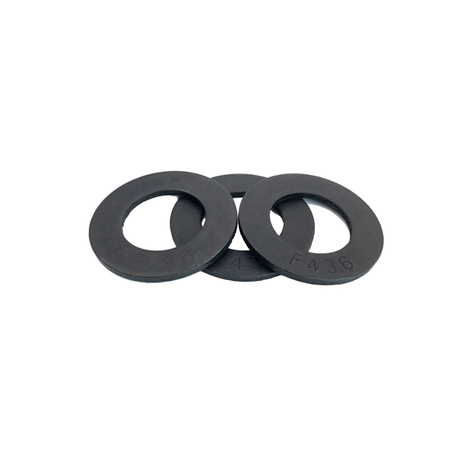

An ASTM F436/F436M flat washer is associated with structural bolting applications where washer properties matter alongside the bolt assembly. Topbolt lists ASTM F436/F436M carbon steel flat washers from 1/4 inch to 4 inches. It also lists washer hardness levels of 100HV, 200HV, and 300HV across its broader range.
This does not mean every application needs the hardest washer available. Matching the washer to the fastener system remains more important.
A simple selection check can follow this order:
1. Confirm the bolt and hole dimensions.
2. Review the required bearing area.
3. Check washer thickness and stiffness.
4. Match hardness to the fastener system.
5. Select material for the environment.
6. Confirm coating or finish requirements.
7. Follow any governing connection standard.
This method prevents buyers from choosing washers by inside diameter alone.
When Does a Bolted Joint Need More Than a Standard Flat Washer?
A standard washer works well in many general assemblies. Some connections need closer engineering review. The warning signs usually appear when preload, material strength, or hole geometry becomes more demanding.
High-Preload, Thin-Material, and Oversized-Hole Connections
High-strength bolts can create significant bearing pressure. The joint surface must support that load without excessive deformation. Thin sheet requires similar attention. It may lack enough local stiffness around the bolt hole. Oversized or slotted holes create another challenge. A small washer may not provide enough coverage around the opening.
These situations deserve closer review:
High bolt preload: Washer hardness and thickness become more important.
Soft joint material: More bearing area may reduce local indentation.
Thin sheet: Larger support may reduce dishing near the hole.
Oversized holes: Washer outside diameter must provide sufficient overlap.
Slotted holes: Position and coverage require careful checking.
Finished surfaces: Material and coating compatibility become important.
Structural joints: Applicable standards should control washer selection.
The washer should never be considered separately from the bolt. Bolt grade, nut geometry, hole dimensions, and joint material all affect the result.
Warning Signs the Washer or Bearing Interface Is Inadequate
Many installation problems become visible during inspection. A washer that cups noticeably may lack adequate stiffness. A washer cutting deeply into the surface may be too small or too soft for the joint conditions.
Other warning signs include:
washer edges pressing into the component,
visible washer bending,
nut embedding into the washer,
material crushing near the hole,
heavy coating displacement,
recurring clamp-force loss,
permanent indentation after tightening.
These signs do not automatically mean a larger washer solves the problem. The issue may involve incorrect torque, inadequate hardness, thin material, poor surface condition, or unsuitable fastener geometry.
For applications requiring non-standard dimensions or application-specific finishes, we can match washer characteristics to the intended bolted connection rather than treating every flat washer as interchangeable. Topbolt's published range includes custom sizes, several materials, multiple finishes, and flat washer hardness options.
Conclusion
A flat washer creates a controlled bearing surface beneath a bolt head or nut. It increases bearing area and lowers concentrated pressure on the joint. It can also reduce surface indentation and protect materials during tightening. Proper selection may provide more stable seating under the required preload. However, a flat washer does not automatically prevent vibration loosening. Its main role is load distribution and surface support. Use one when the bearing surface is too small, soft, or easily damaged. Diameter, thickness, hardness, material, and placement should match the joint conditions. Ningbo Topbolt Metalworks Co., Ltd. provides washer options for different fastening requirements. These products help improve bearing support, surface protection, and connection reliability.
FAQ
Q: What does a flat washer do under a bolt or nut?
A: A flat washer increases the bearing area beneath the fastener. It reduces localized pressure, protects the joint surface, and provides more stable seating during tightening.
Q: Does a flat washer keep a bolt from loosening?
A: A flat washer does not directly lock a bolt against vibration. Its main role is load distribution and surface support, although reduced embedment may help preserve preload.
Q: Should a flat washer go under the bolt head or the nut?
A: A flat washer is commonly placed beneath the component that rotates during tightening. Some joints use washers on both sides when both bearing surfaces need protection or support.
Q: What is the difference between SAE and USS flat washers in a bolted joint?
A: SAE and USS flat washer designs use different dimensional proportions. Their outside diameters and thicknesses can affect available bearing area, so selection should match the joint requirements.
Q: Why is an ASTM F436/F436M flat washer used with structural bolts?
A: An ASTM F436/F436M flat washer is designed for demanding structural bolting applications. Its hardened construction helps resist deformation beneath high-strength fasteners and supports controlled bearing conditions.
