1. Introduction
When sourcing American standard fasteners, one of the most common points of confusion is the difference between USS and SAE flat washers. Both are widely used flat washers in the North American market, but they differ significantly in outer diameter, thickness, and intended applications. Choosing the wrong type can lead to insufficient bearing surface, inadequate load distribution, or assembly compatibility issues.
This article provides a detailed comparison of USS flat washers and SAE flat washers, covering dimensional specifications, material grades, application scenarios, and selection guidance to help overseas buyers make informed procurement decisions.

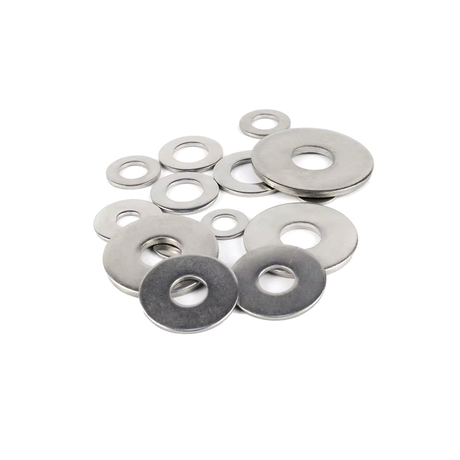

2. What Are USS and SAE Flat Washers?
2.1 USS Flat Washer Definition
USS (United States Standard) flat washers are the heavier, larger-diameter series of American standard flat washers. They feature a wider outer diameter and greater thickness compared to SAE washers of the same nominal bolt size. USS washers are designed to provide a larger bearing surface and distribute clamping load over a wider area, making them suitable for heavy-duty and structural applications.
USS washers are commonly specified in construction, structural steel, heavy machinery, and applications where the bolt hole may be oversized or where additional load distribution is required. They are typically paired with ASTM A325 structural bolts and other heavy hex bolts.
2.2 SAE Flat Washer Definition
SAE (Society of Automotive Engineers) flat washers are the lighter, smaller-diameter series. They have a narrower outer diameter and thinner profile than USS washers, designed for use in automotive, appliance, and general industrial applications where space is limited and the load requirement is moderate.
SAE washers are the standard choice for automotive assembly, electrical equipment, furniture, and light machinery. They are commonly used with SAE Grade 5 and Grade 8 hex bolts in non-structural applications.
3. Key Dimensional Differences
3.1 Outer Diameter
The most noticeable difference is the outer diameter (OD). For any given bolt size, a USS washer has a significantly larger OD than an SAE washer. For example, for a 1/2" bolt:
This means the USS washer provides approximately 40% more bearing surface area, which translates to better load distribution and reduced risk of pulling through softer materials.
3.2 Thickness
USS washers are also thicker than SAE washers. Using the 1/2" bolt size example:
The greater thickness of USS washers provides higher compressive strength and resistance to cupping or deformation under heavy clamping loads.
3.3 Hole Size
Both USS and SAE washers use a standard hole size that provides clearance for the corresponding bolt diameter. The hole size is typically slightly larger than the nominal bolt diameter to allow for minor misalignment. The hole diameter is generally consistent between USS and SAE for the same bolt size, as both must accommodate the same bolt shank.
4. Size Chart Comparison
The table below provides a side-by-side comparison of common USS and SAE flat washer dimensions for reference.
Bolt Size | USS OD | USS Thickness | SAE OD | SAE Thickness | Hole ID (both) |
1/4" | 3/4" (19.0mm) | 3/64" (1.19mm) | 9/16" (14.3mm) | 1/32" (0.79mm) | 5/16" (7.94mm) |
5/16" | 7/8" (22.2mm) | 1/16" (1.59mm) | 11/16" (17.5mm) | 1/32" (0.79mm) | 3/8" (9.53mm) |
3/8" | 15/16" (23.8mm) | 5/64" (1.98mm) | 3/4" (19.0mm) | 1/16" (1.59mm) | 7/16" (11.1mm) |
7/16" | 1-1/8" (28.6mm) | 3/32" (2.38mm) | 13/16" (20.6mm) | 1/16" (1.59mm) | 1/2" (12.7mm) |
1/2" | 1-3/8" (34.9mm) | 9/64" (3.57mm) | 1-1/16" (26.2mm) | 1/16" (1.59mm) | 9/16" (14.3mm) |
5/8" | 1-3/4" (44.5mm) | 3/16" (4.76mm) | 1-5/16" (33.3mm) | 5/64" (1.98mm) | 11/16" (17.5mm) |
3/4" | 2" (50.8mm) | 7/32" (5.56mm) | 1-1/2" (38.1mm) | 3/32" (2.38mm) | 13/16" (20.6mm) |
7/8" | 2-1/4" (57.2mm) | 1/4" (6.35mm) | 1-3/4" (44.5mm) | 3/32" (2.38mm) | 15/16" (23.8mm) |
1" | 2-1/2" (63.5mm) | 9/32" (7.14mm) | 2" (50.8mm) | 1/8" (3.18mm) | 1-1/16" (26.2mm) |
5. Material & Strength Grade Options
Both USS and SAE flat washers are available in a range of materials and finishes to suit different application requirements.
Material | Common Grade | Typical Finish | Application |
Low Carbon Steel | Grade 2 / Commercial | Zinc plated, black oxide | General purpose, indoor use |
Medium Carbon Steel | Grade 5 / 8 | Zinc plated, phosphate | Automotive, machinery |
Alloy Steel | SAE J429 Grade 8 | Zinc plated, Dacromet | High-strength, heavy load |
Stainless Steel 304 | A2-70 | Plain (passivated) | Corrosion resistance, food grade |
Stainless Steel 316 | A4-80 | Plain (passivated) | Marine, chemical, coastal |
For structural applications, USS washers are often manufactured to meet ASTM F436 (hardened steel washers) specification, which requires specific hardness and dimensional tolerances. SAE washers typically follow ASME B18.21.1 standard.
6. Application Scenarios
6.1 USS Flat Washer Applications
Structural steel connections: Building frames, bridges, industrial facilities
Heavy machinery bases: Equipment mounting, generator sets, pumps
Wood-to-steel connections: Larger bearing surface prevents pull-through
Oversized or slotted holes: Compensates for larger hole diameters
High-load clamping: Where load distribution is critical
6.2 SAE Flat Washer Applications
Automotive assembly: Engine components, chassis, body panels
Electrical enclosures: Control panels, junction boxes
Appliance manufacturing: Household and industrial appliances
Furniture and shelving: Light to medium load assemblies
General industrial: Where space is limited and loads are moderate
7. How to Choose Between USS and SAE
Check the project specification: Structural drawings and engineering specs will explicitly call for USS or SAE. Always follow the specified standard.
Consider the load: For heavy structural loads, choose USS for its larger bearing surface and greater thickness. For light to medium loads, SAE is sufficient and more economical.
Evaluate space constraints: If the assembly has limited radial clearance around the bolt, SAE washers smaller OD may be necessary.
Match to bolt type: Heavy hex structural bolts (A325/A490) typically use USS/F436 washers. Regular hex bolts (SAE Grade 5/8) typically use SAE washers.
Assess the base material: When fastening into wood, plastic, or thin sheet metal, USS washers larger surface area helps prevent pull-through.
Quick Rule of Thumb: If the application is structural or heavy-duty, use USS. If it is automotive, appliance, or general-purpose, use SAE. When in doubt, consult the engineering drawing or bolt manufacturer recommendation.
8. Common Mistakes & Pitfalls
8.1 Using SAE Washer for Structural Applications
Problem: SAE washers smaller OD and thinner profile cannot provide sufficient bearing surface for structural loads, leading to washer deformation or pull-through. Solution: Always use USS or ASTM F436 hardened washers for structural steel connections as specified by the building code.
8.2 Assuming Interchangeability
Problem: USS and SAE washers are not interchangeable despite fitting the same bolt size. Using the wrong type can affect clamp load distribution and assembly integrity. Solution: Verify the washer specification against the project requirements before installation. Check both OD and thickness.
8.3 Ignoring Hardness Requirements
Problem: Using soft commercial-grade washers with high-strength bolts can cause the washer to cupp or deform, reducing preload. Solution: For Grade 8 or A325 bolts, use hardened washers (ASTM F436 for USS, or through-hardened SAE washers) to maintain consistent clamping force.
8.4 Mismatched Hole Size
Problem: Using a washer with an oversized inner diameter relative to the bolt can cause misalignment and uneven load distribution. Solution: Always match the washer nominal size to the bolt diameter. Standard USS and SAE washers have properly sized clearance holes for their designated bolt size.
9. Frequently Asked Questions
Q1: Are USS and SAE washers interchangeable?
No. While both fit the same bolt diameter, they have different outer diameters and thicknesses. USS washers are larger and heavier for structural applications, while SAE washers are smaller and lighter for general-purpose use. Using the wrong type may compromise the joint integrity.
Q2: Which washer type is stronger?
USS washers are generally stronger due to their greater thickness and larger bearing surface. However, strength also depends on the material and hardness grade. A hardened SAE washer may be stronger than a low-carbon USS washer. For critical applications, always check the material grade specification.
Q3: Can I use USS washers with regular hex bolts?
Yes, USS washers can be used with regular hex bolts when a larger bearing surface is needed. However, they may be overkill and less economical for light-duty applications. SAE washers are the standard match for regular hex bolts in non-structural assemblies.
Q4: What does "USS" stand for in washers?
USS stands for "United States Standard." It refers to the heavier, larger-diameter flat washer series originally standardized for industrial and structural use in the United States.
Q5: Where can I buy USS and SAE flat washers in bulk?
NINGBO TOPBOLT METALWORKS CO., LTD supplies both USS flat washers and SAE flat washers in full size range from 1/4" to 1-1/2", with various materials and surface treatments. Bulk packaging and custom specifications are available for overseas project procurement.
