1. Introduction

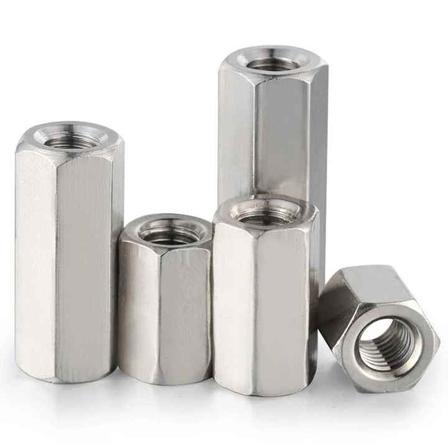

DIN6334 long hex nuts are specialized extended fasteners different from standard short DIN934 nuts. With extended thread engagement length, they are widely used for threaded rod adjustment, pipe hangers, solar bracket positioning, fixture assembly and machinery leveling structures that require stroke adjustment, double nut locking and long-term load-bearing performance. Standard short nuts provide limited thread contact, unable to support frequent adjustment and high-vibration working conditions.
DIN6334 Long Hex Nuts Most common problems such as thread slipping, jamming, loosening and rod deformation are caused by mismatched sizes, different thread pitches and unmatched strength grades between DIN6334 nuts and threaded rods. Improper matching reduces adjustment accuracy and brings structural failure risks under heavy load conditions.
Compiled by the TOPBOLT technical team with rich experience in industrial bracket and fixture fastener supporting, this article explains the standardized matching rules, size correspondence, grade matching standards and error prevention solutions for DIN6334 nuts and threaded rod assemblies.
2. Core Matching Principle
The biggest advantage of DIN6334 nuts is the extended effective thread engagement length, increasing contact area by 1.8–2.5 times compared with ordinary DIN934 nuts. It effectively reduces thread surface pressure and improves anti-slip, anti-fatigue and anti-vibration performance.
The core matching rule is same diameter, same thread pitch and equivalent material grade. Metric threaded rods are divided into coarse thread and fine thread types. Mismatched pitch causes zero fit and thread damage. Meanwhile, unmatched strength grades lead to thread wear and galling under dynamic loads.
3. Step-by-Step DIN6334 & Threaded Rod Matching Method
Step 1: Confirm rod diameter and thread pitch Distinguish coarse thread and fine thread specifications accurately. Most industrial rods adopt standard coarse pitch, while fine pitch rods are only used for precision micro-adjustment structures.
Step 2: Select identical DIN6334 size Adopt one-to-one size matching: M6 rod with M6 DIN6334, M8 rod with M8 DIN6334, ensuring perfect thread fitting without shaking or jamming.
Step 3: Match equivalent material and strength grade 4.8 carbon steel rod matches 4.8 DIN6334; 8.8 high-tensile rod must cooperate with 8.8 long nuts; stainless steel rods adopt corresponding A2/A4 stainless steel nuts. Low-grade matching is prohibited for load-bearing structures.
Step 4: Select nut length according to adjustment stroke Standard extended DIN6334 length ensures sufficient thread contact during full-stroke adjustment, keeping smooth positioning and stable locking performance.
Step 5: Verify fitting by manual trial rotation Smooth rotation without stuck, offset or loose clearance confirms qualified matching for batch assembly.
4. Standard Size Matching Chart
This chart applies to HVAC hangers, solar brackets, machinery leveling and industrial fixture positioning.
Threaded Rod Size | Matched DIN6334 Size | Standard Pitch | Applicable Working Scenarios |
M6 | M6 DIN6334 | 1.0mm | Mini fixtures, light-duty electrical brackets |
M8 | M8 DIN6334 | 1.25mm | General machinery supports, light pipe hangers |
M10 | M10 DIN6334 | 1.5mm | Solar brackets, HVAC pipe adjustment |
M12 | M12 DIN6334 | 1.75mm | Heavy-duty hangers, mechanical load-bearing structures |
M16/M20 | M16/M20 DIN6334 | 2.0mm/2.5mm | Large equipment base, heavy steel structure adjustment |
5. Common Matching Mistakes & Solutions
Mistake 1: Same diameter equals universal fitting Risk: Mixing coarse and fine thread causes thread scratching and galling during assembly. Solution: Prioritize thread pitch confirmation before size selection.
Mistake 2: High-strength rod matched with low-grade nuts Risk: Low-strength nut threads wear out first under heavy load, causing structural sinking and positioning failure. Solution: Always match equivalent strength grades for load-bearing assemblies.
Mistake 3: Replace DIN6334 with standard DIN934 nuts Risk: Insufficient thread engagement leads to loose locking and stroke limitation, unstable under vibration. Solution: Adopt standard DIN6334 long nuts for all adjustable and double-locking structures.
Mistake 4: Mixed batches from different manufacturers Risk: Tolerance deviation causes over-tight or loose fitting, leading to stuck adjustment after corrosion. Solution: Batch procurement from the same supplier ensures unified tolerance standard.
6. Conclusion
Accurate matching between DIN6334 long hex nuts and threaded rods relies on identical size and pitch, equivalent material grade and scenario-based fitting. The extended thread structure guarantees stable adjustment and reliable locking for industrial bracket and leveling systems. Standardized matching effectively avoids thread jamming, slipping and loosening faults, ensuring long-term precision and stability of mechanical adjustment structures.
7. FAQ
Q1: Can DIN6334 nuts fit all same-diameter threaded rods? A: No. Both diameter and thread pitch must be identical. Mismatched coarse/fine threads cause thread damage and assembly failure.
Q2: Why choose DIN6334 instead of standard DIN934 nuts for adjustable brackets? A: DIN6334 provides longer thread engagement, larger adjustment stroke and better anti-vibration locking performance, which is essential for adjustable mechanical structures.
Q3: Must nuts and rods adopt the same strength grade? A: Yes. Mixed grades cause uneven stress and thread wear. Equivalent grade matching ensures balanced load-bearing capacity and structural safety.
