1. Introduction
DIN603 round head square neck bolts, DIN934 hex nuts and DIN125 flat washers form the most classic and versatile fastener combination for industrial assembly, timber construction, agricultural machinery and trailer frame structures. Matched assembly effectively disperses pressure, compensates mounting gaps and improves overall connection stability, which is widely adopted in European and American engineering projects.
DIN603 Bolt DIN934 Nut DIN125 Washer Sets Most common on-site problems such as joint loosening, surface denting, thread galling and incomplete fastening are not caused by product quality defects, but by incorrect assembly sequence, misplaced washers and non-standard tightening methods. Improper assembly reduces structural bearing capacity and brings hidden risks of equipment shaking and component falling off.
Compiled by the TOPBOLT technical team with rich overseas fastener supporting experience, this article introduces the full standardized assembly procedure, common mistakes correction and final inspection standards for DIN603 + DIN934 + DIN125 sets, providing reliable operation guidelines for global buyers, factory workers and construction teams.
2. Functions of Each Fastener Component

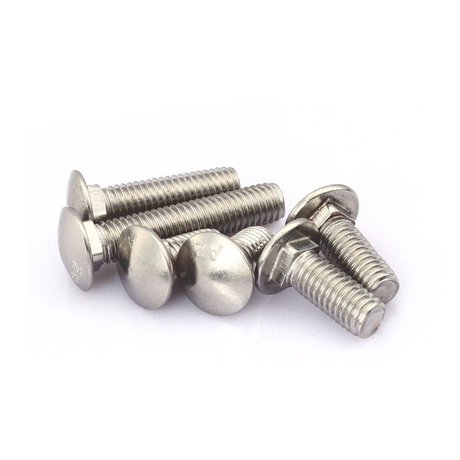

DIN603 Round Head Square Neck Bolt: The square neck prevents bolt rotation during tightening. The large round head expands contact area and provides excellent shear resistance, ideal for wood panel and steel plate through-hole fastening.
DIN125 Flat Washer: Evenly disperses nut compression force to protect workpiece surface from denting and cracking, fills assembly gaps and avoids unbalanced load stress.
DIN934 Hex Nut: Matches bolt thread to provide continuous pre-tightening force. Cooperates with flat washers to form stable clamping structure as the core locking component.
3. Step-by-Step DIN603 DIN934 DIN125 Assembly Method
Step 1: Specification check and visual inspection Confirm matching diameter and thread pitch for all components. Inspect threads for burrs, damage and rust, and ensure washers are flat and undeformed. Mixed-grade or mixed-batch assembly is prohibited.
Step 2: Insert DIN603 bolt into workpiece hole Attach the round head closely to the outer workpiece surface, clamp the square neck in place, keep the bolt vertical without skew or floating to ensure uniform stress distribution.
Step 3: Install DIN125 flat washer Slide the DIN125 washer onto the bolt shank, fit it fully and flat against the workpiece. Keep the washer centered without tilt or overlap.
Step 4: Hand-tighten DIN934 nut Screw on the DIN934 nut manually until it closely contacts the washer surface. Eliminate thread gaps completely to avoid thread stripping during tool tightening.
Step 5: Standard torque tightening with tools Fix the bolt steady and tighten the nut evenly with standard tools. Apply rated torque steadily without violent force to prevent thread fracture, plate crushing and bolt bending.
Step 6: Final assembly inspection Qualified assembly requires fully fitted washer, straight nut, smooth workpiece surface without dents, stable joint without shaking, and 2–3 exposed thread pitches after the nut.
4. Common Assembly Mistakes and Corrections
Mistake 1: Omit DIN125 washer Risk: Direct nut compression causes local stress concentration, surface cracking and long-term loosening. Correction: DIN125 washer is mandatory for all DIN603 through-hole connections.
Mistake 2: Tilted, reversed or overlapped washer installation Risk: Unbalanced pressure leads to fastener loosening under slight vibration. Correction: Install one flat washer horizontally and centered without overlap or reversal.
Mistake 3: Tool tightening without manual pre-tightening Risk: Residual thread gaps cause thread galling, stripping and stuck fasteners. Correction: Always hand-tighten first before torque fastening.
Mistake 4: Improper bolt length exposure Risk: Insufficient exposure causes weak clamping; excessive exposure leads to rust and collision risk. Correction: Keep 2–3 thread pitches exposed as standard assembly requirement.
5. Reinforcement Tips For Different Working Conditions
Indoor Light-Duty Connections Follow standard assembly steps. Stable fitting and zero shaking meet long-term service requirements.
Outdoor Timber & Fence Projects Adopt galvanized or HDG finished sets. Ensure full washer coverage to prevent rainwater penetration and corrosion loosening.
Vibration Machinery & Trailer Equipment Add lock washers optionally, apply standard torque strictly and recheck pre-tightening force regularly to resist vibration-induced micro loosening.
6. Conclusion
Qualified DIN603 + DIN934 + DIN125 assembly relies on standardized sequence, complete accessories, uniform stress and controllable torque. Following the standard procedure of bolt insertion, washer fitting, manual pre-tightening, torque fastening and final inspection effectively avoids common assembly defects. Standardized installation maximizes the shear resistance and anti-loosening performance of DIN603 bolt sets, ensuring long-term structural stability for timber constructions, agricultural machinery, outdoor projects and vehicle frame assemblies.
7. FAQ
Q1: Is DIN125 washer optional for DIN603 assembly? A: No. Omission of DIN125 washer causes direct nut compression, surface denting, cracking and unbalanced stress, greatly reducing connection strength and service life.
Q2: How many thread pitches should expose after DIN934 nut? A: 2–3 exposed thread pitches are the industrial standard, ensuring sufficient clamping force, neat appearance and anti-rust performance.
Q3: Do vibrating machines need extra reinforcement for DIN603 sets? A: Standard assembly meets general vibration scenarios. High-frequency heavy vibration conditions require additional lock washers and regular torque rechecks.
