1. Introduction
Full threaded rods are indispensable general fasteners for architectural suspension, pipeline support, mechanical assembly and steel structure connection. In European and international procurement markets, DIN975 and DIN976 are the two most common German standard full-thread bar specifications. Many overseas buyers and engineering constructors often confuse these two products due to their similar full-thread appearance, resulting in incorrect selection, unqualified installation or increased project costs.
Although both DIN975 and DIN976 belong to continuous threaded studs, they have essential differences in production standards, length tolerance, thread precision, structural design and applicable working conditions. This article systematically compares DIN975 and DIN976 threaded rods from structural features, dimensional tolerance, mechanical performance and application scenarios, helping customers accurately distinguish and select the right threaded rod for engineering and procurement.
2. Basic Standard Definition of DIN975 & DIN976

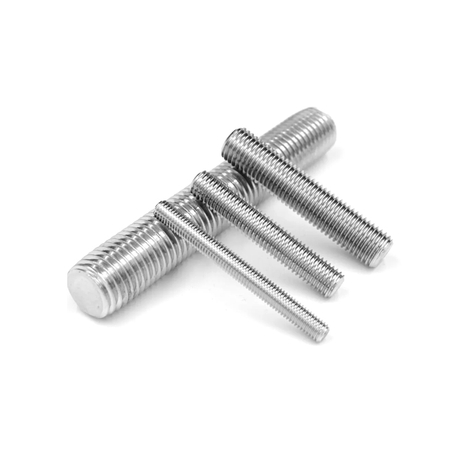

2.1 DIN975 Threaded Rod Standard DIN975 is the standard for general-purpose full-threaded rods. It specifies continuous thread bars with fixed conventional lengths, mainly used for civil construction, ceiling suspension, pipeline support and general mechanical fixing. This standard focuses on universal versatility, loose tolerance range and high cost performance, suitable for most conventional non-high-precision engineering scenarios.
2.2 DIN976 Threaded Rod Standard DIN976 is the standard for precision full-threaded studs. It features stricter dimensional tolerance, higher thread matching accuracy and better overall straightness. It is positioned for mechanical equipment assembly, mold clamping, pressure vessel connection and high-precision structural fastening scenarios with high requirements for fitting accuracy.
3. Core Structural & Appearance Difference
In visual observation, both are full-thread bars, but there are obvious structural differences in end face flatness, straightness and thread uniformity:
3.1 DIN975 Structural Features DIN975 threaded rod adopts conventional rolling thread process, with flat but slightly rough end cuts. The overall straightness is conventional grade, suitable for conventional suspension and support that do not require high assembly precision. The thread tooth profile is complete with general consistency, meeting standard nut matching requirements.
3.2 DIN976 Structural Features DIN976 threaded rod is processed with fine rolling and precision cutting. The end face is smooth and burr-free, with high overall straightness and uniform thread tooth pitch. No thread deformation or tooth collapse occurs, ensuring smooth locking and matching of high-precision nuts and washers.
4. Dimensional Tolerance & Precision Parameter Comparison
Tolerance difference is the core distinction between DIN975 and DIN976, which directly determines their application precision and engineering qualification rate. The detailed parameter comparison is as follows:
Comparison Item | DIN975 Full Threaded Rod | DIN976 Full Threaded Stud |
Tolerance Grade | General Commercial Tolerance | Precision Mechanical Tolerance |
Length Deviation | ±5mm / 1000mm | ±2mm / 1000mm |
Thread Pitch Accuracy | Conventional Deviation | High Precision, Uniform Pitch |
Straightness | Ordinary Straightness | High Straightness, Low Deflection |
End Face Condition | Ordinary Cutting, Slight Burrs | Smooth Cutting, Burr-Free |
Matching Precision | General Nut Matching | Precision Nut & Washer Matching |
5. Material Grade & Surface Treatment Range
5.1 DIN975 Application Range Mainly available in Grade 4.8 and Grade 8.8 carbon steel, with surface treatments of electro-galvanizing, black oxide and hot-dip galvanizing. It focuses on cost performance and is widely used in low-load and medium-load general engineering scenarios.
5.2 DIN976 Application Range Covers high-strength carbon steel Grade 8.8, 10.9 and stainless steel A2-70, A4-80. The surface treatment is fine and uniform, with strict control over thread coating thickness, avoiding thread jamming after galvanization. It is suitable for high-strength and high-precision mechanical connection scenarios.
6. Applicable Working Scenario Classification
6.1 Preferred Scenarios for DIN975 Threaded Rod
DIN975 is oriented to general construction and conventional support scenarios, with low precision requirements and high cost-effectiveness. Typical applications: building ceiling suspension, air duct and water pipe hanger support, photovoltaic bracket auxiliary fixing, light steel structure tension connection, factory civil engineering renovation and conventional equipment simple fixing.
6.2 Preferred Scenarios for DIN976 Threaded Stud
DIN976 focuses on precision assembly and high-load mechanical connection, requiring high straightness and thread matching accuracy. Typical applications: mechanical equipment frame assembly, mold clamping fixing, pressure vessel flange connection, automated tooling assembly, high-precision instrument support and heavy-duty structural tensioning.
7. Common Selection Mistakes & Engineering Hidden Dangers
Mistake 1: Using DIN975 for high-precision mechanical assembly Risk: Excessive length tolerance and poor straightness lead to assembly deviation, nut jamming and unstable structural stress, affecting equipment operation accuracy. Solution: Uniformly select DIN976 precision threaded rods for mechanical precision assembly.
Mistake 2: Blindly choosing DIN976 for civil suspension engineering Risk: Excessive precision redundancy leads to increased procurement costs, causing unnecessary waste of engineering budget. Solution: General ceiling and pipeline suspension fully meets the standard with DIN975.
Mistake 3: Confusing thread tolerance to cause matching failure Risk: DIN975 thread deviation may cause precision lock nuts to fail to lock in place. Solution: Match standard accessories according to rod specification; high-precision nuts must be paired with DIN976 studs.
8. Conclusion
DIN975 and DIN976 full threaded rods are both classic German standard threaded fasteners, but they have clear positioning differences. DIN975 is cost-effective for general civil engineering suspension and conventional support with loose tolerance; DIN976 is a precision-grade threaded stud for high-precision machinery and high-load structural connection with strict tolerance control. Distinguishing the two standards and selecting according to actual working conditions can effectively ensure engineering quality and optimize procurement costs.
9. FAQ
Q1: Can DIN975 replace DIN976 for mechanical assembly? A: Not recommended. DIN975 has large tolerance deviation and poor straightness, which cannot meet the precision matching requirements of mechanical equipment and is prone to assembly deviation and loose connection.
Q2: Are DIN975 and DIN976 thread pitches universal? A: The basic thread pitch specifications are universal, but the precision is different. DIN976 has higher thread uniformity and better locking smoothness.
Q3: Which one is more suitable for photovoltaic brackets and ceiling suspension? A: DIN975 is sufficient. Such light-load suspension scenarios do not require high-precision tolerance, and DIN975 has higher cost performance.
