1. Introduction

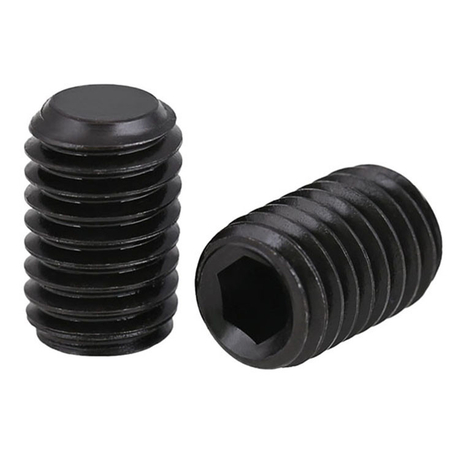

DIN913 flat point socket set screw is a core precision fastener widely adopted in European mechanical standards. Unlike cone-point or cup-point set screws that easily damage component surfaces, its flat contact end delivers uniform pressure distribution, enabling stable positioning without scratching or denting mating parts. This unique feature makes it the preferred choice for precision shaft fixing, sliding component limiting, and repeated adjustable assembly.
Commonly used for axial positioning of shafts, bearings, gears and sliding blocks, DIN913 set screws solve the industry pain points of surface damage and positioning deviation caused by traditional pointed set screws. We supply full-spec DIN913 flat point socket set screws in carbon steel and stainless steel grades, supporting precision mechanical assembly and industrial equipment adjustment scenarios.
2. DIN913 Flat Point Set Screw Core Structural Advantages
DIN913 strictly defines the flat-end design and inner hexagon driving structure, forming irreplaceable application advantages in precision assembly compared with other set screw types:
Non-damage flat contact surface: The fully flat end fits closely with the component plane or reserved flat groove, avoiding piercing, indentation and surface damage to precision shafts and soft materials
Uniform stress bearing: Surface contact instead of point contact disperses locking pressure, effectively preventing local stress concentration and component deformation
Repeatable adjustment: No permanent damage to the installation contact surface, suitable for frequent positioning correction, disassembly and debugging of mechanical parts
High alignment accuracy: Stable flat positioning ensures no offset after locking, improving the overall assembly precision of mechanical transmission structures
3. DIN913 VS Other Common Set Screws (Industry Distinction Guide)
Most assembly errors come from misusing different end-type set screws. The clear application difference is as follows:
DIN913 Flat Point: For precision positioning requiring surface protection, applicable to smooth shafts, soft alloy materials and adjustable components
DIN914 Cone Point: For one-time fixed positioning with reserved conical pits, easy to position but easy to damage smooth surfaces
DIN916 Cup Point: For high-torque anti-loosening occasions, relying on embedding to prevent loosening, but will cause obvious indentation on the shaft surface
For rotating machinery, precision instruments and repeatedly debugged equipment, DIN913 flat point version is the only compliant choice for surface protection and precision retention.
4. Main Application Scenarios
4.1 Precision Shaft & Transmission Positioning
Widely used for axial limit and circumferential fixing of motor shafts, gear shafts, bearing sleeves and coupling parts. The flat end ensures the smoothness of the shaft surface, does not affect the rotation balance of the equipment, and avoids vibration problems caused by shaft surface indentation.
Suitable for positioning limit and stroke adjustment of automation sliding tables, tooling fixtures and mechanical stoppers. It supports repeated disassembly and fine-tuning, with stable positioning accuracy and no cumulative deviation after multiple adjustments.
4.3 Soft Material & Thin Part Assembly
Ideal for aluminum alloy, brass, plastic and thin sheet metal components. The flat pressure design prevents material collapse and penetration, protecting the structural integrity of non-ferrous metal and plastic parts.
4.4 Instrument & Medical Precision Equipment
Used for fixing optical brackets, instrument adjusting seats and medical equipment components. No sharp contact damage ensures the flatness and precision of high-end equipment assembly surfaces.
5. Standard Assembly & Torque Control Guidelines
Reasonable torque control is the key to stable positioning of DIN913 set screws. Excessive torque will cause component extrusion deformation, while insufficient torque will lead to loose positioning and component displacement.
Pre-installation inspection: Keep the contact surface flat and clean, remove burrs and foreign objects to ensure full fitting of the flat end
Gradual torque locking: Adopt segmented locking operation to avoid one-time over-torque compression, so that the stress is evenly distributed on the contact plane
Torque matching by specification: Follow standard matching torque for different thread sizes to balance fastening strength and component protection
Anti-loosening auxiliary treatment: For long-term vibrating equipment, use professional thread glue for auxiliary anti-loosening to avoid positioning failure caused by micro-loosening
6. Common Installation Mistakes & Failure Analysis
Mistake 1: Using flat point screws on completely smooth round shafts Pure circular surface cannot form effective flat positioning, which is easy to slip and offset. It is recommended to machine flat limit grooves on the shaft body first.
Mistake 2: Excessive locking torque Over-torque causes local plastic deformation of the contact surface, resulting in inaccurate later adjustment and permanent damage to precision parts.
Mistake 3: Mixed use with pointed set screws Blind replacement reduces assembly accuracy, damages smooth shaft surfaces, and affects equipment operation stability.
Mistake 4: Ignoring vibration anti-loosening Long-term vibration working conditions without anti-loosening measures will lead to gradual retraction of set screws and positioning failure.
7. Material Grade & Surface Treatment Selection
7.1 Carbon Steel High-Strength Version
Main grades: 10.9 / 12.9 high-strength carbon steel, with high hardness and strong locking force. Suitable for heavy mechanical positioning, tooling fixture fixing and high-load limit scenarios. Surface treatments include black oxide, zinc plating and other conventional processes.
7.2 Stainless Steel Corrosion-Resistant Version
Main grades: A2-50 / A4-50 stainless steel, with excellent rust and corrosion resistance. Suitable for humid environment, outdoor equipment, food machinery, medical equipment and chemical industry auxiliary positioning scenarios.
8. FAQ
Q1: What is the biggest advantage of DIN913 flat point set screw? A: The flat end realizes surface contact positioning, which will not scratch or dent precision shafts and soft materials. It supports repeated disassembly and adjustment, and is the best choice for precision mechanical limit assembly.
Q2: Can DIN913 be used directly on smooth round shafts? A: Not recommended. For stable positioning, it is necessary to machine a flat groove on the shaft surface to provide effective clamping and limiting support.
Q3: What is the difference between DIN913 and DIN916 set screws? A: DIN913 flat point focuses on surface protection and precision adjustment; DIN916 cup point relies on embedding anti-loosening, which is suitable for fixed anti-loosening occasions but will damage the shaft surface.
Q4: Do flat point set screws need thread locking glue? A: Static positioning can be used alone; for dynamic vibration and long-term operating equipment, thread locking glue is recommended for auxiliary anti-loosening to ensure long-term positioning stability.
Q5: Can you provide full-spec DIN913 set screws with different materials? A: Yes. We provide complete specifications of DIN913 flat point socket set screws in high-strength carbon steel and stainless steel, supporting customized surface treatment and batch engineering supply.
