ASTM A193 B7 vs A193 B8 Stud Bolt Material Comparison

1. Introduction

ASTM A193 series stud bolts are core high-temperature and pressure-resistant fasteners widely used in petroleum, chemical, power plant, boiler and pipeline flange connection projects. ASTM A193 B7 and A193 B8 are the two most commonly specified grades. Many purchasers and mechanical engineers often confuse these two materials, resulting in wrong substitution, flange leakage, high-temperature creep deformation and equipment safety hazards.

Although both grades belong to the ASTM A193 standard system, they are completely different in material composition, mechanical strength, high-temperature resistance, corrosion resistance and applicable working conditions. B7 is alloy steel for high-temperature creep resistance, while B8 is stainless steel for anti-corrosion scenarios. This article systematically compares their performance parameters, application boundaries, matching nuts and industry selection rules to provide standardized procurement basis for high-pressure pipeline fastener matching.

2. Fundamental Material Difference

2.1 ASTM A193 B7 A193 B7 is quenched and tempered Cr-Mo alloy steel (4140/42CrMo). It is ferromagnetic, with ultra-high tensile strength, yield strength and excellent high-temperature creep resistance. It is designed for long-term high-temperature and high-pressure working conditions, but has poor resistance to acid, alkali and salt corrosion.

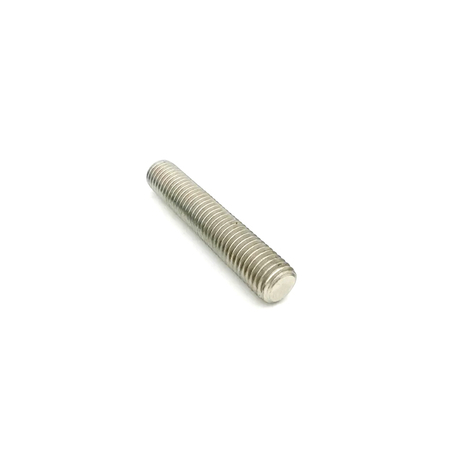

2.2 ASTM A193 B8 A193 B8 is 304 austenitic stainless steel, non-magnetic, with excellent atmospheric corrosion resistance and oxidation resistance. Its high-temperature creep stability and mechanical strength are lower than B7. It is mainly used for anti-corrosion pipelines and low-medium temperature equipment, not suitable for long-term heavy-load high-temperature creep environments.

3. Full Parameter Comparison Table (B7 VS B8)

This table covers core procurement parameters and engineering indicators, which is the key basis for fastener grade selection.

4. Working Condition Selection Rules

4.1 Priority to Choose A193 B7 All high-temperature and high-pressure equipment above 425℃, boiler flanges, thermal power units, high-pressure steam pipelines, long-term creep load equipment. B7 alloy steel maintains stable mechanical strength under continuous high temperature, avoiding bolt elongation, loosening and flange leakage.

4.2 Priority to Choose A193 B8 Normal temperature and medium-temperature corrosive environments, chemical pipelines, water treatment equipment, outdoor oxidation-prone equipment. B8 stainless steel effectively prevents rust and chemical corrosion, ensuring long-term stable connection in humid and corrosive working conditions.

5. Common Procurement Misunderstandings

Mistake 1: B8 stainless steel is better than B7 alloy steel Risk: Buyers blindly choose stainless steel for high-temperature boiler projects, resulting in creep deformation and flange failure. Solution: Corrosion resistance ≠ high-temperature resistance. B7 is mandatory for high-temperature creep scenarios.

Mistake 2: B7 and B8 can replace each other arbitrarily Risk: Using B7 in chemical corrosive environment causes rapid rusting; using B8 in high-temperature equipment causes strength failure. Solution: Strictly follow design temperature and medium environment for grade selection.

Mistake 3: Mismatched nut grade Risk: Unmatched bolt and nut strength leads to uneven stress and thread sliding under preload. Solution: B7 matches A194-2H/7; B8 matches A194-8/8M.

6. Conclusion

A193 B7 and A193 B8 stud bolts have their exclusive application scenarios. A193 B7 stud bolts feature high strength and high-temperature creep resistance, suitable for thermal power, boiler and high-pressure pipeline equipment. A193 B8 stainless steel stud bolts focus on anti-corrosion performance, suitable for chemical and corrosive medium pipelines. Engineering and procurement teams must select grades according to actual temperature and medium conditions to avoid safety risks caused by material mismatch.

7. FAQ

Q1: Can A193 B8 replace B7 for high-temperature boiler flanges? A: No. B8 has poor high-temperature creep resistance and is prone to permanent deformation under long-term high temperature, causing flange leakage.

Q2: Will A193 B7 rust in outdoor environment? A: Yes. B7 is alloy steel without anti-corrosion ability. It needs surface treatment or B8 stainless steel replacement for humid and outdoor corrosive scenarios.

Q3: Are matching nuts universal for B7 and B8? A: Not universal. Mixed use will cause strength mismatch and connection failure.
