1. Introduction

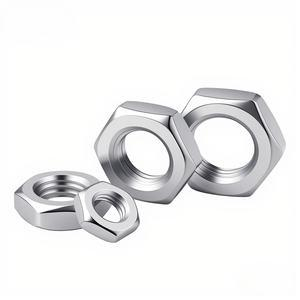

In industrial mechanical assembly, standard hex nuts are not adaptable to all working conditions. In compact equipment structures, thin-wall parts and limited installation gaps, ordinary thick hex nuts will cause assembly interference and cannot be locked in place. DIN439 thin hex nuts are professional thin-profile fasteners formulated according to German industrial standards, specially designed for space-limited and lightweight assembly scenarios.
Compared with conventional DIN934 standard nuts, DIN439 greatly reduces nut thickness while retaining standard thread precision and interchangeability. However, many buyers and on-site engineers lack clear understanding of its load limits and application boundaries, often misusing thin nuts for heavy-load connections, resulting in thread slipping, nut cracking and equipment loosening. This article comprehensively explains the structural features, size differences, applicable scenarios, selection standards and common mistakes of DIN439 thin nuts to provide standardized technical reference for industrial assembly and procurement.
2. Basic Overview & Structural Features of DIN439 Thin Nut
2.1 DIN439 Standard Classification The DIN439 standard covers two core series: DIN439-2 for metric coarse thread thin nuts and DIN439-1 for metric fine thread thin nuts. Both series adopt ultra-thin hexagonal structure, with thread parameters fully compliant with international metric standards, realizing universal interchangeability with standard metric bolts.
2.2 Unique Structural Advantages First, ultra-thin body design effectively saves assembly space and solves the interference problem of standard nuts in narrow gaps; second, complete tooth profile ensures stable thread matching and locking accuracy; third, lightweight structure reduces the overall weight of mechanical equipment, which is suitable for lightweight design requirements; fourth, diversified material and grade options, adapting to indoor, outdoor and corrosive working conditions.
3. DIN439 Thin Nut vs DIN934 Standard Nut: Full Parameter Comparison
The biggest difference between DIN439 and ordinary hex nuts lies in thickness and bearing capacity. The following comparison table intuitively reflects the essential differences for accurate selection.
Comparison Item | DIN439 Thin Hex Nut | DIN934 Standard Hex Nut |
Nut Thickness (Height) | Approx. 50% of standard nut height | 100% standard full thickness |
Thread Type | Coarse thread & Fine thread available | Mainly coarse thread |
Load Capacity | Light & medium static load | Medium & heavy main load |
Space Occupancy | Ultra-small, no structural interference | Large, not suitable for narrow gaps |
Application Position | Auxiliary locking, limit fixing, anti-loosening combination | Main bearing connection of equipment |
Weight Advantage | Lightweight, reduce equipment load | No lightweight advantage |
4. Typical Application Scenarios of DIN439 Thin Nuts
4.1 Narrow Gap Precision Assembly In precision instruments, electronic equipment and miniature mechanical structures, the installation gap is extremely limited. Standard thick nuts cannot be installed normally, while DIN439 thin nuts perfectly adapt to compact space and realize effective locking without structural extrusion.
4.2 Thin-Wall Component Locking Hydraulic valve bodies, cylinder parts and thin-plate structural parts are easily deformed by excessive locking height. The ultra-thin design of DIN439 avoids pressure deformation of thin-wall workpieces and ensures assembly flatness and stability.
4.3 Double-Nut Anti-Loosening Matching In low-vibration mechanical equipment, the combination of one standard nut and one DIN439 thin nut forms a reliable double-nut anti-loosening structure. It saves more space than double standard nuts and achieves excellent thread anti-loosening effect.
4.4 Equipment Positioning & Limiting For parts that only need positioning limit and do not bear main working load, DIN439 thin nuts are used for auxiliary fixing to avoid structural redundancy caused by over-thick standard nuts.
4.5 Lightweight Industrial Equipment Automotive parts, aerospace accessories and new energy equipment have strict requirements for overall weight. DIN439 thin nuts reduce the self-weight of connecting parts while meeting basic locking performance.
5. DIN439 Material, Grade & Surface Treatment Selection
5.1 Carbon Steel DIN439 Conventional grades include 4.8, 8.8 and 10.9, with electro-galvanized, hot-dip galvanized and black oxide finishes. Suitable for indoor mechanical equipment, ordinary atmospheric environment and static load working conditions, with high cost performance.
5.2 Stainless Steel DIN439 Adopt A2-70 (304) and A4-80 (316) stainless steel materials, featuring rust resistance, corrosion resistance and oxidation resistance. Ideal for outdoor exposure, marine environment, chemical moisture and other harsh working conditions.
6. Common Misuse & Safety Risks
Mistake 1: Using thin nuts for heavy-load main connections Risk: Insufficient wall thickness leads to thread tooth collapse, nut cracking and sudden connection failure under heavy load. Solution: DIN439 is only for auxiliary locking and light load; main bearing structures must use DIN934 standard thick nuts.
Mistake 2: Mixing coarse thread and fine thread specifications Risk: Mismatched thread pitch causes jamming, thread damage and assembly failure. Solution: Distinguish DIN439-1 (fine thread) and DIN439-2 (coarse thread) strictly according to bolt parameters.
Mistake 3: Excessive installation torque Risk: Thin nuts have low compression resistance; excessive torque will deform the nut body and destroy the thread. Solution: Appropriately reduce the locking torque compared with standard nuts to ensure uniform and moderate stress.
7. Conclusion
DIN439 thin hex nuts are indispensable auxiliary fasteners in modern compact mechanical assembly. They solve the space limitation problem of standard thick nuts and have unique advantages in lightweight equipment, thin-wall parts and limit locking scenarios. However, due to structural thickness limitations, they cannot replace standard nuts for heavy-load main connections. Scientific selection according to actual working conditions is the key to ensuring long-term stable operation of equipment connections.
8. FAQ
Q1: Can DIN439 thin nuts replace DIN934 nuts for main equipment fixing? A: No. DIN439 has limited thickness and bearing capacity, only suitable for auxiliary locking and light-load positioning. Heavy-load main structures must adopt standard thick hex nuts.
Q2: Are DIN439 threads interchangeable with standard metric bolts? A: Yes. DIN439 thread diameter and pitch fully comply with German industrial standards, which are completely universal with standard metric bolts.
Q3: Can DIN439 be used for strong vibration equipment anti-loosening? A: It can be used for double-nut auxiliary anti-loosening, but single thin nut cannot resist strong vibration. It is recommended to match with lock washers for enhanced stability.
