1. Locking Principle of Nyloc Nylon Insert Lock Nut
1.1 Structure and anti-loosening logic

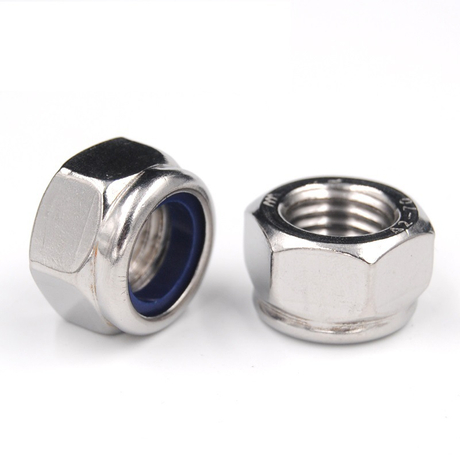

Standard Nyloc nuts (DIN985 / ISO7040) have a PA66 nylon ring embedded at the top of the hex body. When the bolt is screwed in, threads expand the nylon ring. The elastic recovery of nylon grips the bolt thread and creates steady prevailing torque. Friction between nylon and thread resists loosening caused by vibration, different from spring washers which rely on bolt preload. This design protects external threads from scratching during normal tightening.
1.2 Advantages and suitable room-temperature applications
For assemblies with continuous temperature below 120°C, such as general machinery, cabinet frames, conveyors and regular automotive parts, Nyloc nuts are cost-effective with stable vibration resistance and simple installation.
2. High-temperature Failure Mechanism: What Happens Above 120°C
2.1 Thermal property changes of nylon insert
The continuous service temperature limit for regular PA66 nylon inserts is 120°C. When operating temperature stays above 120°C, nylon gradually loses elasticity and softens. At 130°C to 140°C and above, permanent deformation and melting occur. The nylon insert no longer clamps threads, prevailing torque disappears completely, and the Nyloc nut functions just like a plain hex nut without any locking effect. Short intermittent temperature spikes slightly above 120°C may not cause immediate failure, but aging accelerates under cyclic high heat.
2.2 Typical field failure cases
Nyloc nuts used on heat exchange piping with medium temperature 145°C. Leakage occurred after two weeks of operation due to loose joints.
Nyloc nuts fitted on oven frames. Inspection found melted nylon inserts after continuous heating.
Nyloc nuts installed on exhaust brackets. Thermal radiation plus vibration caused gradual loosening and falling components.
Items | Standard Nyloc Nylon Insert Nut | All-Metal Prevailing Torque Lock Nut (Stover / Toplock) |
Locking medium | PA66 nylon ring | Deformed metal thread interference |
Max continuous temperature | ≤120°C | Above 260°C for high-temperature service |
Thread galling risk | Low, nylon works as buffer | Medium, high risk with stainless bolts |
Reassembly cycles | Locking torque drops after 3-5 times | Supports repeated maintenance disassembly |
Typical use | Room temperature, medium vibration, non-critical joints | Boiler, heat exchanger, exhaust, high-temp transmission equipment |
Cost | Economical | Higher |
4. Key Notes for Drawing and Purchasing
4.1 Parameters to confirm during inquiry
When receiving inquiries for lock nuts, confirm three core items first: continuous working temperature, vibration level and maintenance frequency. If the working temperature exceeds 120°C, inform the client that standard Nyloc is not suitable and recommend all-metal locking alternatives.
4.2 Common selection mistakes
Mistake 1: Clients assume all lock nuts resist high heat and specify Nyloc for hot equipment. Mistake 2: Only test samples under room temperature, ignoring extra heat from equipment temperature rise and thermal radiation. Mistake 3: Use modified high-temperature nylon Nyloc to replace all-metal lock nuts. Modified nylon still cannot serve long-term high-temperature conditions.
5. FAQ
Q1: Are there high-temperature nylon insert lock nuts? A: Modified nylon grades exist with better heat resistance than standard PA66, but they are still not equivalent to all-metal lock nuts and are not suitable for continuous service above 150°C.
Q2: Can I use Nyloc nuts if the working temperature stays between 110°C and 120°C? A: It is acceptable for non-safety joints. Temperature fluctuation must be evaluated and sufficient temperature margin is required.
Q3: Nyloc nuts are already ordered but client equipment runs over 120°C. What should we do? A: Notify the client of failure risk in advance and negotiate replacement with all-metal lock nuts to avoid safety incidents and claims after installation.
