ISO4014-ISO4017 Mixed Use: What Assembly Conditions Are Prohibited

1. Introduction

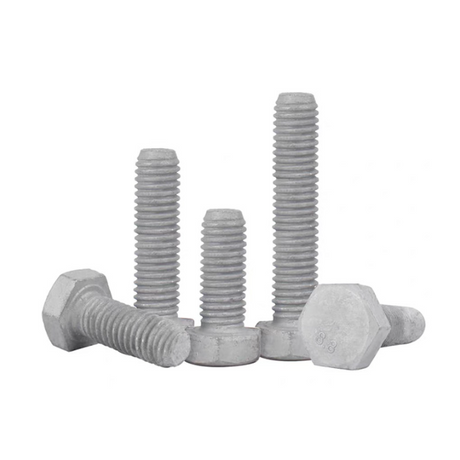

ISO4014 (partial-thread hex bolt) and ISO4017 (full-thread hex bolt) are the two most commonly used metric fasteners in global mechanical assembly, steel structure engineering, and equipment manufacturing. They share identical head size, thread pitch, strength grade, and mounting tools, which makes many engineers and purchasers mistakenly believe they are fully interchangeable.

In actual engineering practice, mixed use of ISO4014 and ISO4017 bolts on the same connection joint will lead to uneven stress, shear failure, and hidden structural safety hazards. Clarifying the prohibited mixed-use scenarios is essential for project qualification acceptance and long-term equipment safety. We supply standard ISO4014 half-thread bolts with complete specifications and strict standard compliance ISO4017 full-thread bolts. We also provide independent with full-size support to support standardized assembly for global industrial projects.

2. Core Structural Differences Between ISO4014 & ISO4017 Bolts

Although the two bolts look similar, their shank structure and mechanical load-bearing logic are completely different, which is the root cause of mixed-use risks.

Simply put: ISO4014 is designed for shear resistance, while ISO4017 is designed for tensile adjustment. Random mixing will destroy the unified stress system of the connection joint.

3. Strictly Prohibited ISO4014 & ISO4017 Mixed Assembly Scenarios

3.1 Shear Load Dominated Connection Joints (Absolute Prohibition)

For equipment base connections, flange shear surfaces, bracket support joints, and mechanical beam connections that mainly bear transverse shear force, mixed use of the two bolts is strictly prohibited.

The smooth shank of ISO4014 bolt has high shear strength and stable dimensional accuracy, which can resist transverse displacement. In contrast, the threaded part of ISO4017 bolt has uneven stress concentration and weak shear resistance. If mixed on the same joint, the full-thread bolt will first undergo shear deformation and fracture, causing overall joint failure and equipment collapse.

3.2 Vibration & Alternating Load Working Conditions

In automated equipment, transportation machinery, and wind power support structures with long-term vibration and alternating load, mixed use of ISO4014 and ISO4017 is not allowed.

Different shank structures lead to inconsistent anti-loosening performance and fatigue resistance. Full-thread bolts are more prone to thread loosening and fatigue cracks under cyclic vibration. Mixed assembly will cause inconsistent fastening pre-tightening force, resulting in gradual dislocation of the connected parts and severe equipment jitter.

3.3 High-Precision Positioning Assembly

Precision tooling, automation fixture positioning, and mechanical transmission connection joints require unified bolt specifications. The smooth rod of ISO4014 ensures precise hole clearance and positioning accuracy, while the full thread of ISO4017 leads to excessive assembly gap and positioning deviation. Mixed use will directly cause equipment assembly out of tolerance and affect product processing accuracy.

3.4 Structural Engineering & Steel Structure Standard Joints

Official steel structure project specifications clearly require that all bolts on the same stress surface must adopt the same standard and same structure. Mixed use of half-thread and full-thread bolts will fail project acceptance, and there are major potential safety hazards in long-term structural load-bearing.

4. Permissible Matching Scenarios (Reasonable Use, Not Mixed Abuse)

It is not that the two bolts cannot be used in one project, but they cannot be mixed on the same stress joint. Reasonable matching rules are as follows:

• Shear Main Joint: All unified ISO4014 half-thread bolts to ensure overall shear stability

• Tension Adjustment Joint: All unified ISO4017 full-thread bolts for flexible length adjustment and sufficient thread engagement

• Different Independent Joints: ISO4014 and ISO4017 can be used separately in different non-interfering connection positions of the same equipment

5. Common Engineering Losses Caused By Mixed Use

• Uneven force bearing: Full-thread bolts bear excessive shear force and break first

• Pre-tightening force inconsistency: Different bolt elongation leads to loose local fastening

• Vibration fatigue failure: Mixed structure accelerates thread loosening and crack generation

• Project unqualified acceptance: Non-standard assembly leads to engineering rework

6. Standard Assembly Specification Suggestions

To standardize on-site construction and procurement standards, follow the unified selection principle:

Unified standard for the same joint, differentiated standards for different working conditions.

Before project installation, confirm the load type of each connection point: use ISO4014 for shear resistance and ISO4017 for pure tensile adjustable connection. Our independently supplied full-spec ISO4014 bolts and ISO4017 standard bolts can meet unified supporting needs for various working conditions.

7. FAQ

Q1: Can ISO4014 and ISO4017 be used interchangeably? A: Not interchangeable on the same stress joint. They have different shear and tensile mechanical properties, and mixed use will cause safety hazards.

Q2: Why are full-thread bolts not suitable for shear surfaces? A: The thread groove leads to stress concentration, poor shear resistance, and easy deformation and fracture under transverse load.

Q3: Can the two bolts be used on the same equipment? A: Yes, but they must be used in different independent joints, not mixed on the same connection surface.

Q4: Which one is better for thick steel plate connection? A: ISO4014 half-thread bolt is preferred. The smooth shank provides stable shear resistance and higher connection safety.

Q5: Do you provide customized specification matching services? A: Yes. We supply full-spec standard ISO4014 bolts separatelyindependent full-spec ISO4017 bolt supply, with for mechanical and steel structure projects.
