DIN6923 Hex Flange Nut: Serrated And Non‑Serrated Version Difference

1. Introduction

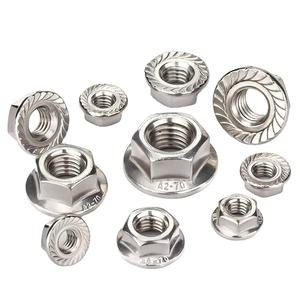

DIN6923 hex flange nuts are one-piece integrated fasteners combining a standard hex nut and a large flange washer. Different from ordinary DIN934 hex nuts, the integrated flange design eliminates the need for separate flat washers, effectively enlarging the compression area and dispersing fastening pressure on the workpiece surface.

In actual industrial procurement and assembly, DIN6923 is divided into two core versions: serrated flange nut and non-serrated flange nut. Many overseas buyers and mechanical engineers often confuse the two models, leading to insufficient anti-loosening performance, workpiece surface damage or unqualified assembly. This article systematically explains the structural features, working principles, scenario differences, selection standards and common installation mistakes of serrated and non-serrated DIN6923 flange nuts.

2. Basic Overview of DIN6923 Flange Nut

2.1 Standard Definition DIN6923 is a German industrial standard for hexagon flange nuts, featuring an integral thick flange at the bottom of the hex body. It is widely matched with DIN933 full-thread bolts, DIN931 half-thread bolts and various flange bolts for mechanical assembly, automotive engineering and equipment fixing.

2.2 Core Structural Advantages First, integrated flange structure saves assembly time and eliminates the trouble of mismatched loose washers; second, larger bearing area reduces surface pressure and avoids workpiece indentation; third, high structural integrity, strong compression and torsion resistance; fourth, two versions with/without serrations meet anti-loosening and smooth assembly demands respectively.

2.3 Common Material & Grade Conventional carbon steel grades: 8.8, 10.9; stainless steel grades: A2-70, A4-80. Surface treatments include electro-galvanizing, hot-dip galvanizing and black oxide, covering most industrial assembly scenarios.

3. Serrated vs Non-Serrated DIN6923: Structural & Performance Difference

The biggest difference between the two versions lies in the anti-loosening ability and surface adaptability. The following table clearly sorts out the core differences for accurate selection.

4. Suitable Working Scenarios for Each Version

4.1 Application of Serrated DIN6923 Flange Nut

The serrated structure forms a physical bite with the workpiece surface, providing reliable anti-loosening effect without additional spring washers. It is the preferred choice for dynamic and vibrating equipment. Typical scenarios include automotive chassis parts, engine peripheral fixing, motor bases, mechanical vibrating platforms, construction machinery accessories and outdoor dynamic equipment.

4.2 Application of Non-Serrated DIN6923 Flange Nut

The smooth flange surface will not damage paint, oxidation layer or precision surfaces. It is mainly used for static assembly with high surface protection requirements. Typical scenarios include precision instrument assembly, aluminum profile frame fixing, painted shell equipment, stainless steel workpiece connection, furniture machinery and static structural supports.

5. Standard Installation Rules & Matching Requirements

5.1 Bolt Matching Standard DIN6923 flange nuts are compatible with standard metric bolts, including DIN933 full-thread bolts and DIN931 half-thread bolts. The thread tolerance is 6H, which is fully interchangeable with conventional 6g metric bolts.

5.2 Auxiliary Accessory Matching Serrated flange nuts do not need spring washers independently; non-serrated versions can be matched with flat washers or spring washers according to vibration conditions to enhance stability.

5.3 Tightening Torque Requirements Due to the large flange bearing area, the tightening torque can be appropriately increased compared with ordinary hex nuts, ensuring uniform stress without local crushing of the workpiece.

6. Common Selection & Installation Mistakes

Mistake 1: Using serrated nuts on precision painted surfaces Risk: The bottom serrations scratch the paint and precision surface, causing workpiece appearance damage and even corrosion hidden dangers. Solution: Replace with non-serrated smooth flange nuts for surface-sensitive assembly.

Mistake 2: Using non-serrated nuts for strong vibration equipment Risk: Lack of physical anti-loosening structure, easy to loosen and fail under long-term alternating vibration. Solution: Must use serrated DIN6923 nuts for dynamic vibrating working conditions.

Mistake 3: Repeated disassembly and reuse of serrated flange nuts Risk: The serrations are worn and flattened after multiple disassembly, losing anti-slip bite ability and greatly reducing anti-loosening performance. Solution: Serrated nuts are suitable for one-time or few-time assembly; replace new nuts after severe wear.

Mistake 4: Adding extra flat washers blindly Risk: Excess washers isolate the serrated bite surface, completely offsetting the anti-loosening advantage of serrated nuts. Solution: Do not add gaskets when using serrated flange nuts.

7. Conclusion

DIN6923 hex flange nuts are efficient integrated fasteners that simplify assembly procedures and improve connection stability. The serrated version focuses on anti-vibration and anti-loosening for dynamic equipment, while the non-serrated version focuses on surface protection and reusable static assembly. Distinguishing the two versions and selecting according to actual working conditions is the key to avoiding assembly failure and workpiece damage.

8. FAQ

Q1: Can serrated and non-serrated DIN6923 be used interchangeably? A: Not recommended. Serrated nuts will damage precision surfaces, while non-serrated nuts cannot resist strong vibration. Wrong interchange will cause hidden dangers of loosening or surface defects.

Q2: Do DIN6923 flange nuts need spring washers? A: Serrated flange nuts do not need spring washers, the serrations provide physical anti-loosening. Non-serrated versions can be equipped with spring washers for auxiliary anti-loosening in slightly vibrating scenarios.

Q3: Are DIN6923 flange nuts stronger than ordinary DIN934 nuts? A: The material strength grade is consistent, but the integral flange has larger compression area, better pressure resistance and more stable locking effect than ordinary hex nuts.
