DIN127 Spring Washer: When It Works And When It Fails Anti-Loosening

1. Introduction

DIN127 spring washers are one of the most widely used anti-loosening fastener accessories in industrial assembly. With simple structure, low cost and convenient installation, they are matched with hex bolts and nuts for locking and anti-vibration purposes in various mechanical equipment. Most engineers and procurement personnel regard DIN127 spring washers as universal anti-loosening parts and install them in all scenarios indiscriminately.

In fact, DIN127 spring washers have obvious application limitations. They perform well in low-vibration, static load and conventional atmospheric environments, but are extremely prone to anti-loosening failure under strong vibration, impact load and high-temperature cycling conditions. Blind installation will lead to bolt loosening, equipment vibration and even connection failure. This article systematically analyzes the working principle, effective application scenarios, failure causes and standardized matching rules of DIN127 spring washers, providing accurate selection guidance for industrial assembly.

2. Working Principle of DIN127 Spring Washer

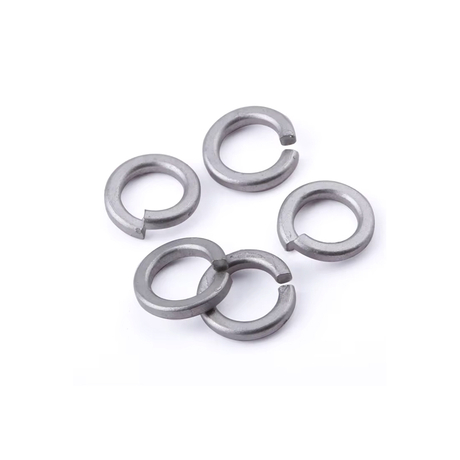

DIN127 spring washer is a kind of open elastic washer with taper deformation function. Its anti-loosening principle is divided into two core mechanisms:

2.1 Elastic Preload Compensation After the bolt is tightened, the compressed spring washer generates continuous elastic restoring force, which fills the thread gap caused by thermal expansion and contraction or stress relaxation, and keeps the bolt preload stable.

2.2 Friction & Bite Anti-Loosening The open incision of DIN127 forms sharp bite edges. After compression and flattening, the upper and lower end surfaces closely fit the nut and the base surface, increasing assembly friction and preventing thread reverse rotation and loosening.

2.3 Structural Features Standard DIN127 is divided into Type A (regular elasticity) and Type B (strengthened elasticity), with uniform elastic hardness, strong reset ability, and good adaptability to conventional bolt assembly gaps.

3. Valid Working Scenarios Where DIN127 Spring Washers Work Perfectly

DIN127 spring washers can achieve stable anti-loosening effect only in the following standard working conditions:

3.1 Static Load & Low-Vibration Equipment Conventional mechanical frames, fixed supports, cabinet assembly and non-moving structural parts with slight vibration. The elastic compensation of DIN127 can effectively offset minor preload loss and maintain long-term locking stability.

3.2 Normal Temperature Atmospheric Environment Indoor equipment, general industrial atmosphere, non-corrosive and non-high-temperature scenarios. The steel elasticity of DIN127 will not decay, and the anti-loosening performance is stable and reliable.

3.3 Low-Torque Conventional Bolt Connection Matching 4.8级、8.8级 ordinary bolts and stainless steel standard bolts for medium and low preload assembly. It is the most cost-effective anti-loosening solution for general assembly.

3.4 Auxiliary Anti-Loosening Matching Used with flat washers in conventional assembly to optimize stress dispersion and assist in preventing thread loosening caused by minor external interference.

4. Typical Scenarios Where DIN127 Spring Washers Fail Easily

Many on-site anti-loosening failures are caused by misusing DIN127 in extreme working conditions. Its failure boundaries are very clear:

4.1 Strong Vibration & Impact Load Equipment Vibration machinery, motor bases, reciprocating motion equipment and mining machinery. Long-term alternating vibration will cause the elastic fatigue of DIN127, resulting in permanent failure of elasticity and complete loss of anti-loosening ability.

4.2 High-Temperature Thermal Cycling Environment Boiler peripheral accessories, high-temperature pipeline supports, thermal cycle equipment. High temperature leads to elastic attenuation and stress relaxation of spring steel, making the washer unable to compensate bolt preload, finally causing bolt loosening.

4.3 Heavy-Load High-Preload Bolt Connection 10.9 and 12.9 high-strength bolts with large tightening torque. The spring washer is completely flattened and loses elastic deformation space, resulting in zero anti-loosening effect.

4.4 Corrosive Humid Environment Outdoor uncoated, marine and chemical humid environments. DIN127 ordinary steel washers are prone to rust and corrosion, elastic structure damage, and accelerated anti-loosening failure.

5. DIN127 Type A vs Type B Parameter & Performance Comparison

DIN127 standard includes two types, and the selection needs to match the bolt grade and load conditions.

6. Standard Installation Rules & Common Mistakes

6.1 Correct Installation Matching Flat washer + DIN127 spring washer + nut sequence. The flat washer protects the workpiece surface, and the spring washer provides elastic anti-loosening, realizing double protection.

6.2 Common Wrong Operations First, install the spring washer reversely, resulting in insufficient biting force and reduced anti-loosening effect; second, use multiple spring washers in superposition, which is easy to cause excessive stress and washer fracture; third, match high-strength bolts blindly, resulting in complete flattening and failure.

7. Replacement Solution For DIN127 Failure Scenarios

For working conditions where DIN127 is invalid, replace with professional anti-loosening accessories:

1. Strong vibration equipment: replace with DIN980V self-locking nuts or serrated lock washers;

2. High-temperature equipment: use high-temperature alloy elastic washers or special anti-loosening bolts;

3. Heavy-load high-preload connection: abandon spring washers and adopt integral locking structural fasteners.

8. Conclusion

DIN127 spring washers are cost-effective and reliable anti-loosening accessories for conventional static and low-vibration industrial assembly. However, they are not universal anti-loosening parts. Under strong vibration, high temperature, heavy load and corrosion conditions, DIN127 will suffer elastic fatigue and complete failure. Engineers must select anti-loosening schemes according to actual working conditions to avoid hidden dangers of equipment loosening caused by blind matching.

9. FAQ

Q1: Is it necessary to add DIN127 spring washer for every bolt connection? A: No. It is not required for static non-vibration and heavy-load high-preload connections. Blind installation will not improve safety but may affect assembly stability.

Q2: Why does DIN127 fail quickly on vibrating machines? A: Long-term alternating vibration causes elastic fatigue and permanent deformation of the spring steel, so the washer completely loses elastic compensation and anti-loosening ability.

Q3: What is the difference between Type A and Type B of DIN127? A: Type B has higher elastic strength and compression resistance, suitable for medium vibration and higher-grade bolt assembly, while Type A is for general conventional assembly.
